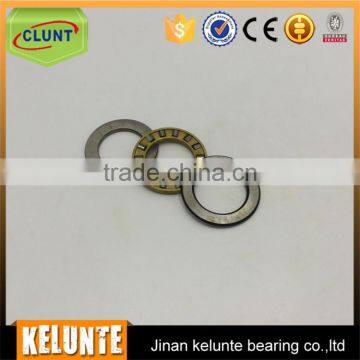

AXK series One-way fool-proof assembly thrust needle bearing AXK1024

needle roller thrust bearings are fitted with a form-stable cage to reliably guide and retain a large number of needle rollers.The diameter deviations of the rollers within one assembly are within 2 µm, enabling these bearings to accommodate heavy axial loads and shock loads.These bearings provide a high degree of stiffness within a minimum axial space.In applications where the faces of adjacent machine components can serve as raceways,needle roller thrust bearings will take up no more space than a conventional thrust washer.They can accommodate axial loads acting in one direction only.  needle roller thrust bearings in two designs:

• needle roller and cage thrust assemblies, AXK series

• needle roller thrust bearings with a centring spigot, AXW series

Specifications of  bearing AXK1024

Design Attributes

• Dimensions for bore and O.D. of thrust assemblies and washers are nominal.
• Thrust washers burnished at least one quarter of bore area (remainder is rough breakaway finish).
• O.D. finish of washers will be as blanked.
• Thinner washers may be out of flat due to distortion in hardening in the free state (expected to flatten out under load).

 Applications

• Automotive automatic and manual transmissions
• Automotive accessories (compressors, steering gears, etc.)
• Agricultural equipment
• Construction equipment

 Expanded Options

• One-way fool-proof assembly features
• Anti-rotation locking features
• Lubrication flow enhancements
• Model numbers of thrust needle roller bearing

• Part Number	d Bore	D Outside Dia.	S Width	Maximum Speed (rpm)	Load Rating N		Weight g
  				Oil	Dynamic	Static
  AXK0619TN*	6	19	2	16000	6740	15400	1
  AXK0821TN*	8	21	2	15000	7750	19000	2
  AXK1024	10	24	2	14000	9150	24500	3
  AXK1226	12	26	2	16000	9860	28600	3
  AXK1528	15	28	2	11000	11200	35500	4
  AXK1730	17	30	2	10000	11800	38600	4
  AXK2035	20	35	2	8500	12900	45600	5
  AXK2542	25	42	2	7000	13800	57800	7
  AXK3047	30	47	2	6000	15600	69500	8
  AXK3552	35	52	2	5500	16900	80100	10
  AXK4060	40	60	3	4700	27500	113500	16
  AXK4565	45	65	3	4300	29050	127600	18
  AXK5070	50	70	3	3900	31500	13800	20
  AXK5578	55	78	3	3500	37400	185000	28
  AXK6085	60	85	3	3200	43900	232500	33
  AXK6590	65	90	3	3000	45800	254600	35
  AXK7095	70	95	4	2900	53600	254400	60
  AXK75100	75	100	4	2700	54500	264600	61
  AXK80105	80	105	4	2600	55600	278500	63
  AXK85110	85	110	4	2400	57500	28800	67
  AXK90120	90	120	4	2300	72500	401000	86
  AXK100135	100	135	4	2000	90500	559500	104
