Japan Original THK Linear Bearing Shaft 6mm SK6

Linear Bearing Shaft SK6

Brif introductions of shaft supporting housing

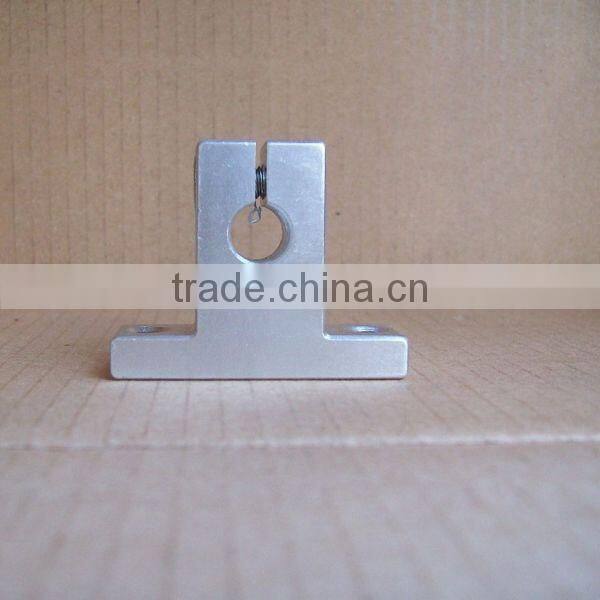

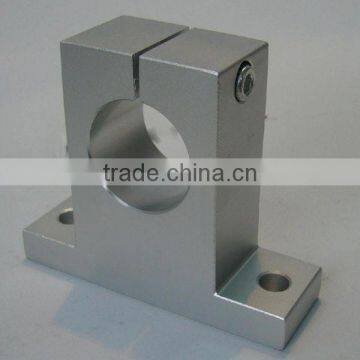

Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern.  Unlike shaft support rails, blocks do not permit longitudinal passage of open-type ball bushing bearings.  Shaft support blocks enable clamping of shafts, type SB and eliminate the need for bolts to maintain shaft position.  Shimming is suggested for high precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.

Linear bearings

Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. With rotation of ball with a quite slight friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine,numeralization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.

Specifications of Linear Bearing Shaft SK6

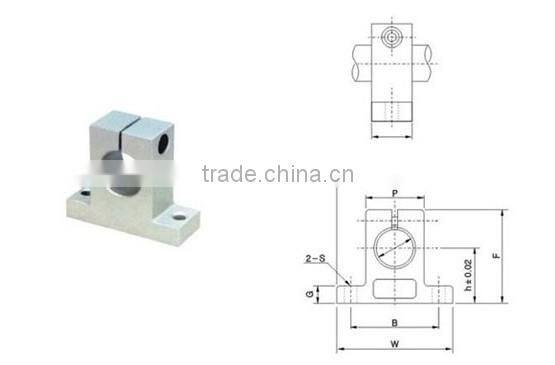

Drawing of shaft supporting housing

Features of Linear Bearing Shaft SK6

• Precision CNC machined

• Hex type bolt for clamping the shaft


• Silver brushed aluminum finish


• Perfect for your DIY CNC routers, mills, lathes
• For 12mm shafts
• Suits X, Y or Z axis
• No more trying to figure out how to mount your shafts!
• Item located in Melbourne so fast shipping!

• Also available in 10mm, 12mm, 16mm, 20mm and 25mm
• Please see my other listings for matching 12mm hardened shaft
• Generally you will need to purchase 2 (one for each end)

• Brand new!
• Please check out my other CNC items & we do provide combined shipping!

About Products

Model numbers shaft support housing
