YTO brand model X804 4 wheel drive tractor for sale

FOB Price

USD $15,200 - $18,500 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.YTO brand tractor
2.Transmission system using Italian technology
3.Top speed is more than 35km/h
4.LxWxH 4.35x2.17x2.74m

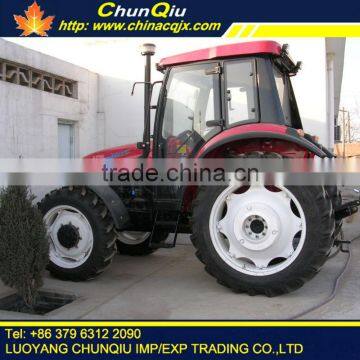

YTO brand model X804 4 wheel drive tractor for sale

Main Features:

1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission .

2.The transmission system is made on the basis of Italian technology .The top speed can be more than 35km/h.

3.The full hydraulic steering system is utilized for easy operation.

4.High safety ensured due to the use of the wet disc brake.

5.Optional new can is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.

6.In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30KN).

7.Our wheel tractor adopts double action clutch. German LUK clutch is available for your choice.

Main technological parameters:

Model	YTO-X804
Tractor
Drive type	4x4
Overall dimensions (LxWxH)(mm)	4350x2170x2740
Wheelbase(mm)	2314
Min. ground clearance (mm)	430
Min.operating mass (with safety stand)(Kg)	3675
Tyre spec, front/rear	11.2-28/13.6-38
Wheel tread, front/rear	1630-1960/1500-2100
Steering	Full hydraulic
Brake	Oil immersed, disc type
Diesel engine
Model	LR4B5-23
Type	Four cylinder,vertical,water cooled,four stroke,direct injection combustion
Displacement(L)	4.59
Rated power/speed (Kw)(r/min)	58.8/2300
Max. torque (N.m)/speed(r/min)	270/1500-1700
Bore x stroke(mm)	108x125
Transmission
Gear shift, forward/backward	12/4
Speed range(Km/h), forward/backward	1.63-26.82/4.23-12.69
PTO power(Kw)	50
PTO rotation speed(r/min)	540/720 or 540/1000
Clutch	11-inch,dry,double action
Implement
Three-point linkage category	three-point linkage category II
Tilling depth control mode	Combined draft,position control and floating control
Lifting force(KN)	16
Options
OECD anti-turnover bar	OECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear	12+12
Transmission with creeper gear	24+8
Hydraulic output	2 or 3 group
