Original brand new China motor grader for sale

Specifications

Original brand new China motor grader for sale

Thanks for your attention for our products, we, Luoyang Chunqiu IMP & EXP Trading Co.,Ltd. Mainly deal with engineering machine and parts.

We have motor graders 125kw, 132kw, 140kw, 158kw, with cummins or shangchai engine, operating mass 11ton, 15ton, 16ton, 16.9ton, front dozer blade and rear ripper are optional.

1.machine designated area

2.parts warehouse

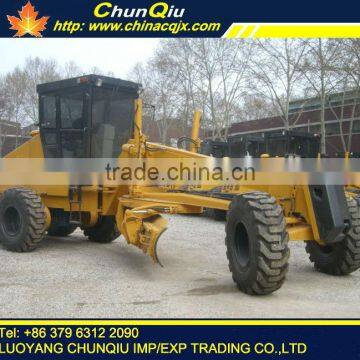

1.motor grader photos

2.Cabin detail

3.Disassembe photos

4.Packing photos

PY220C/180D/180C/165C/135C Self-propelled articulated motor grader

Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.

Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting, Patent hydraulically-operated pin drawing device is designed firstly in board.
Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
Dual diagonal appearance with whole metal hood 1m*1m distance.
Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
It is optional for front bulldozing plate and rear ripper.

Technical Parameters:

PY220C-2/180D-2/180C-2/165C-2 Self-propelled articulated motor grader

Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Main components such as diesel engine, hydraulic pumps, multiply control valve, dividing valve and differentials are made from international advanced companies.
Whole engine hood and spacious operator's cab for good visibility within 1m×1m distance, ease to maintain and operate.
Torque converter and power-shift gearbox is operated electro-hydraulically, all the instruments and warning lights are indicated
on the liquid-crystal screen digitally with flexible and light operations.
Steering system with center articulated joint and tilt-able front wheels, together with oscillating balance case enhance the maneuverability of machine.
Braking system with single-circuit accumulator brake control, caliper disc brake and mechanical parking brake for more safety and reliability.
