Home > Products > excavator > Chinese imported components WY6-3 mini hydraulic excavator for sale with 5.8 ton

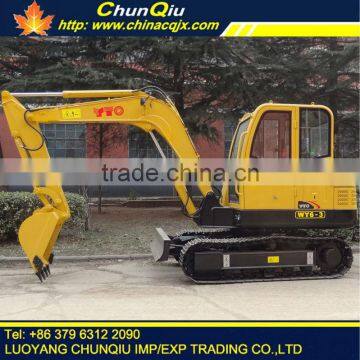

Chinese imported components WY6-3 mini hydraulic excavator for sale with 5.8 ton

FOB Price

US$ 42,900 - 45,500 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	YTO
Model Number	WY6-3	Condition	New
Moving Type	Crawler Excavator	Operating Weight	5800kg
Bucket capacity	0.22m3	Maximum Digging Height	5515mm
Maximum Digging Depth	3820mm	Machine Weight	5700kg
Max Digging Radius	6150mm	Rated Speed	2200r/min

Product Description

Specifications

1.Original YANMAR engine
2.Hydraulic pilot valve system
3.Suitable for operation in the narrow
4.Turning around 360 angle

Chinese imported components WY6-3 mini hydraulic excavator for sale with 5.8 ton

Main Features:

1.The original imported engine is used, featured in low fuel consumption and low noise and also it can reach the standard of Euro II.

2. The variable and operable hydraulic system is applied as it features advanced technology and high reliability.

3. With excellent outline, full enclosed, large-vision, the cab is equipped with air conditioning (for cooling/heating ) and sound equipment

4. Many kinds of monitor display and function-control system are centralized in the intellectualized minitype control-panel.

5. With the advantages of lightly and conveniently operating, accurate control, the hydraulic pilot valve system can achieve the elaborate work.

6. Holding the core concept of “excellent performance for high efficiency operation” , the excavator is suitable for the operation in the narrow place for its small volume and turning around 360 angle.

Product Parameters:

Model	unit	WY6-3
Operating weight	kg	5800
Bucket capacity	m3	0.22
Length/width/height	mm	5950×1920×2620
Engine model		YANMAR 4TNV98-SSU
Rated power/speed	kW/r/min	43.4/2200
Fuel consumption	g/kw.h	≤247
Fuel tank capacity	L	90
Rated flow	L/min	170
Implementation circuit	Mpa	22
Swing speed	r/min	0-10
Bucket digging force	kN	40
Arm digging force	kN	25
Max.traction force	kN	58.5
Traveling speed	km/h	0-2.3/0-4.4
Gradeability	°	30
Ground pressure	kPa	33
max.digging radius	mm	6150
max.digging height	mm	5515
max.dumping height	mm	3730
max.digging depth	mm	3820
overall length	mm	5950
crawler length	mm	2590
Wheelbase	mm	1990
counter weight ground clearance	mm	740
overall height	mm	2620
tail turning radius	mm	1650
roof width	mm	1850
crawler height	mm	645
min.ground clearance	mm	325
crawler width	mm	400
Crawler gauge	mm	1520
chassis width	mm	1920
earth-moving shovel(width/height)	mm	1920×320
