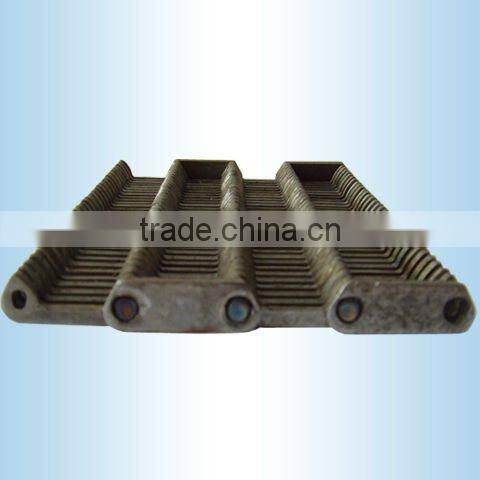

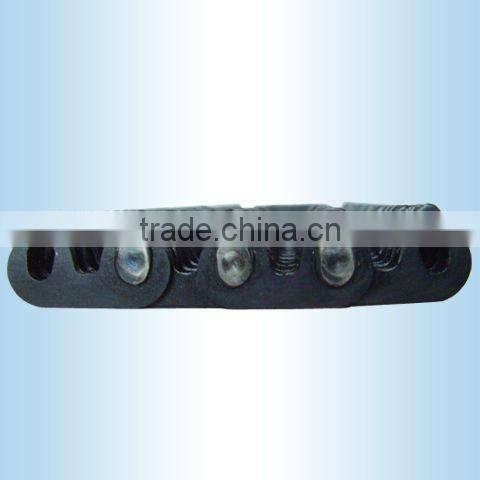

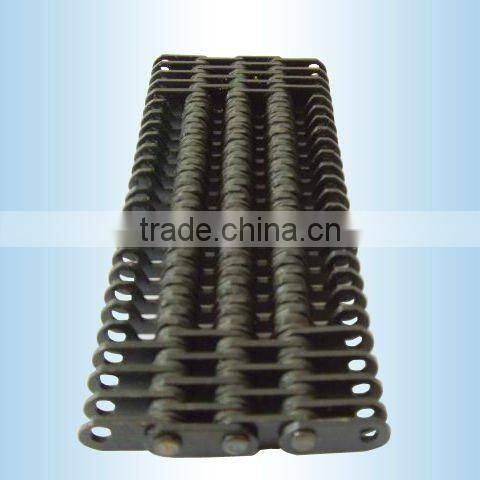

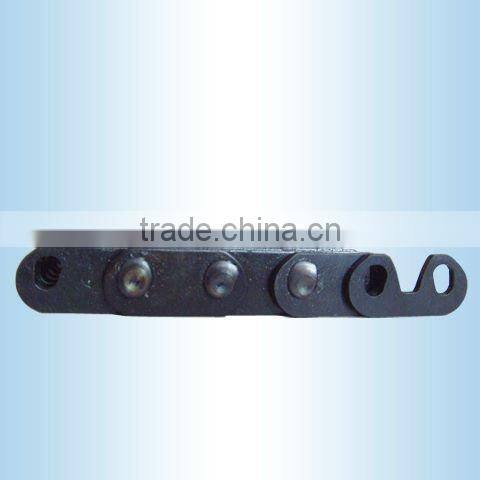

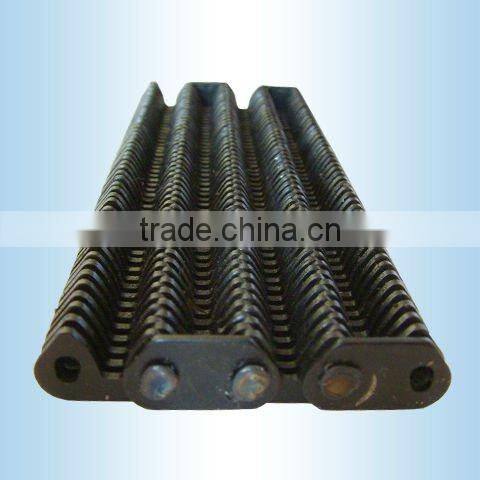

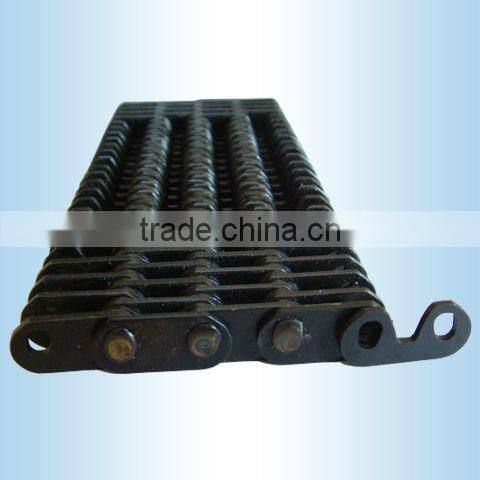

Voiceless Sprocket Conveyor Chain
- Tianjin or Any other port China
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Other, steel 45# | Material Feature | Fire Resistant | |
| Structure | Chain Conveyor | Load Capacity | xxx | |
| Place of Origin | Shandong, China | Brand Name | evergreen | |
| Model Number | 12.7mm | After-sales Service Provided | No overseas service provided |
Product Description
Our factory located in the biggest base of chain manufacturing in China.Silent chain is one of our main products.
We produce high quality series Silent chain,middle guide,side guide,round pin,trigonal pin,double pins
Pitch: from 6.35mm - 31.750mm, cl06 (9.525mm), cl08 (12.7mm), cl10 (15.875mm), cl16 (25.4mm), cl20 (31.75mm)...
we also can produce it according to your order.
Remark:CL10:
pitch=15.875mm,pin diameter: 5.92mm,distance from hole center to tooth: 8.7mm,
plate depth: 16.7mm,plate thickness: 2.0mm,number of plates: 15,19,23...
guide type: middle guide,side guide
Packing: Solid cardboard box and container
EXTEND PITCH CHAIN
It’s one type of lightweight and long-lasting chain which also be used on 1/2’’ sprocket.Joins fewer links per metter,it’s also less susceptible to joint fouling and wear.Link thickness2.25mm.

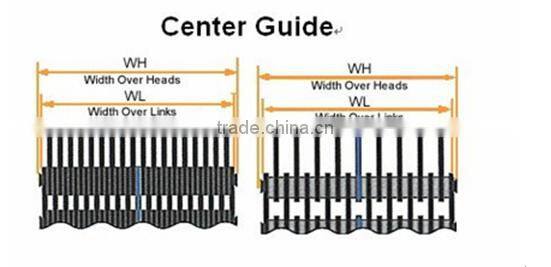

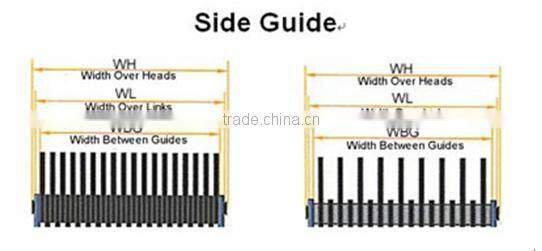

Assembly Number | Nominal Width | WH (Max) | WL (Min) | WBG (Min) | Sprocket Width | Weight KG/M |
SL100 | 100.0 | 102.20 | 105.90 | 99.20 | 97.70 | 3.8 |
SL125 | 125.0 | 128.70 | 132.40 | 125.70 | 124.20 | 4.7 |
SL140 | 140.0 | 138.70 | 142.40 | 135.70 | 134.20 | 5.1 |
SL150 | 150.0 | 152.80 | 156.50 | 149.80 | 148.30 | 5.6 |
SL200 | 200.0 | 196.90 | 201.80 | 194.50 | 193.00 | 7.1 |
SL300 | 300.0 | 303.30 | 307.00 | 300.30 | 298.80 | 11.0 |
Assembly Number | Nominal Width | WH (Max) | WL (Min) | Sprocket Width | Weight KG/M |
SL025 | 25.0 | 23.60 | 28.20 | 19.00 | 1.0 |
CL025 | 25.0 | 25.40 | 27.90 | 25.40 | 1.0 |
SL038 | 38.0 | 38.90 | 42.40 | 34.30 | 1.3 |
CL038 | 38.0 | 34.80 | 37.30 | 38.10 | 1.3 |
SL050 | 50.0 | 48.30 | 51.80 | 43.70 | 1.9 |
CL050 | 50.0 | 49.00 | 51.60 | 50.80 | 1.9 |
CL075 | 75.0 | 77.70 | 80.30 | 76.20 | 3.0 |
SL075 | 75.0 | 76.70 | 80.30 | 72.10 | 3.0 |
CL100 | 100.0 | 92.00 | 95.70 | 100.00 | 3.3 |
CL125 | 125.0 | 123.00 | 126.60 | 125.00 | 4.4 |
CL140 | 140.0 | 134.90 | 138.50 | 140.00 | 4.8 |
CL150 | 150.0 | 146.80 | 150.40 | 150.00 | 5.2 |
CL200 | 200.0 | 196.10 | 199.30 | 200.00 | 7.1 |
CL300 | 300.0 | 300.60 | 304.30 | 300.00 | 10.7 |
