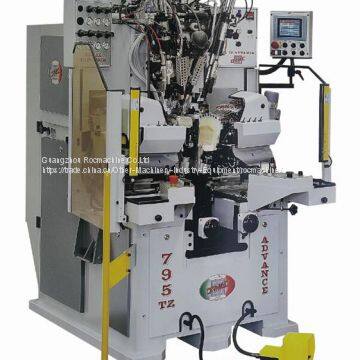

795TZ ADVANCE Heel seat and ball/waist area Lasting machine

1、Heel seat, side and ball / waist area lasting by rod hot melt cement with automatic heel seat tacking

2、Colour multilingual touch screen with 100 available program

3、Hydraulic noiseless tacking ，Work possibility up to 26 tacks in the heel seat

4、Tacking of the heel seat with inclined drivers for perfect riveting of the tacks

5、Tack pot arranged for the use of 2 different lengths of tacks

6、 In/out adjustable tacking position

7、Pair of pincers with independent vertical draft

8、Exclusive additional pair of pincers with independent draft(*)

9、Last post outward movement with blocked shoe

10、Last post with special flexing for delicate uppers

11、Last post with adjustable ring nut

12、Last post for special lasts (*)

13、Adjustable heel band pressure

14、Adjustable wipers speed and position,Wipers with adjustable temperature

15、Pads to lock the upper

16、Automatic side inclination

17、Side height with independent motorized  adjustments (*)

18、Workin 2 phases

19 、Automatic cycle starting

20、Adjustable nozzles run

21、Soft positioner

22、Side lasting groups up to 8 elements, 2 pairs of  pincers with independent vertical draft . (*)

23、Safety protections with photoelectric barriers CE(*)

24、Work with four-layer of side pad,for perfect work on the side group
