ST/FC/SC/LC/APC Optical Fiber Jumper Cables
- 20000 Set / Sets per Month
- Shanghai/ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NOFIA | |
| Model Number | LC/FC/ST/SC/APC, Patch Cord LC-LC/SC-SC/FC/SC |
Product Description
A. EXW,FOB,CIF AND OTHER NORMAL INTERNATIONAL TRADE RULE ARE ACCEPTED!
B. D/P,L/C,T/T AND OTHER NORMAL TYPE OF PAYMENT,IF THE ORDER TOTAL ACCOUNT LOWER THAN $1,000.00,WE CAN ACCEPT PAYMENT BY PAYPAL,WESTERN UNION,MONEYGRAM AND OTHER QUICK PAYMENT.
C. ON LINE FOR 24HOURS SERVICES.
D. ALL GOODS FROM OUR FACTORY WILL BE GURANTEED

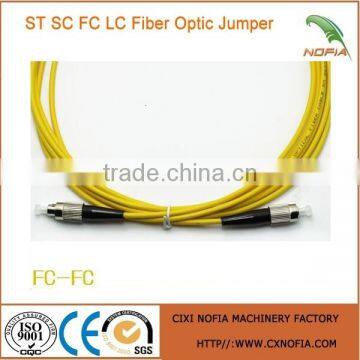

ST/FC/SC/LC/APC Optical Fiber Jumper Cables
ST/FC/SC/LC/APC Optical Fiber Jumper Cables
APPLICATIONS
* CATV
* Telecommunication networks
* Active device termination
* Metro
* Local Area Networks (LANs)
* Data processing networks
* Test equipment
* Premise installations
* Wide Area Networks (WANs)
FEATURES
* Low insertion loss and back reflection loss
* Good exchangeability
* Good Durability
* High temperature stability
SPECIFICATIONS
AVAILABILITY
* Simplex/Duplex patch-cord available
* Fan-out available
* Pigtail available
* Various boot (cable) sizes available
TECHNICAL SPECIFICATION FOR PATCN CORDS AND PIGTAIL:
| Single mode | Multimode |
Insertion Loss | ≤0.20dB | ≤0.25dB |
Return Loss | ≥50 dB (PC) ≥65 dB (APC) |
|
Repeatability | ≤0.1 |
|
Durability | ≤0.2 dB typical change, 1000 matings |
|
Interchangeability | ≤0.2dB |
|
Tensile strength | >10kg |
|
Operating Temperature | -40 to + 85°C | -40 to + 85°C |
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
| TIA/EIA-455-107 | ≥55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
MORE TYPES OF FIBER JUMPER:
SINGLE MODE
MULTIPLE MODE
Packing
One piece per poly bag , ten pieces per big poly bag, then packed in the Neutral carton box.
Or we also could make the packing as customers' required one.
Shipping
- Door to Door: by express (such as DHL, UPS, TNT, FedEx, Aramex etc.)
- Airport to Airport: by air
- Sea port to Sea port: by sea ( Our port is normally Shanghai/Ningbo)
