692127 Chain 692127 Chain 692127 Chain 692127 Agriculture Chain

A,   EXW, FOB, CIF and other normal international trade   rule are accepted !

B.    D/P, L/C, T/T and other normal type of payment,   IF the order total account low than $1,000.00,

 we can accept payment by Paypal, Western Union, Moneygram and other quick payment.

C   ,ON LINE FOR 24 HOURS SERVICES

D.   ALL GOODS FROM OUR FACTORY WILL BE GURANTEED

Briefly introductions:

we are one professional chain factory ,producing both standard roller chains and nonstandard chains. Major product  :A and B series roller chain,  S and C type roller chains
straight sideroller chain,H series of roller chain, conveyor chain , etc.Comply with the standard of ANSI,ISO,DIN,BSetc.and also with different attachment. Quality can be guaranteed!

WELCOME TO INQUIRY!

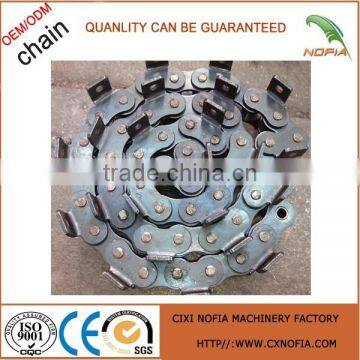

692127 Chain 692127 Chain 692127 Chain 692127 agricultural chain

BASIC INFORMATION :

Pitch: 38.4mm

Pin Diameter: 8.28mm

Roller DIameter: 15.88mm

Plate thickness: 3mm

VBSD hole diameter: 8.4mm

Center hole distance: 52mm

VBSD attachments distance as out side: 71mm

Material and hardness:

Inner and Out plate: 40Mn,  Quenching treatment: HRC40--48

Left and Right SD attachments: 40Mn  Quenching treatment: HRC 38~44

Bush: 10# or 20# Carbon-Nitriding treatment:  HRA76~79

Roller: 20#   Carbon-Nitrnding treatment: HRA70-76

Pin: 30CrMnTi / 20CrMnMo   Carbon-Nitriding treatment:  HRA>=7

Specifications:

LET ‘S  SEE OUR WHOLE PROCEDULE LINE

A,Production procedule

B, Test Facilites:

Warehouse &Packages:

1pc /PP bag,white or color inner box , then pack in standard export carton or wooden case,also can packing as your requirement

  Q: What is the wear life of the chain?

 Chain wear life is typically 1.5% elongation (normal measurement 6-12) in the application of the   drive, and 2% elongation in the transportation applications. Our chains can withstand up to 3% elongation, but this may damage the chain sprocket, overloaded, or increase the vibration and noise.

OUR CERTIFICATIONS:

We are right here waiting for your inquiry!!
