Industrial Machinery Equipment Conical Fermenter Tank Beer Brewing Equipment

Jacketed fermenter

1.High quality Material:SS304,SS316L Size:10L-5000L

2.Multipurpose use

3.Dimple plate jacket for cooling

4.Competitive price

5.Mirror polish inside and outside

Your drawings and special requirements are welcomed.

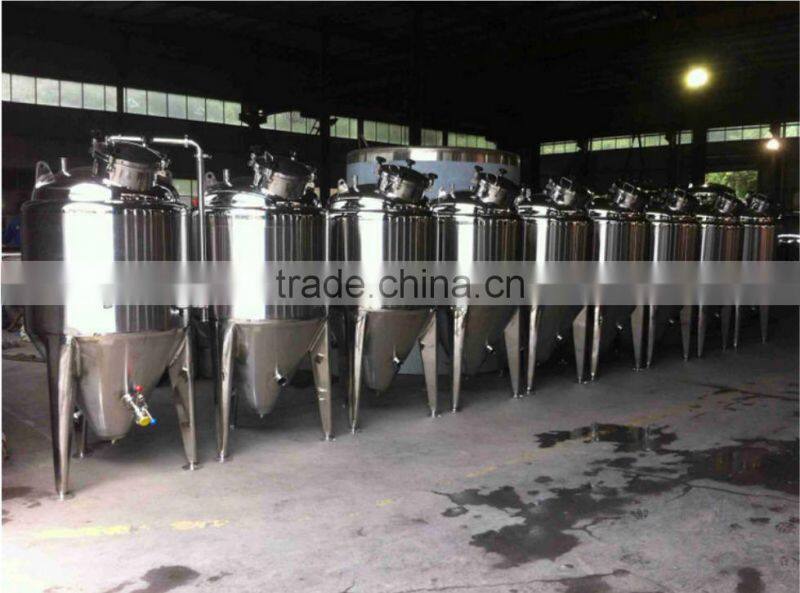

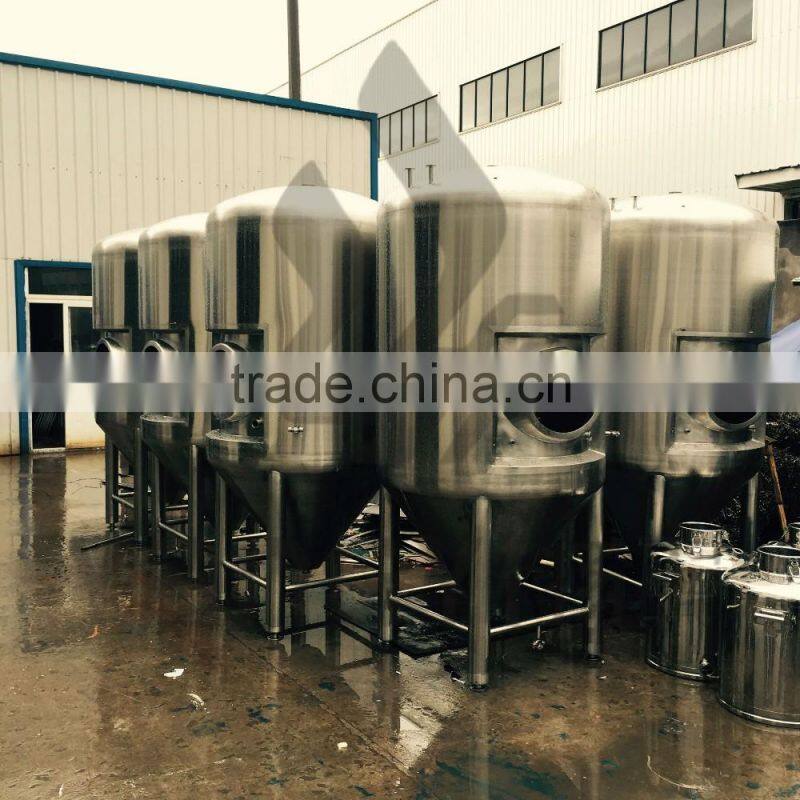

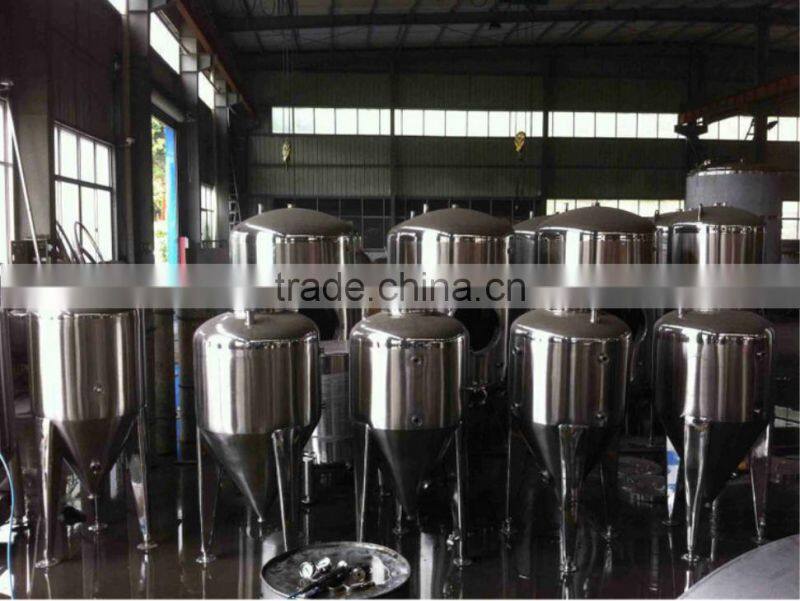

The conical fermentation tanks have a dish top with cylindrical body.  The 60 conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast.  All tanks are food grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness.  The cooling system is a dimple jacket with insulated polyurathane fill.  All tanks are designed for up to 14.7 PSI and tested at 30 PSI.  The inside of the tanks are polished to Ra>.22um and the outside is a brushed / mirrored finish.  All tanks come standard with 25% head space on top of working volume.  All Conical come standard with a Racking Arm.   Special orders may be placed along with custom features to your specifications.

Jacketed fermenter

Standard Features:

1.interior construction: stainless steel 316, with mirror polish/ 3A polish.

2.exterior construction: stainless steel 304, with satin polish/2B polish

3.jacket layer: dimple jacket for cooling.

4.insulation: PU(polyurethane), 80mm

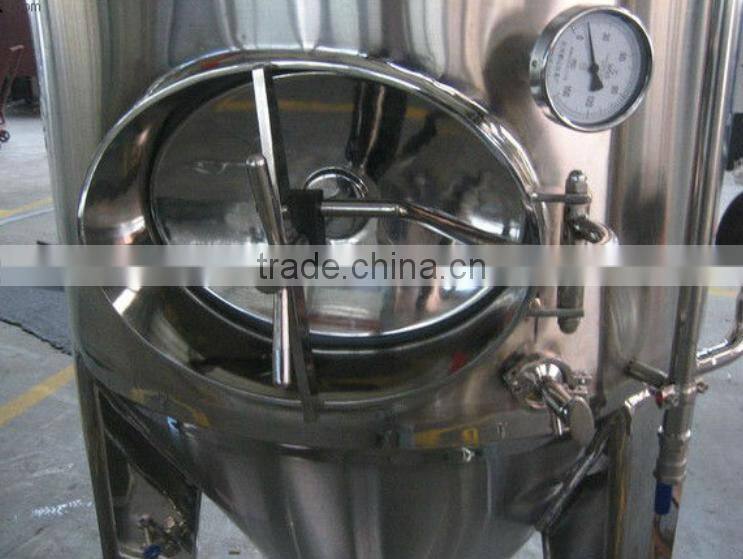

:dish cover with inlet spraying ball, relief valve, lifting lugs

6.inlet and outlet: sanitary clamp connection with butterfly valve

7.tank bottom: conical bottom for easy drain out, racking arm at the side of it.

8.Clean in place: CIP spraying ball

9.legs: adjustable stainless steel legs

nfiguration: temperature probe, pressure gauge,sample valve, relief valve.

optional features

1.interior construction: ss304 with 2B polish or no need polish.

2.exterior constrcution: ss304 with mirror polish.

3.jacket: heating and cooling jacket, dimple jacket, coil jacket for your choose.

4.insulation:rock wool

5.agitator: frame agitator, anchor agitator, scraper, paddle.

6.motor: ABB, Siemens

7.inlet and outlet: DIN, tri-clamp, flange, thread

8.manway: top manway

9.bottom and top: dish top and bottom,

10.legs: with wheels for easy move

nfiguration: level meter, temperature gauge, air vent,sight glass and light glass, racking arm and so on.

1. Factory price or trade  price?

We are manufacture, all of the price is factory price.

2. How to ensure the quality of final produce?

We will specially test before EX work, such as materials,smooth finish, and pressure test for every produce.

3. How to solve that If some accessories damaged in equipment?

We promise warranty time of 1 year. If exceed warranty time, we will charge cost for help customers to replace damaged accessories.

4. Can you supply the samples?

Sure, we suuply the samples in charge.

5. Can you customize per requirements of customers?

of course. Our experienced engineers can provide professional drawing design, also can design and produce per the drawing of customers.
