Home > Products > Spring Steel > Annealed Spring Alloy Steel SUP10 Flat Bar
Annealed Spring Alloy Steel SUP10 Flat Bar
- staticImageWaterMark
- T/T D/P D/A Credit Card
You May Like
Product Details
| Grade | Sup6/Sup7Sup9/SUP9A/Sup10 | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Thickness | 6mm-40mm | Width | 40mm-150mm | |
| Length | 5800mm(Normally) | Place of Origin | Tianjin, China | |
| Brand Name | Qiangbang | Model Number | alloy round edge | |
| Application | Leaf Springs, rotary baldes | Technique | Hot Rolled |
spring steel
1.All bundles tied with wire/strapping at 3/4 places.
2.Approximate bundle weight: 1.0 to 2.0 MT
3.Grade No. Identification: by painted color code written on each bundle
Product Description
Annealed Spring Alloy Steel SUP10 Flat Bar
whatsapp: +86 135 0202 5392
athena(at)tjqiangbang (dot) com
| Product Chemical Composition (%) | ||||||||||
| STANDARD | C | Si | Mn | Cr | V | P | S | |||
| GB | SAE | JIS | DIN | ≤ | ||||||
| 65Mn | 1066 | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.25 | 0.035 | 0.035 | |||
| 60Si2Mn | 9260 | SUP6 | 60Si7 | 0.56-0.64 | 1.50-2.00 | 0.60-0.90 | ≤0.35 | 0.035 | 0.035 | |
| 60Si2MnA | 9260 | SUP7 | 60Si7 | 0.56-0.64 | 1.60-2.00 | 0.60-0.90 | ≤0.35 | 0.025 | 0.025 | |
| 55CrMnA | 5155 | SUP9 | 55Cr3 | 0.52-0.60 | 0.17-0.37 | 0.65-0.95 | 0.65-0.95 | 0.025 | 0.025 | |
| 60CrMnA | 5160/h | SUP9A | 0.56-0.64 | 0.17-0.37 | 0.70-1.00 | 0.70-1.00 | 0.025 | 0.025 | ||
| 50CrVA | 6150 | SUP10 | 51CrV4 | 0.46-0.54 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.10-0.20 | 0.025 | 0.025 |
| 30CrMnB5 | 0.27-0.31 | 0.15-0.30 | 1.1-1.4 | 0.35-0.40 | 0.035 | 0.035 | ||||
FLAT BARS IN NORMAL SIZES
Width(mm) 40-50 | Width(mm) 57-63 | Width(mm) 63.5-69.9 | Width(mm) 70-75 | Width(mm) 76-79 | Width(mm) 80-89 | Width(mm) 90-100 | Width(mm) 101.6-127 |
40x6 | 57.15x6.35 | 63.5x6 | 70x6 | 76.2x74 | 80x7 | 90x10 | 101.6x9.5 |
42.27x7.94 | 57.15x6.65 | 63.5x6.35 | 70x7 | 76.2x8.2 | 80x7.4 | 90x11 | 101.6x9.52 |
44.45x4.76 | 57.15x7.4 | 63.5x6.65 | 70x7.4 | 76.2x9.14 | 80x8 | 90x12 | 101.6x10.2 |
44.45x6 | 57.15x9.14 | 63.5x7.4 | 70x8 | 76.2x10.2 | 80x9 | 90x13 | 101.6x10.7 |
44.45x6.35 | 57.15x9.52 | 63.5x8 | 70x9 | 76.2x11.1 | 80x10 | 90x14 | 101.6x11.1 |
44.45x6.65 | 57.15x10.2 | 63.5x8.2 | 70x10 | 76.2x11.35 | 80x11 | 90x15 | 101.6x11.35 |
44.45x8.2 | 57.2x10.2 | 63.5x8.66 | 70x11 | 76.2x12.67 | 80x12 | 90x22 | 101.6x12.67 |
44.5x6 | 59x6 | 63.5x9.1 | 70x12 | 76.2x12.7 | 80x13 | 90x26 | 101.6x12.7 |
44.5x9 | 60x6 | 63.5x9.14 | 70x13 | 76.2x12.88 | 80x14 | 90x30 | 101.6x14.2 |
45x6 | 60x7 | 63.5x11.35 | 70x14 | 76.2x16.8 | 80x15 | 99x11.5 | 101.6x20 |
45x7 | 60x8 | 63.5x12.7 | 70x15 | 76.2x19.05 | 80x16 | 100x8 | 101.6x20.02 |
45x9 | 60x9 | 63.5x15.88 | 70x20 | 76.2x20 | 80x22 | 100x10 | 102x9.2 |
49x7 | 60x10 | 64x8.2 | 70x21 | 76.2x20.6 | 80x23 | 100x14 | 102x14.2 |
50x6 | 60x11 | 65x7 | 70x25 | 76.2x25.4 | 80x25 | 100x18 | 105x8 |
50x7 | 60x12 | 65x12 | 75x5.8 | 76.2x28 | 80x31 | 100x23 | 110x12 |
50x12 | 60x13 | 69.9x11 | 75x6 | 79x10.5 | 80x35 | 100x25 | 110x23 |
50.8x6 | 60x14 | 75x8 | 88.9x9.52 | 100x30 | 120x20 | ||
50.8x7.4 | 60x15 | 75x9 | 89x20 | 100x40 | 120x25 | ||
50.8x8.2 | 60x16.5 | 75x10 | 100x43 | 127x20 | |||
50.8x9 | 60x22 | 75x11 | 127x25.4 | ||||
50.8x10.2 | 63x9 | 75x13 |
Tianjin QIANGBANG Industrial Co., Ltd. has dedicated in steel industry
for almost 20 years.With rigorous quality control, advanced equipment,
skilled workers, we supply you with our high quality products and best service
Company Profile

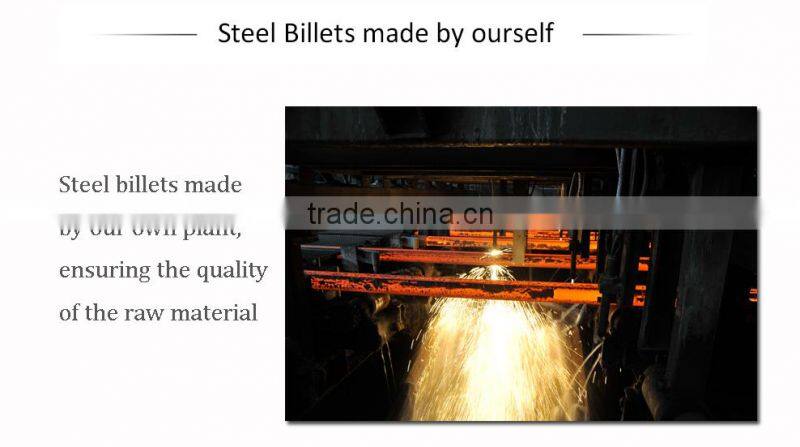

Tianjin Qiangbang Industrial Co., Ltd., wholly owned subsidiary of Tianjin DaQiang Steel Co., has dedicated in steel industry for almost 20 years. With the philosophy "Customers and Credibility above all, people -oriented and community-serving", the company has developed into a large comprehensive enterprise capable of steel smelting, rolling and making. Products include Spring steel flat bars, Leaf springs, Rotary Blades, and Construction material Prestressed Concrete steel strand, PC steel wires. National inspection-free. OEM services available.
