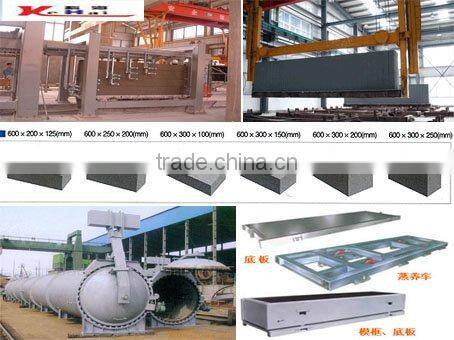

Note: Air turnover cutting machine is ke Equipment of Autoclaved Aerated Concrete Plant

          Annual production capacity over 10 0000m3

Working Principle:

The tilting hanger turns the mould 90 in the air ,demoulds the blank and puts it on the cutting table  together with the siade plate.The cutting cart driven by the motor runs slowly through the vertical cutting device,and run to the horizontal cross cutting device after vertical cutting is finished When the cart is stopped, the cross cutting device starts and the cross cutting support falls down from the top to make horizontal cutting until the reset upward.

Advantages:

1. Simple and practical structure, easy installation and maintenance;

2. The blank stands vertically with the width of 600mm and the height of 1200m after tilting, thus the cutting wire can be shorter and not easy to be broken and drifted, besides, the cutting precision can be more exactly to cut;

3. As the blank stands vertically, the grooves on both sides of the blank (within width of 600mm) can be milled at the time when the blank is cut vertically, no groove processing device is needed;

4. The machine can process both building blocks and plates, and the blank can be cut in 6 sides therefore the quality of product is free from affection of mould oil and the deformation of the mould;

5. The machine has simple operation and cutting processes (titling, vertical cutting and cross cutting) can be finished in different positions plus that cutting and running are controlled in the same device, therefore, operating is simplified and maintenance is convenient.

Technical Parameters:

Zhengzhou Kehai Heavy Industrial Machinery Co., Ltd is an imports and exports enterprise of China which manufactures the following products on a large scale: Autoclaved aerated concrete block equipments, large-scale hydraulic pressure block making machine, autoclaved lime sand brick equipments, disc-type bake-free brick making machine, metallurgy mill-run equipments, and etc.

....................................................................................................................................................

AAC Introduction

Basic concept

AAC is a siliceous material (sand, fly ash and silicon tailings such as waste porcelain clay, stone processing waste materials, blast furnace slag, etc.) and calcareous materials (lime, cement) as the main raw material, mixing fat gas agent (aluminum powder), by ingredients, mixing, casting, pre-raising, cutting, autoclave, curing process made of light porous silicate products, because by the hair contains a lot of gas even after the small pores, hence the name of aerated concrete.

The Performance Advantage

Lightweight: Porosity achieve 70% to 85%, volume density is generally 500 ~ 900kg/m3, as 1/5 of general concrete the 1/4of clay, the 1/3 of hollow brick, and similar with wood can float in water. It can reduce building weight, reduction in the cost of integrated building.

Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.

Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.

Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.

Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.

Anti-seismic: The same building structure, improve the two seismic than the brick level.

Pro-environment: Manufacturing, transportation, all use the process of pollution, to protect arable land, saving energy, is one kind of a green building material.

Durability: material strength is stability, in the specimens tested after one year of atmospheric exposure; the intensity increased by 25%, and remained stable after ten years.

Shortcut: it has good machinability, can be sawed, planed, drilled, nailed, and available appropriate as bonding of adhesive material, so create favorable conditions for building construction.

Cost-saving: An integrated lower cost than using more than 5% of solid clay bricks, and can increase the usable area, greatly enhance the utilization of floor space.
