Home > Products > Curbstone making machine > hf QT10-15D Concrete Bricks Making Machinery for Hollow Bricks Solid Bricks Color Paver and Curbstone

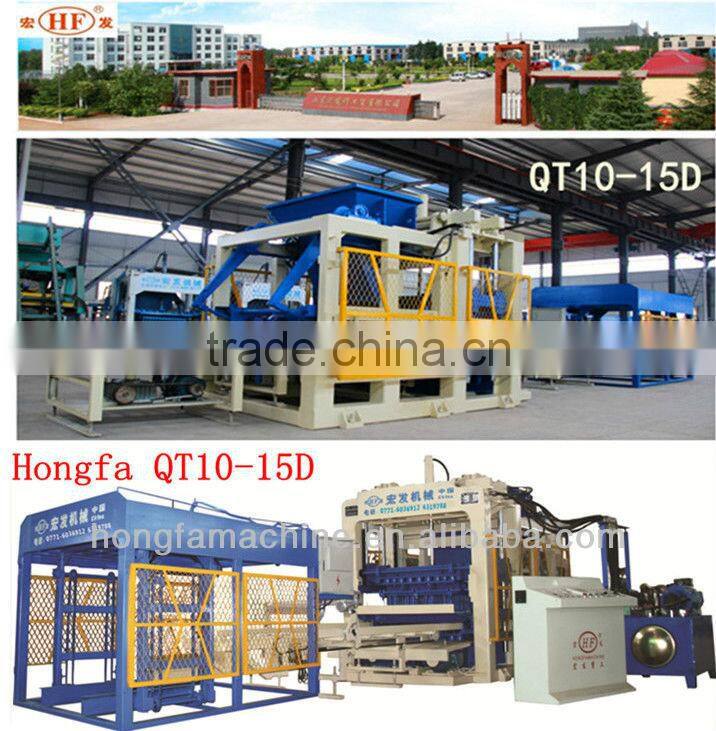

hf QT10-15D Concrete Bricks Making Machinery for Hollow Bricks Solid Bricks Color Paver and Curbstone
- qiangdao
- T/T
You May Like
-
Sand Cement Brick Machine Manufacturer in Shandong / Brick Machine Supplier ( Hongfa )
-
Professional Paver Block Machine / Paving and Interlocking Block Making Machine / Cement Colour Paver Machines for Sale
-
Shandong Hongfa Curb Stone Making Machine / Concrete Curbs Production Line / Automatic Pavers Block Machine
-
Concrete Curbstone Making Machine by Hydraulic Prssure
-
High Hydraulic Pressure Pavement Block Forming Machine / Curbstone Forming Machinery
-
Building Block Maker Construction Hollow Brick Making Equipments Supplier
Product Details
| Type | Hollow Block Making Machine | Brick Raw Material | Concrete | |
| Processing | Brick Production Line | Method | Hydraulic Pressure | |
| Automatic | Yes | Capacity | 1800-2400pcs for 500*150*200mm | |
| Place of Origin | Shandong, China | Brand Name | hongfa | |
| Model Number | QT10-15D | Power | 49kw | |
| Dimension(L*W*H) | 7500*2500*3020(mm) | Certification | ISO CE SGS | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
hf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone ISO9001-2008 CE SGShf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone
Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 70 countries . Thanks for your attention to us .
QT10-15D type: hf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone
Advantage :
A. The frame of the host machine is used hight quality 20*20CM square tube steel, all from the best steel supplier Laigang, Jinggang.
B. Import the most advanced Europe hight tech, apply the universal joint in the machine,so the machine running more stable and the motors not easy to burn.
C. To use the most famous Hydraulic brand - Calyca from Taiwan.
D. The eletrical components and touch screen are all used imported Siemens.
Main technical specifications :
hf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone
| Main Technical Specifications | ||||||
| Overall Dimension | 7500×2500×3020(mm) | |||||
| Rated pressure | 21MPa | |||||
| Main vibration form | Platform vibration | |||||
| Cycle Time | 15-20seconds | |||||
| Vibrating Frequency | 2800-4500 rolls/minute | |||||
| Vibration | 100KN | |||||
| Motors Power | 49KW | |||||
| Weight | 11T | |||||
| Pallet Size | 1220*900(mm) | |||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
Productivity | ||||||
| Brick Style | Size mm | Cycle molding | QTY /Mould | Per hour | Per 8 hours | |
| Hollow brick | 400*200*200 | 15--20S | 10 | 1800~2400pcs | 14400-19200pcs | |
| Prorous brick | 240*115*90 | 15--20s | 27 | 4860~6480pcs | 38880-51840pcs | |
| Solid block | 240*115*53 | 15-17s | 56 | 11850~13440pcs | 94800-107520pcs | |

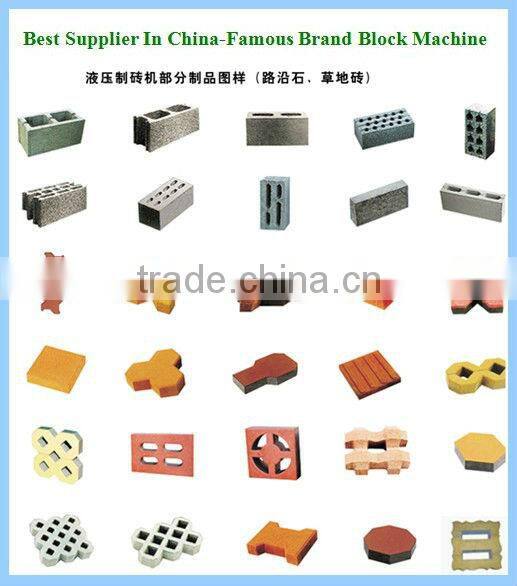

Blocks sample:
Aera and labour need :
hf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 200m2 , the raw material store and finised blocks store depends on the local situation .
After sale service
hf QT10-15D concrete bricks making machinery for hollow bricks solid bricks color paver and curbstone
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours . We have set up many sale offices and after-sale offices around the world .
Details quality achieves strong body !
Thanks for your time !
It is our pleasure to be of service to you my friend . Your enquiry is great help for us !
Sale manager : Amy Liu MB:0086 13969983506 Skype: donghaowen66
