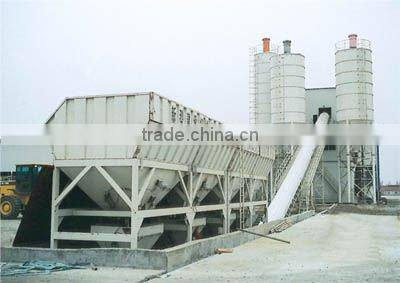

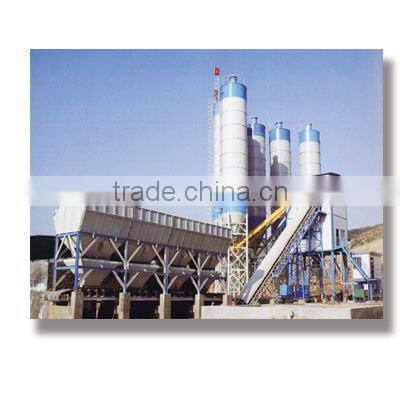

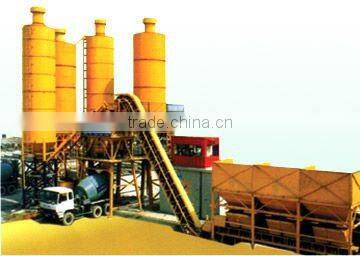

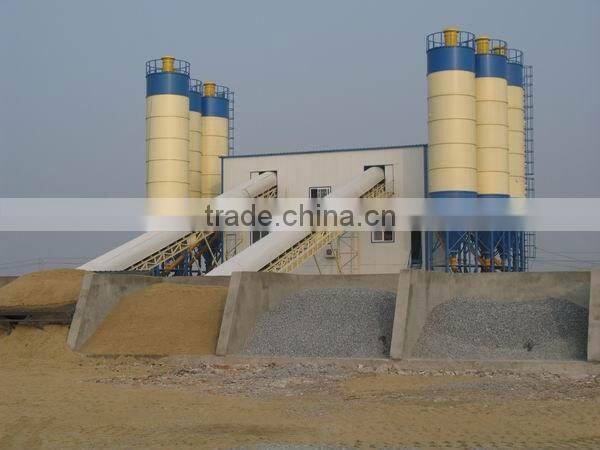

Cement Batching Plant,2012 Hot Selling Batching Plant,concrete Batching Plant,HZS 40 Concrete Mixing Plant
- Qiaodao
- T/T
You May Like
-
JS 500 Concrete Mixer
-
High Production and Good Price Mixing Machine,JS1000 Series Cement Mixer
-
Concrete Mixing Machine,JS750 Concrete Mixer
-
Hot Selling and Good Price Mixing Plant,HLS90 Concrete Mixing Plant
-
Hot Selling and Good Price Mixing Machine,JQ350 Cement Mixer
-
Hot Selling and Good Price Mixing Machine,JS750 Concrete Mixer
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | hongfa | Model Number | HZS50 |
Product Description
Specifications
1.Lower price2.Take less time on batching process
3.Long working life
4.High performance
HZS series concrete mixing station, is compulsory, high efficiency equipment to produce plastic, concrete and other dry hard concrete, high efficiency, are widely used in large and medium-sized construction, road and bridge engineering and production of precast concrete products plants, concrete is the ideal equipment to produce goods. The mixing system host using JS Series twin-shaft compulsory mixer, mixing the concrete with a homogeneous good, the mixing time is short, wearing parts, long life, easy operation and maintenance, it uses the latest design ideas for electronic weighing, computer control, digital display control technology, said the volume of electronic devices with buffer and automatic compensation function, high precision measurement. Sand and gravel on the use of the word belt feeding system on feed, with maintenance walkways, the majority of the construction unit ideal for producing high-quality concrete.
Technical parameters of HZS50concrete mixing plant
| |
Theory productivity | 50m3/h
|
Mainframe model | JS1000
|
Normal volume of mainframe | 1000L
|
The maximum particle size of mixing aggregate | 80mm
|
Power of mixing motor | 2×18.5kw |
Upgrade machines power of aggregate hopper | 18.5kw
|
Aggregate batching system | PL1600
|
Volume of aggregate soil | 3×6m3
|
Batching capacity of aggregate | 1600L
|
Kinds of aggregate | 3
|
Volume and number of powder silo | 50t/100tchoice according to request of user |
Powder screw conveyor | 40t/hchoice according to request of user |
G Metering range and accuracy of aggregate G | 3000±2kg |
W Metering range and accuracy of water W | 400±1kg |
C Weighing range and accuracy of cement C | 500±1kg |
F Weighing range and accuracy of fly ash F | 200±1kgchoice according to request of user |
A Weighing range and accuracy of admixture A | 50±1kg |
Cycle | 75S |
Discharge height | 3800mm |
Power of whole machine Power of the whole machine | About 76kw (not contain screw conveyor) |
Weight of the whole machine | About 17T(not contain screw conveyor and power soil) |
External dimension (L*W*H) | According to the model of disposition and layout |
