SMY8-128 Concrete Roof Tile Machine in South Africa

SMY8-128  concrete  roof tile machine in south africa

1) SMY8-128 concrete roof tile machine/roof tile machine colorful cement roof tiles machinery roofing machinery with the merits of fast molding speed, large output, reliable performance, PLC automatic control and convenient operation. Its hydropneumatic, with the speed as high as 7-8 pieces/min. 3000-4000pcs/shift=8hours/day.In addition, the rate of finished products is high, and the quality-price-relative is better.

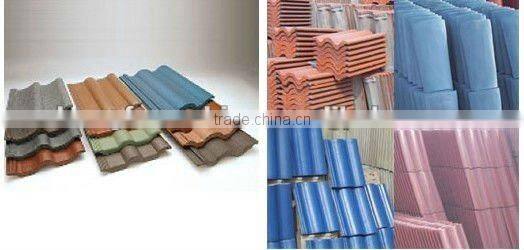

2)The concrete roof tiles made of the mortar concrete with press-filtering molding are with the perfect structure. In addition, there are many kinds available, with high density, strong intensity, and nice dimensions, which are the excellent on the concrete products, meeting the different construction requirements

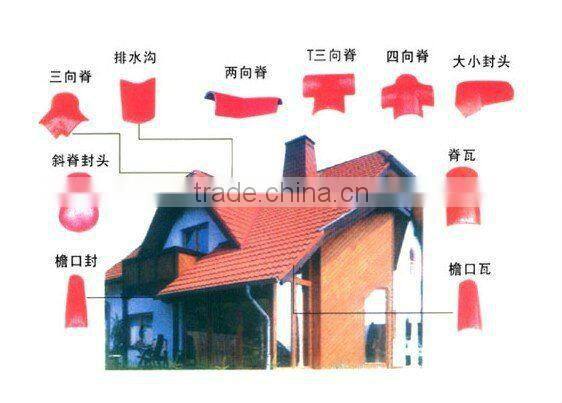

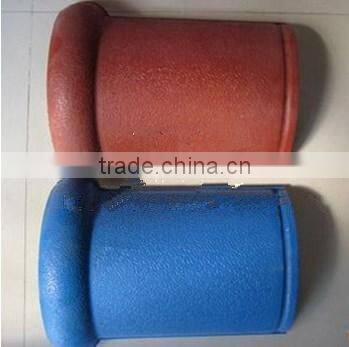

3) SMY8-128 concrete roof tile machine is with multi - functional. By changing molds, it could be used to produce master tile, ridge tile, edge tile, drain-tile, etc.

SMY8-128 concrete roof tile machine main technical parameter

1. Productivity :7-9 pcs/min

2.Building area:150m²

3.Curing area:60m²

4. Power:18kw

5.Normally size:424(L)*337mm(W)  9.1pcs/m2

6.Weight: 4kg/PC,

7.Appliance grade: 0°90°,

8.Proportion: 2.2

9.Water absorption rate ≤6

10.Folding strength 2000N

11. Need 3-4 workers

Basic Scheme

Raw material for making concrete roof tiles---roof tile making machine

cement sand and water and painting

Using cement,sand as raw material to make colorful concrete/cement roof tiles,by SMY8-128 roof tile making machine,concrete roof tile machine/roof tile machine producing process

Put the raw material: cement and sand into elevator,add water into mixer,fully mixed the concrete raw material,through doser to control wegiht and thickness of the concrete roof tile,shapped on hydraulic concrete roof tile press machine,concrete roof tiles curing on roof tile pallet about 24 hours,after natural curing,using pigment to painting concrete roof tiles. SMY8-128 concrete roof tile making machine is automatically controlled by PLC and easy to operate, so it just needs 3- 4 individuals to operate the cement roof tile making machine.

IF there is anything i can help  you  pls feel free to contact  me by Mob/Whatsapp : 0086-13256512899
