Ghana QTJ4-25 Brick Making Machine,concrete Hollow Block Machine,small Scale Block Making Machine
- qingdao
- T/T
You May Like
-
Algeria QT5-15 PLC Hollow Brick Making Machine,paver Block Machine,cement Block Making Machine,company Directly Block Machinery
-
Small Scale Brick Making Machine,indian Block Machine,hollow Concrete Brick Making Machinery
-
Fly Ash QT4-15B Brick Making Machine,hollow Block Making Machine,concrete Block Mahcine,flyash Brick Machinery
-
Hydraulic Pressure QT4-15B Brick Making Machine,hydrualic and Automatic Block Machine,shandong Brick Making Machinery
-
ISO9001 Hongfa Concrete Brick Making Machine,hollow Block Machine,small Scale Brick Machinery
-
Block and Brick Making Machine,Automatic Brick Machine(QT4-15B)
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 5800pcs/day | Place of Origin | Shandong, China | |
| Brand Name | hongfa | Model Number | QTJ4-25 | |
| Voltage | As your local power requests | Power | 16.85KW | |
| Dimension(L*W*H) | 6400*1500*2700mm | Certification | ISO9001/CE/SGS | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

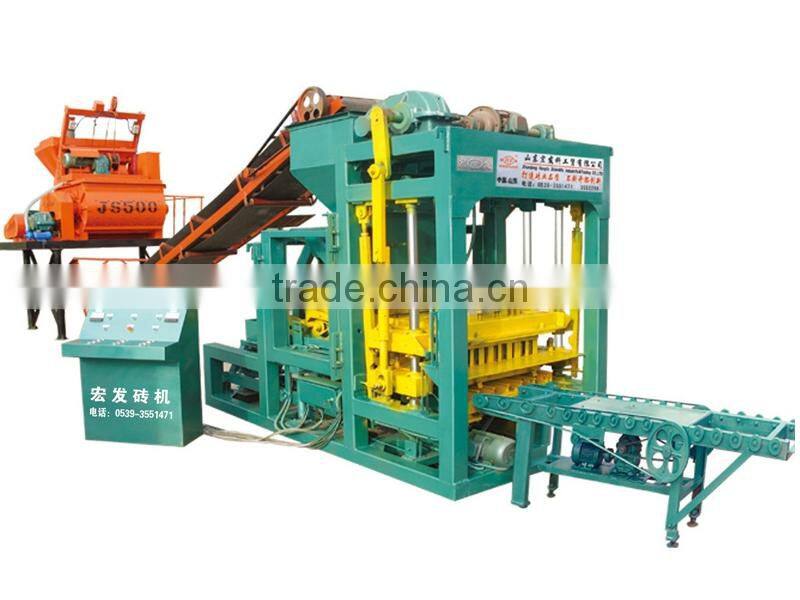

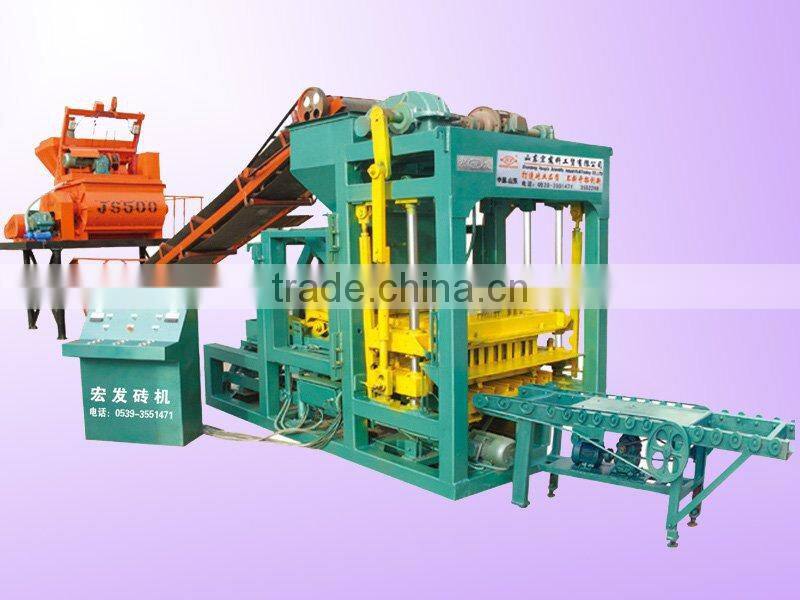

QTJ4-25 Type blpck making machine
Main Technical Parameter :
Overall Dimension:6400*1500*2700mm
Rated pressure :21Mpa
Main vibration form :Platform vibration
Vibration frenquency :2800~4500r/min
Pallet Size :880*480*25 mm
Molding Cycle:25s
Overall power :16.58KW
Productivity :
Name | Pic | Size(mm ) | Quantity/ mould | Cycle moulding
| Per hour
| Per day (10hours )
|
Hollow brick
|
400*200*200 |
4pcs |
24~26s |
580pcs |
5800pcs | |
400*150*200 |
5pcs |
22~25s |
800pcs |
8000pcs | ||
Color brick |
225*112.5*60
|
9pcs |
22~25s |
1440pcs |
14400pcs |
Machine Line Parts Details:
1. Cement silo
Size | 30T | 50T | 100 Ton |
Dimeter(m) | 2.5 | 3 | 2.5 |
Bin Height(m) | 4.8 | 5.4 | 10 |
Total Height(m) | 11.4 | 12 | 17 |

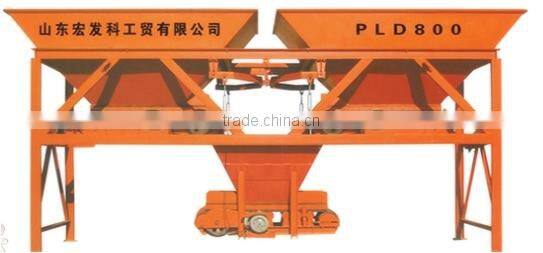

2. Batching machine (PLD 800)
This automatically weighs the raw materials as per pre determined program.
3.JS 500 concrete mixer
Mixing the raw materials thoroughly and discharges for the Host machine.
4.Belt conveyor machine: 8meters, 2.2kw
This conveys the raw materials to the host machine hopper.
5, Host machine
6. PLC control system
PLC intelligent control.Main machine interface, control system equipped with complete logic control,production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
7. Hydraulic station
Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.
8. Brick conveyor machine
It can clean up the top surface of the bricks.

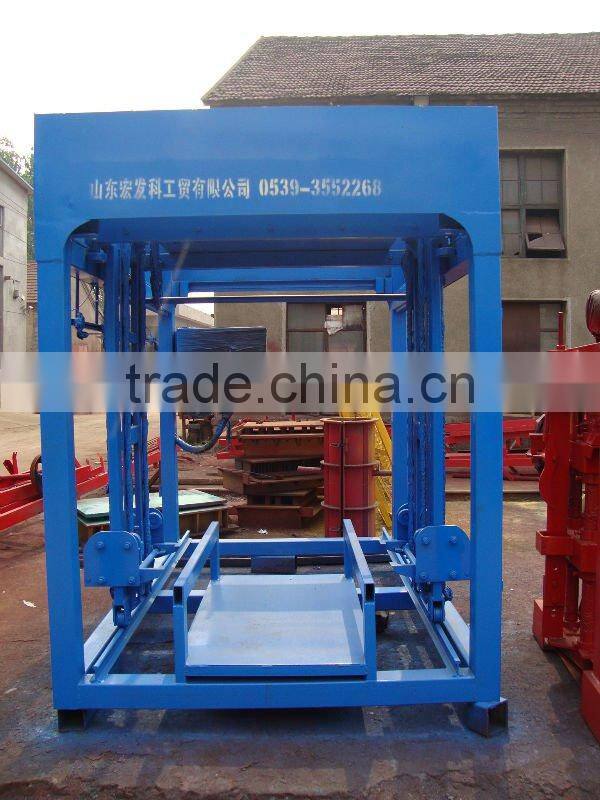

9, Stacker
It can stack the pallets of block automatically.
10. Manual forklift
11. Molds
It can be designed according to the customer's requirements.
12. Finished products
13 certificate
14 Company
Seller Sherry
Seller: Sherry
Skype: hongfa710
Iphone/WhatsApp/Wechat/Viber: +86-13969965095
Sincerely welcome your consultation.
