QTJ4-26 Concrete Paver Brick Machine in Mozambique

 QTJ4-26 concrete paver brick machine in Mozambique

QTJ4-26 brick making  machine is a kind of semi-automatic type based on the original medium and small-scale block machines by us. It adopts four-lead, channel steel stander making the equipment more firm and the mould and the squeeze head orientation more precise,  and bed mould orientation vertical and upper mould compression vibration, which improves the efficiency greatly and manufactures blocks with more average density and higher strength.

QTJ4-26 concrete paver  brick machine productivity

 QTJ4-26 concrete paver brick machine main technical parameter

1.overall dimension:2060*1730*2580mm

2.main vibration form : platform vibration

3.exciting power:35.5KN

4.vibration frequency:4200(r/min)

5.pallet size:850*480*40mm

6.molding cycle:26s

7.overall power:14.25kw

8.raw material :crushed stone, cement, cinder, slag, sand,clay,gangue, perlite and other

                         industrial wsates

9.applied products:grass blocks, slope blocks,concrete blocks,solid/hollow/celluar masonry

                              products,paving stones with or without face mix, garden and landscaping

                              proudcts,slabs,edgers, kerbstone,interlocking brikcs .etc.

10.applied fields:widely used in buildings, road pavers,squares,gardens, landscaping, city

One set QTJ4-26 concrete brick machine include host machine, JQ350 mixer, 6M conveyor belt, control box , one set free charge mould , two sets manual carts

If you are interested in ,pls feel free to contact me at a+86-152649364636 Linda or add my skype: linda112637

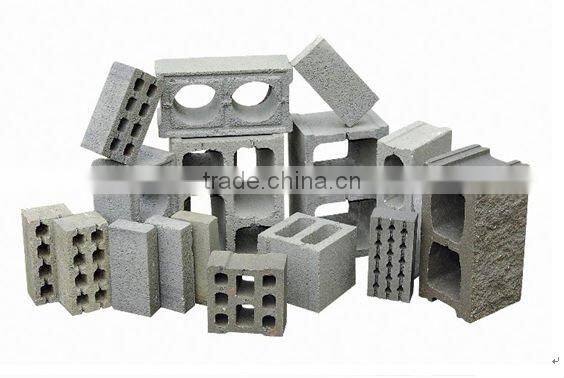

QTJ4-26 concrete paver brick machine products samples
