Aac Block Company in Gujarat---150000 M3/year Areated Concrete Block,AAC Production Line

Detailed Product Description

 We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.

We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.

Capacity: from 50000 cubic meter to 300,000 cubic meters per year.

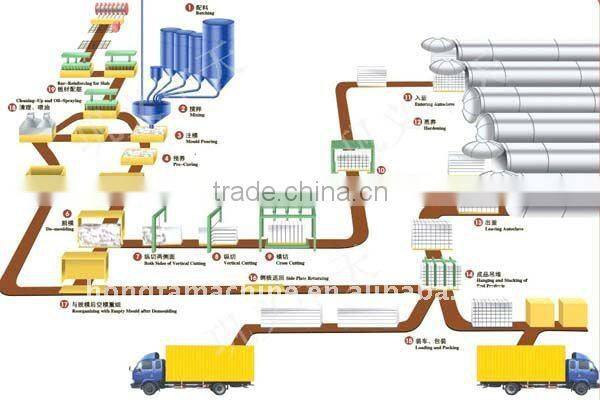

Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.,

1        Product weight is according to 600kg/m3 to control.

2        annual capacity 300,000M3.

3        set raw  material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.

4        water and material rate 0.631

5        one mould product 2.88M3

6        Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.

7        casting slurry temperature 38-42 degree

8        body quiet stop. Time is 1.5-2.5hours, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa

9        Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

10.

Cement lime fly ash style aerated block raw material proportion

11.  Cement lime Sand style aerated block raw material proportion

Reference: cement is 42.5 Portland or 42.5 common cement

Aluminum power paste calculate to use according to 600kg/m³
Remark: the accurate batching rate is adjustable according to the raw material locally.

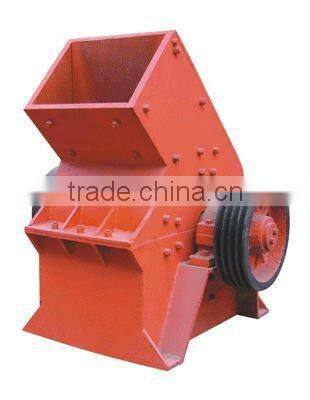

Crusher

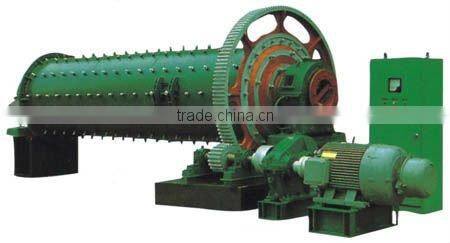

Ball mill

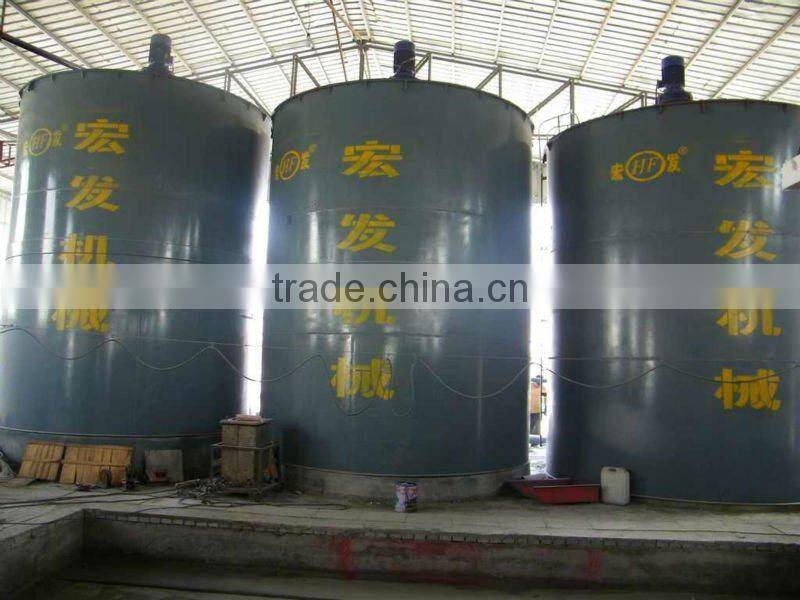

Slurry Tank

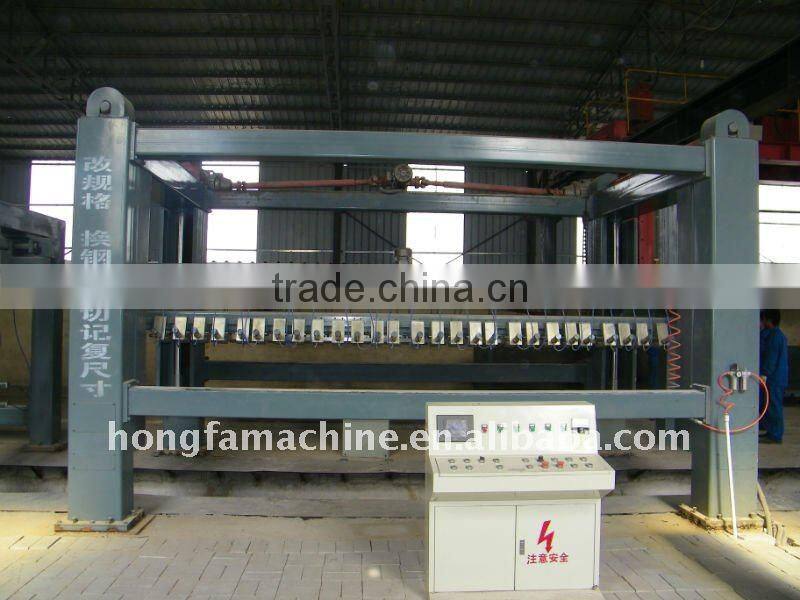

Cutting machine

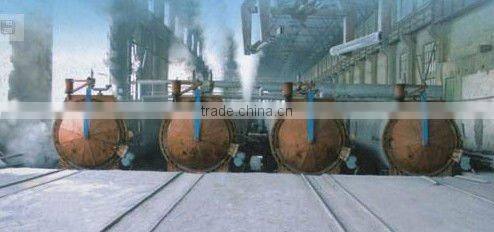

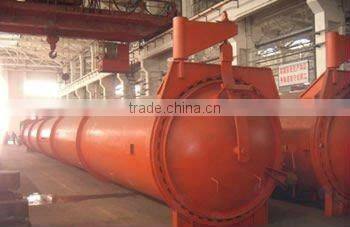

Autoclave

Sale manager  Sherry       Skype   hongfa710         tel  86-15562182-82

Welcome your requests.
