AAC production line detailed information:

   We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.

We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.

Capacity: from 50000 cubic meter to 300,000 cubic meters per year.

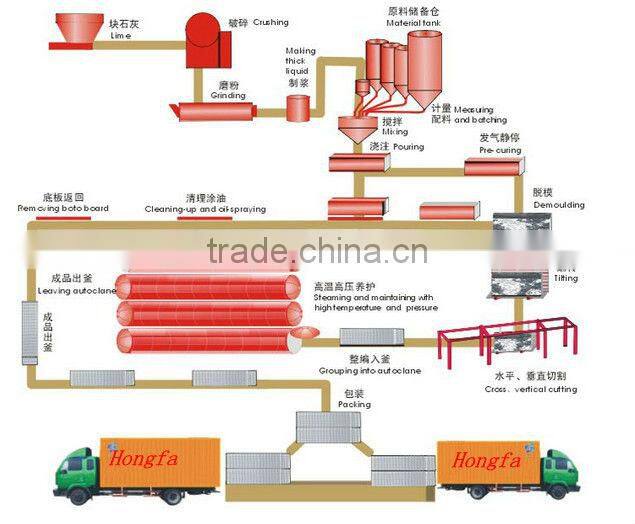

Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.,

1        Product weight is according to 600kg/m3 to control.

2        annual capacity 300,000M3.

3        set raw  material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.

4        water and material rate 0.631

5        one mould product 2.88M3

6        Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.

7        casting slurry temperature 38-42 degree

8        body quiet stop. Time is 1.5-2.5hours, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa

9        Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

10.

Cement lime fly ash style aerated block raw material proportion

11.  Cement lime Sand style aerated block raw material proportion

Reference: cement is 42.5 Portland or 42.5 common cement

Aluminum power paste calculate to use according to 600kg/m³
Remark: the accurate batching rate is adjustable according to the raw material locally.

Machinery details:

Raw Material Processing System

Jaw Crusher

Crushed Lime Silo

Ball mill

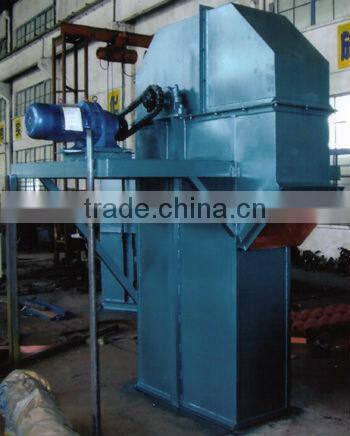

Bucket elevator

Pouring,Precuring and Cutting system

Slurry Tank

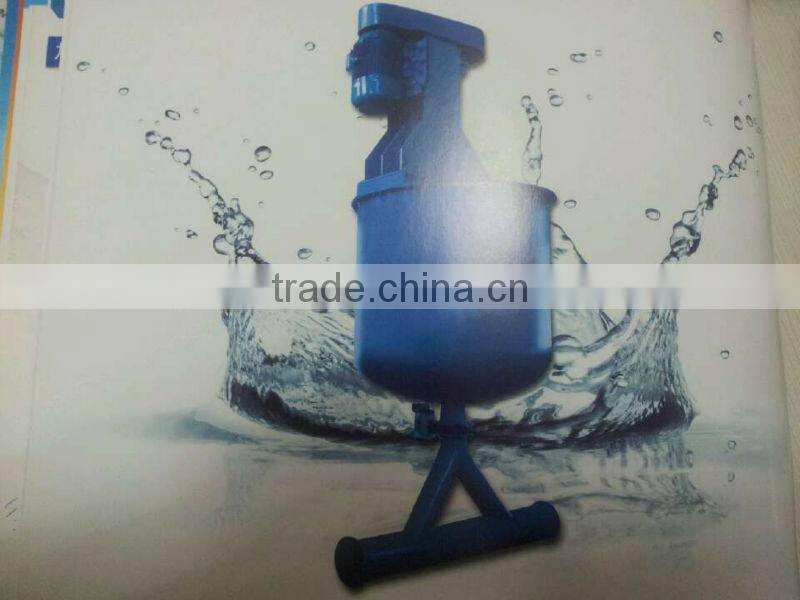

Pouring Mixer

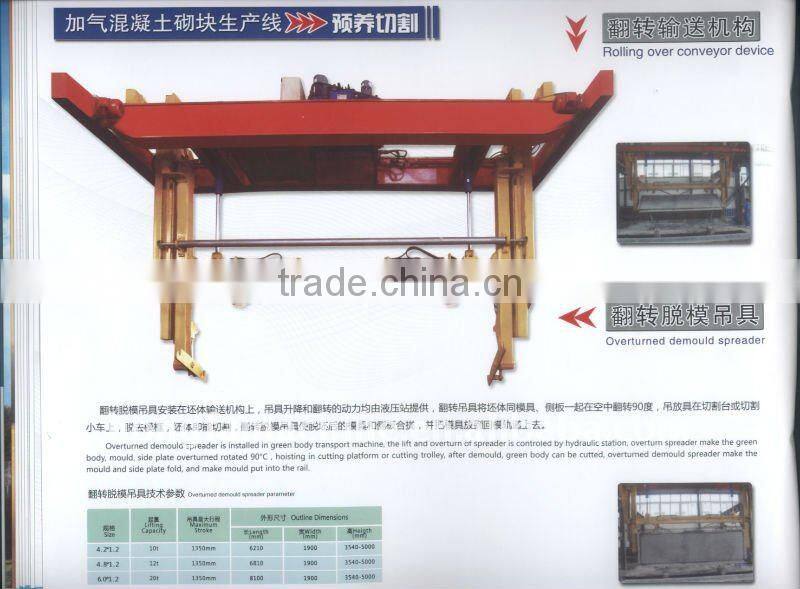

Rolling over conveyor device

Cutting machine

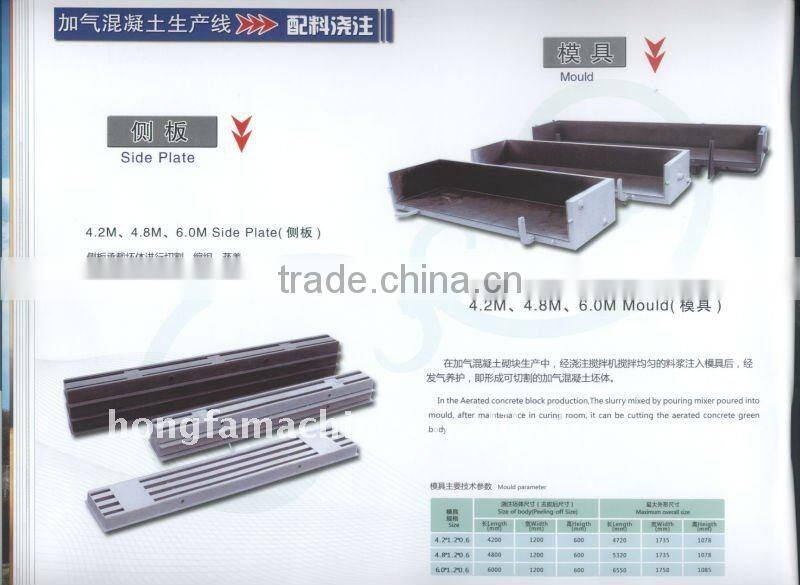

Mold

Grouping and curing section:

Boiler

Autoclave

Finished product

About our company:

Our customer:

Afte-sale service

Guarantee for one year and after-sale service for whole life. We provide engineer to your local place, help you install the machine, training your workers how to operate. The cost is free.

Detail service:

1, Design the program of building plant for customers

2, Provide related drawing of program.

3, Onsite installation and debugging ,and training opeators and maintainer of equipment.

4, Free training for workers in our factory.
