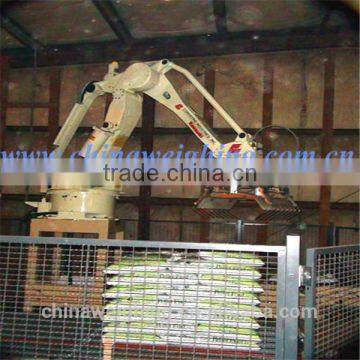

Robot Palletizer

The Automatic palletizer  can handle bags, crates or boxes in a same machine. Which ensures that a stable, tight and well presented pallet is created.

How the Automatic palletizer  Works ?

1, Bags/boxes/crates travel up the in-feed conveyor

2, Slightly inclined gripper receives the bag/box/crate and places it against its back edge

3, Centralisation unit inside gripper places bags/boxes/crates straight in the lateral centre of the gripper width

4, Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralisation unit

5, Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed

6, Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet’s dimensions

7, Sliding doors open to place layer on the pallet

8, Sliding doors close and a new layer is started. At the same time, pallet moves up to press against underside of the sliding doors to press and flatten recently formed layer

9, Pallet drops back down slightly for next layer to be placed on a flatten surface

10, Process is repeated until pallet is complete

11, As the pallet exits, a new layer starts. The sliding doors provide buffer to allow continuous palletizing
