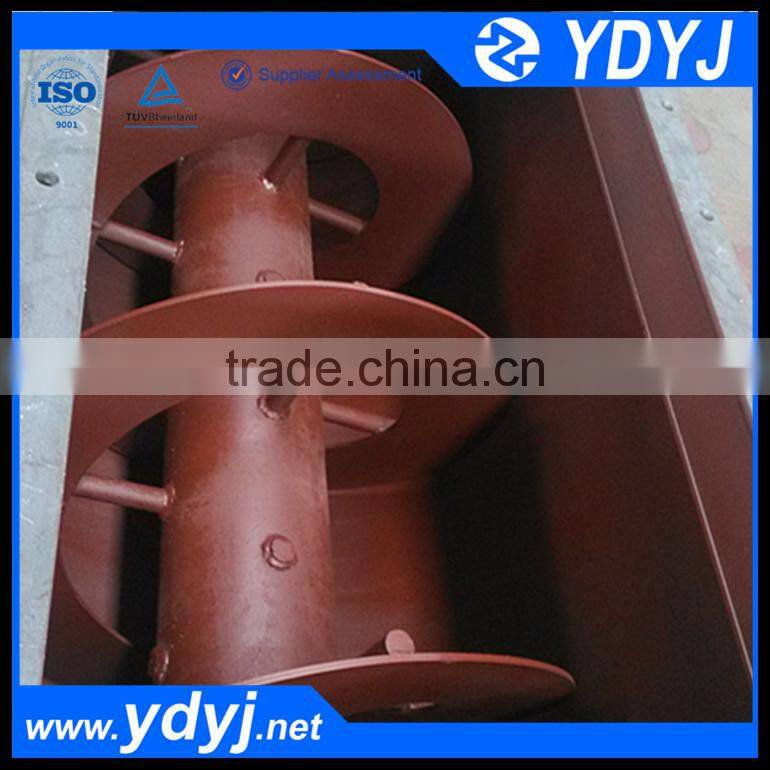

China Wear Resistance Spiral Blade for Screw Conveyor

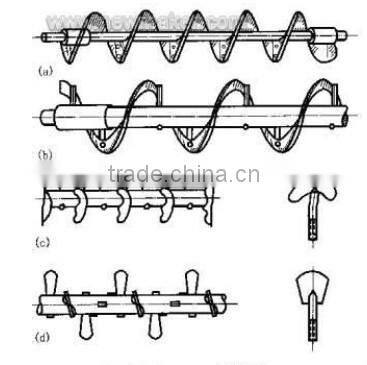

Spiral blade description

1.Full face type screw conveyor blade

  Full face type screw conveyor blade is suitable for loose material, this type is fixed device and can't easily be adjusted.

2.many headed banded screw conveyor blade

This type of screw is composed of two or more different diameter banded screw blade,  banded screw blade has the left blade and the right blade, a blade set in another, connected with a tube or shaft through a rigid hanger. A banded blade makes the material moves forward, another banded blade makes the material moving backward, so that the material can be absolute and fully mixed.

3.Crescent moon screw blade

Crescent type screw blade has a strong function of  stirring and loose material, it is  suitable for conveying powder and agglomerate material.

4.Leaf screw blade

Leaf screw blade can be adjusted to a certain angle so that the material can be mixed completely, and can control the flow of material.

Spiral blade function

Screw conveyor is used for conveying dry cement to solve, ore, coal, chemical fertilizers and other easily flying powdery material surrounding environment seriously affect has an absolute advantage, at the same time spiral feeder in the transportation of materials can also complete mixing, stirring and cooling operations,  it is suitable for shipping truck and warehouse of various material and Conveying powder particles, such as industry,Power plant,  grain or oil,chemical, metallurgical, paper making and so on.Such as materials,cement, concrete, coal dust, soda ash, flour, grain, paper pulp, etc.

Technical Parameters

 Packaging and shipping

1. Export packing.(Wooden case, carbon cast and pallet).

2. Container (as customer requirements)

3. It is suitable for long distance ocean transportation.

Please tell us the following technical parameters before ordering:

Q: What 's the material will be lifted?please tell us more material features.

Q:What's the conveying length between the inlet with outlet?

Q:What's the conveying capacity do you want?

Company qualification certificate

Company advanced processing equipment
