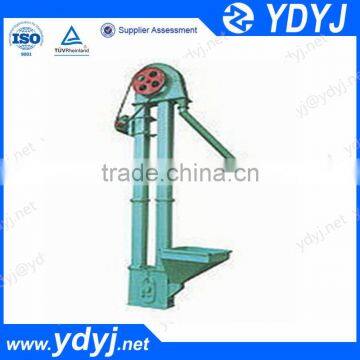

China supplier Vertical Grain Belt Bucket Elevator

China supplier Vertical Grain Belt Bucket Elevator

Specifications

1.Belt Bucket elevator with Rectangular DOUBLE CHANNEL closed case.
2. Flanged structure and bolt connection.
3. Large lifting capacity.
4. ISO,TUV, SEW,FLENDER.

Operating principle

When the driving device of bucket elevator start working , it drives the puley to make the belt with plastic buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The belt bucket elevator is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.

Application scope

Belt Bucket elevator is widely used in grain and oil, metallurgy, cement, chemical, light industry and so on. It is used for lifting grain ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.

Main Features

Machine Parts

Name: Plastic bucket

Brand: YIJI

Original: China

Plastic bucket can provide high density polyethylene, nylon, polyurethane three materials.With high strength, corrosion, resistance, smooth surface, in line with the national food installation standards.Light weight, prolong the service life of the lifting belt.Toughness is good, the material crushing rate is low.

Main Features

Name: Lifting Belt
Brand: YIJI
Original: China
Lifting belt with cotton canvas, nylon and polyester three knids of materials.

According to the different use of the environment, lifting belt is divided into ordinary, heat, cold, acid and alkali resistance, oil resistance, food conveyor belt and other models.

Machine Parts

Name: Head section
Brand: YIJI

Original: China

The head section comprises head roller, bearing assembly, discharge port, observation door, blocking alarm and so on.

After the material is raised, discharge at the discharge port at the head.

Main Features

Name: Middle section
Brand: YIJI

Original: China
The middle casing is finished by the plasma cutting machine, shape rules, high precision. Bucket elevator has a good sealing performance with the rectangular closed casing, no leakage in the conveying process.The segments are connected by bolts, using the sealing gasket and sealant to seal.

Name: Tail section
Brand: YIJI
Original: China

The tail section comprises tail roller, bearing assembly, inlet port, observation door, speed sensor and so on.
The material is added at the tail inlet,then to be promoted.
Speed sensor is installed on the shaft of tail and used to detect the speed of equipment whether it is normal, and convey the signal  to the electronic control system.
