Product Details
| Condition | New | Type | Other, belt conveyor | |
| Material | Polyester | Material Feature | Oil Resistant | |
| Structure | Belt Conveyor | Load Capacity | 30-1000t/h, 80-900T/H | |
| Place of Origin | Henan, China | Brand Name | Yufeng | |
| Model Number | B type | Voltage | 380V | |
| Power(W) | 3-7.5kw | Dimension(L*W*H) | depends on type | |
| Certification | CE & ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction of Belt Conveyor/conveyor belt
Belt conveyer is widely used in mining, metallurgical and coal enterprises. It is used to transport bulky materials or articles. according to conveying technological requirements, it can transport single one or inclined conveying system composed of multi conveyers or units with other conveyer can be made for different arrangements. Its conveying capacity can amounts to 120 m3/h, and steeplifting height is 80m. China Fire-proof belt conveyor for gravity materials convey machinery

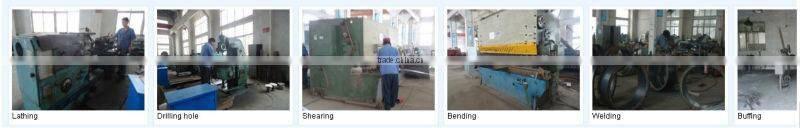

How does Yufeng manufacture the belt conveyor?
For Yufeng company, general belt conveyor, there are some series. The total design of our belt conveyor is according to the requirement of Belt conveyor technical specification book, follows the relative standard and technical safety specification of current fire power plant, metallurgy, port etc. industries, uses the ripe design experience of domestic and international companies for reference, combines the specific requirement and special climate condition and working condition of project to design and make sure the equipment can meet the requirements of safe and reliable operation and running. China Fire-proof belt conveyor for gravity materials convey machinery
What is the drive of the Belt Conveyor?
Many drive scheme: for long distance belt conveyor with complex running line, the normal drive sheme can not meet the requirement of start and running. we'd better adopt such drive unit with controllable start and brake function to control the belt conveyor and make sure it can be started and braked according to the ideal start and brake speed curve, and in this way, we can decrease the dynamic load of belt and carring parts. The main methods are:solid state step-down soft start method, AC frequency coversion speed adjustment drive method, CST controllable start and brake method, soft start method of winding motor series-wound resistor in rotor circuit, liquid visocosity soft start method, hydraulic motor drive method and fluid coupling drive method etc. China Fire-proof belt conveyor for gravity materials convey machinery

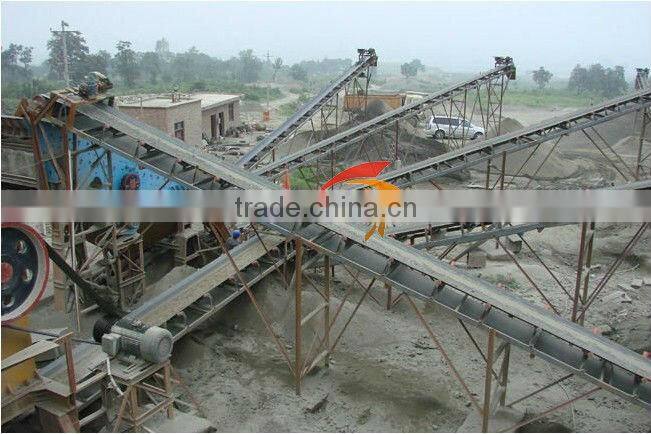

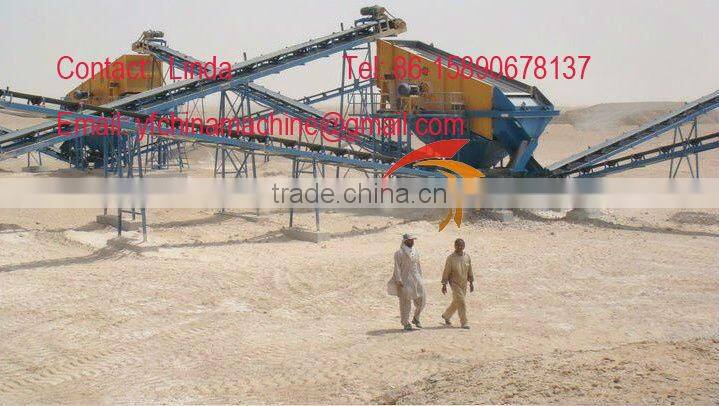

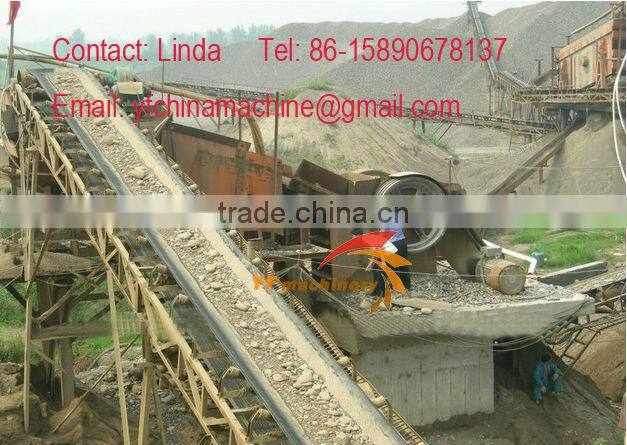

What is the application of Yufeng Belt Conveyor?
Mining Belt Conveyor is widely used to transfer sandy ,coal or lump material, metallurgy or packaged material in the production areas for departments of light industry, electron, home appliance, food, tobacco,port etc. According to different transferring equipment, the transfer system can be one independently or multi-conveyers or combined with other transfer equipments.The belt conveyer can be installed horizontally or a slope to meet the needs of different transfer lines. Mining equipment belt conveyers are adaptable for stationary and mobile crushing plants. China Fire-proof belt conveyor for gravity materials convey machinery
What is the working condition of the Belt Conveyor?
It can be operated in the circumstance temperature ranging from -20 centigrade to +40 centigrade. The temperature of transferred material by this belt conveyor should be lower than 50 degree.The line support can adopt alumina or steel structure. The line can realise straight convey, turning, upslope or downslope convey as well as continuous convey, interval convey, convey at adjustable speeds by the support of control system. China Fire-proof belt conveyor for gravity materials convey machinery
How does Yufeng supply Service for the Belt Conveyor?
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
What information you need to confirm for the quotation?
1 What's the material you are going to deal with ?
2 What are the physical characteristics of the material? Such as the size,temperature,density,moisture content,etc
3 What's the producing capacity you are going to achive?
Technical parameters of Yufeng Belt Conveyor:
Belt Width (mm) | Belt Length (m) / Power (kw) | Conveyor speed (m/s) | Capacity (t /h) | ||
400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/3.0-7.5 | 1.25-2.2 | 30-60 |
500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 45-100 |
650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 70-120 |
800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 120-180 |
1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2.0 | 160-250 |
1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 200-400 |
1400 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 500-1000 |
