Home > Products > Sand/stone Production Line > Vibrating Feeder, Vibration Feeder, Feeding Machine as feeding device of sand making line Yufeng Brand
Vibrating Feeder, Vibration Feeder, Feeding Machine as feeding device of sand making line Yufeng Brand
- 90 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Yufeng | |
| Model Number | GZD |
Product Description
Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln , Lime and Cement production equipment and other equipments.

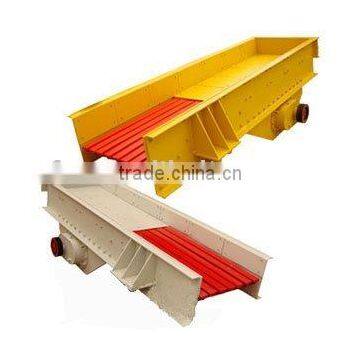

Vibrating Feeder
The Vibrating Feeder can send shaped and granule materials into receiving equipment evenly, timely and continuously. The vibrating feeder can feed the crusher continuously and classify the material primarily in sand production line. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and mill.
Working Principle Of Vibrating Feeder:
The Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen material, making the crusher more powerful.Proven performance and maintenance free operation make our vibrating feeders the first choice in feeders for the most demanding applications including public utilities, mining, metals production, food processing, cement, and other industries.
Features Of The Vibrating Feeder:
1.Smoothly vibrating, Long service life
2.Vibrating force adjustable, Flow rate changeable and controlled at any time
3. Low noise and power consumption
4. Simple Structure, convenient installation and using
Main Specifications Of Vibrating Feeder:
Model | Feeding Chute Size (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (kg) | Overall Dimension (mm) |
GZD-750×2500 | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580×1100×1400 |
GZD-850×3000 | 850×3000 | 400 | 80-120 | 2X2.2 | 3895 | 3110×1800×1600 |
GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
GZD-1500×6000 | 1500×6000 | 800 | 500-700 | 30 | 8670 | 6082×2995×2095 |
....
