Home > Products > Sand/stone Production Line > high quality vibratory feeder

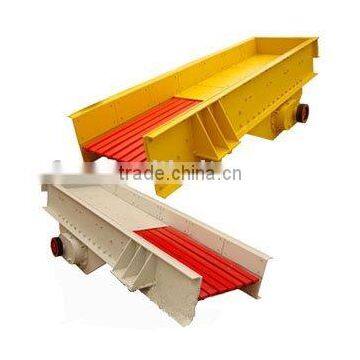

high quality vibratory feeder
- 100 Set / Sets per Month
- Tianjin Shanghai
- T/T
You May Like
-
Vibrating feeder as feeding device of sand making line Yufeng Brand
-
Vibrating Feeder, Vibration Feeder, Feeding Machine as feeding device of sand making line Yufeng Brand
-
Vibrating Feeder, Vibration Feeder, Feeding Machine as feeding device of sand making line Yufeng Brand
-
GZD series vibrating feeder yufeng brand
-
GZD series vibrating feeder with high efficiency
-
GZD/ZSW Linear Vibrating Feeder ZSW-600x300
Product Details
| Condition | New | Capacity(t/h) | 80-600 | |
| Place of Origin | Henan, China | Brand Name | Yufeng | |
| Model Number | GZD series |
Product Description
Vibratory feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc..
Characteristics of Vibratory Feeder:
Stable vibration, reliable operation and long service life; the excitation force and materials quantity moving in the feeder can be adjusted conveniently and easily; the vibrating motor, as the excitation source, has low noise, small power consumption, good adjusting performance and without material splash. Simple structure, reliable running, convenient installation, light weight, small size, easy maintenance, and the enclosed type can prevent dust pollution.
Main technical parameters:
Model | Max. feed lump size(mm) | Capacity(t/h) | Electric motor power(kw) | Installation slope() | Weight (kg) | Size of funnel (mm) | Overall dimensions L*W*H(mm) |
GZD-650*2300 | 300 | 80 | 1.5*2 | 10 | 2798 | 650*2300 | 2300*1360*780 |
GZD-750*2500 | 350 | 100 | 1.5*2 | 10 | 3260 | 750*2500 | 2500*1460*780 |
GZD-850*3000 | 400 | 120 | 3*2 | 10 | 3607 | 850*3000 | 3110*1800*1600 |
GZD-1000*3600 | 500 | 150 | 5.5*2 | 5 | 3895 | 1000*3600 | 3850*1950*1630 |
GZD-1100*4200 | 580 | 240 | 5.5*2 | 5 | 4170 | 1100*4200 | 4400*2050*1660 |
GZD-1100*4900 | 580 | 280 | 7.5*2 | 5 | 4520 | 4900*1100 | 5200*2050*1700 |
GZD-1300*4900 | 650 | 450 | 11*2 | 5 | 5200 | 4900*1300 | 5200*2350*1750 |
ZSW-380*95 | 500 | 96-160 | 11 | 0 | 4082 | 3800*960 | 3920*1640*1320 |
ZSW-490*110 | 630 | 120-280 | 15 | 0 | 5352 | 4900*1100 | 4980*1830*1320 |
ZSW-600*130 | 750 | 400-560 | 22 | 0 | 7800 | 6000*1300 | 6082*2580*2083 |
....
