B500*8m Belt Conveyor Used for Pellet Plant
- China port
- T/T
You May Like
Product Details
| Condition | New | Type | Other, belt conveyor | |
| Material | Rubber | Material Feature | Fire Resistant | |
| Structure | Belt Conveyor | Load Capacity | 600t/h | |
| Place of Origin | Henan, China | Brand Name | yufeng | |
| Model Number | belt conveyor | Voltage | 380V/50HZ | |
| Power(W) | 3 | Certification | ISO&CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
B500*8m belt conveyor
Belt Conveyor Specifications
1. high slope angle.
2. vertical conveying.
3.large capacity.
4.heat resistant.
Belt Conveyor descriptions
Belt conveyor is adaptable to both stationary and mobile crushing plants, it is widely used in mining,
metallurgical and coal industry to transfer sandy or lump materials, or packaged materials. The
transfer system can be one single or multi-conveyors or combined with other transfer equipments
according to various transferring requirements. And belt conveyor can be installed horizontally or aslope to meet the needs of different transfer lines.
Belt conveyor structure
Belt conveyor consists of frame, conveying belt, belt roller, tensioning device, driving device and so on.
Connected by the perfect steel plate, different height of the back and forth landing leg forming the
rack, there is a certain inclination angle between the plane and the ground. Installing belt roller and
touch roll on the rack for driving and supporting the conveying belt. It has two kinds way to drive
itself, one kind is with speed reducer and the other kind is with electric roller.
Belt conveyor Main parameters
Bell width | Length(m)/power(kw) | Speed(m/s) | Capacity(t/h)
| ||
500 | <=12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 78-191 |
650 | <=12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 131-323 |
800 | <=6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 278-546 |
1000 | <=10/5.5 | 10-20/7.5-11 | 20-40/11-22 | 1.3-2.0 | 435-853 |
1200 | <=10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 655-1284 |
1400 | <=10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 655-1284 |
1600 | <=10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 655-1284 |
belt conveyor

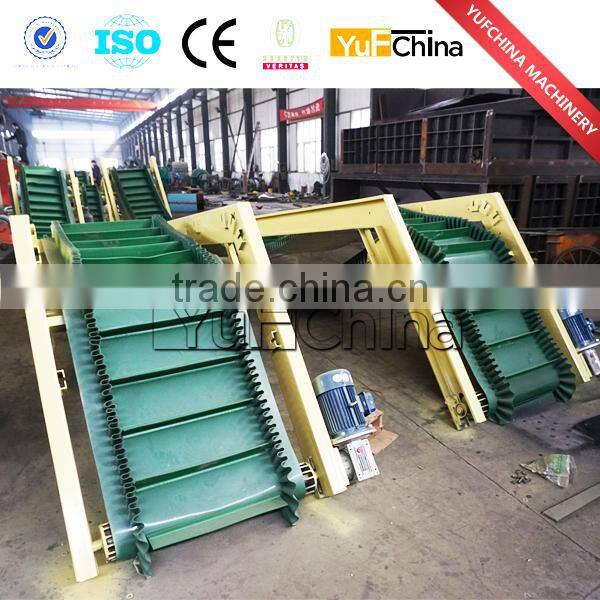

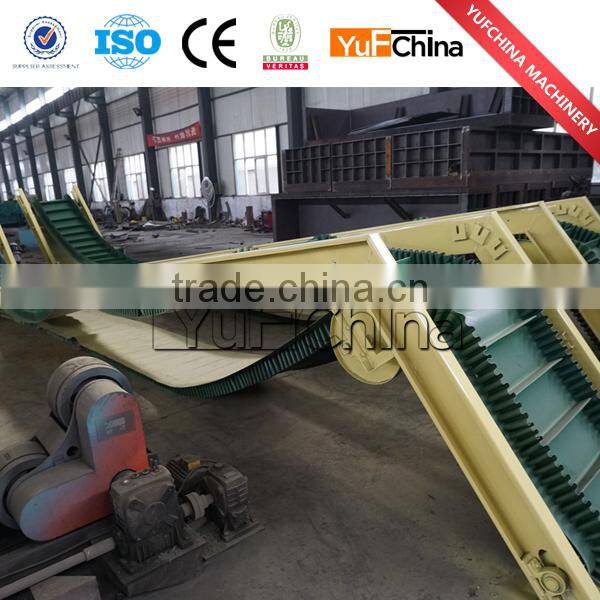

Rubber belt conveyor delivery photos

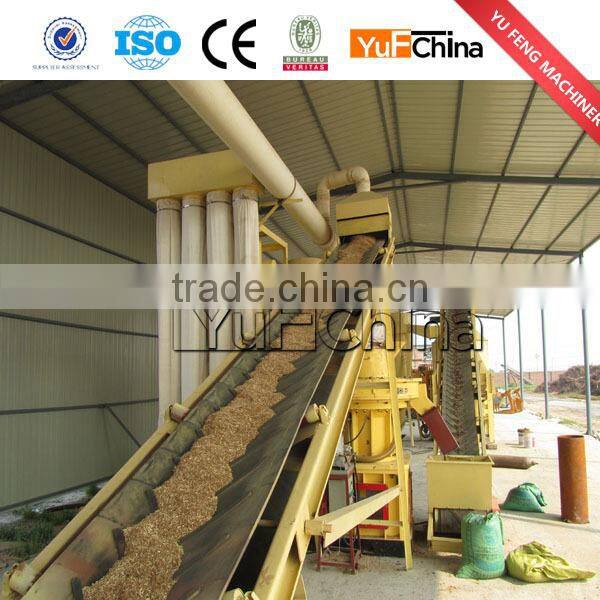

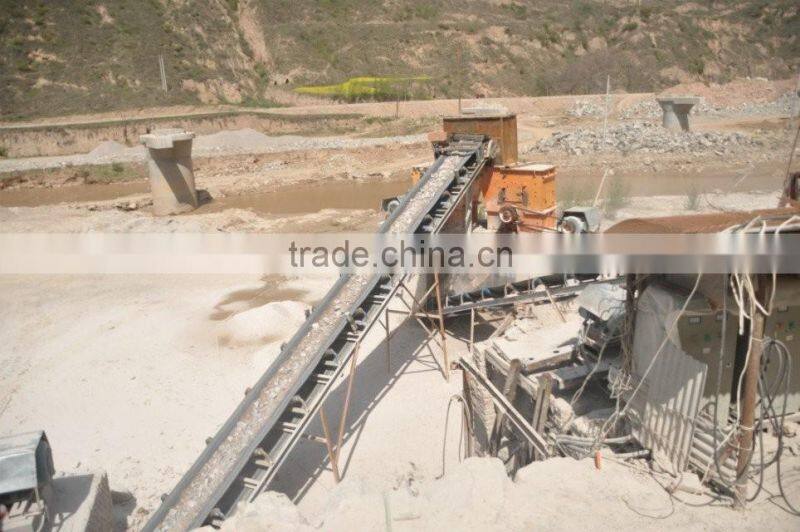

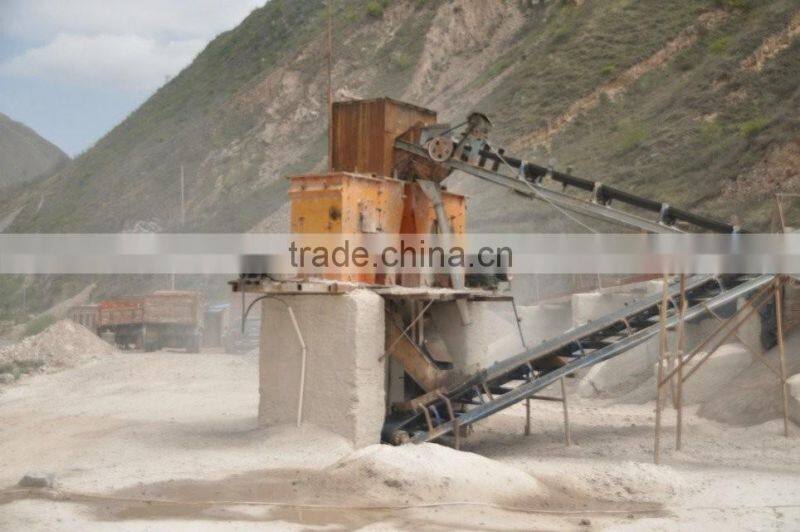

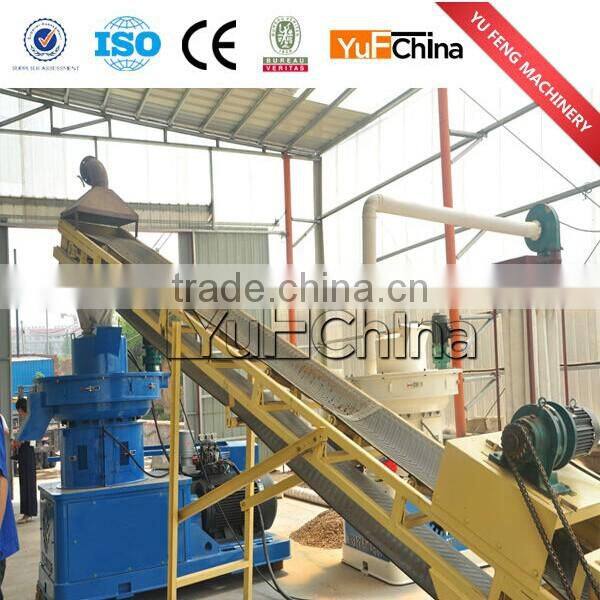

Rubber belt conveyor working site
