PE Series Stone Jaw Crusher Machinery
- Tianjin Shanghai
- T/T
You May Like
-
Rock Gypsum Stone Jaw Crusher Stone Crushing and Screening Machinery
-
Gypsum Stone Jaw Crusher Stone Crushing and Screening Machinery
-
Limestone Marble Stone Crusher Crushing and Screening Machinery
-
Yufeng Brand Small Jaw Crusher
-
Small Stone Jaw Crusher for Sale
-
Yufeng Brand Hot Sell Stone Jaw Crusher With ISO9001:2008
Product Details
| Condition | New | Type | Other, jaw crusher / stone crushing machine / stone crusher / stone making | |
| Capacity(t/h) | 1-105 t/h | Place of Origin | Henan, China | |
| Brand Name | Yufeng | Model Number | PE series and PEF series |
Product Description
stone crusher stone crushing machine jaw crusher
Application of Jaw Crusher:
Jaw Crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
The Features of Jaw Crusher:
1. Jaw Crusher is of various types;
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
3. The operating principle of Jaw Crusher is easy to be operated;
4. The structure of Jaw Crusher is simple and it is easy to maintain;

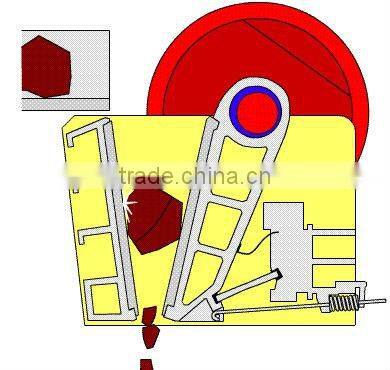

Operating principle:
uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Main technical parameters:
Model | Input size(mm) | Max feed size(mm) | Capacity (t/h) | Attached motor | Overall dimensions (mm) | Weight (t) | |
Model | Power(kw) | ||||||
PE150×250 | 150×250 | 125 | 1-3 | Y132S2-4 | 5.5 | 896×745×935 | 0.8 |
PE250×400 | 250×400 | 210 | 5-20 | Y180L-6 | 15 | 1430×1310×1430 | 2.5 |
PE400×600 | 400×600 | 320 | 25-64 | Y225M-6 | 30 | 1700×1732×1653 | 6.3 |
PE600×900 | 600×900 | 500 | 56-192 | Y315S-6 | 75 | 2290×2206×2370 | 18.5 |
PE900×1200 | 900×1200 | 750 | 90-220 | Y315L1-6 | 110 | 3800×3166×3045 | 48 |
PE500×750 | 500×750 | 425 | 15-65 | Y280M-6 | 55 | 2035×1921×2000 | 13 |
PE750×1060 | 750×1060 | 630 | 105-195 | Y315M-6 | 90 | 2655×2302×3110 | 28 |
PEX150×750 | 150×750 | 120 | 8-35 | Y160L-4 | 15 | 1215×1527×1031 | 3.5 |
PEX250×1000 | 250×1000 | 210 | 13-50 | Y250M-6 | 37 | 1550×1964×1380 | 6.5 |
PEX250×1200 | 250×1200 | 210 | 20-85 | Y250M-6 | 37 | 2192×1900×1950 | 8.5 |
....
