Home > Products > Coal gasifier > Coal gas generator for Steel Mill
Coal gas generator for Steel Mill
- 50 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
Condition | New | Place of Origin | Henan, China | |
Brand Name | YUFNEG | Model Number | QM3.0 | |
Usage | Other, generating coal gas | Production Rate | 5100Nm3/h | |
Voltage | 380V | Power(W) | 24kw | |
Certification | CE, ISO | Warranty | 24months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yufeng Brand Double Stage Coal Gasifier, Single Stage Coal Gasifier, Professional Manufacturer of Coal gasifier, Coal gas producer, Coal gas generator
what's the coal gas generator?
The coal gas producer is a equipment that use coking coal, anthracite, weak conherent charcoal as fuel, air and steam as vaporization medicinalpreparation to produce gas as heat source.
What' the coal gas generator used for?
it is widely used in the enviroment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerater, glass melting gas furnace, ceramic gas furnace, smoke exausting refractory kiln and tunnel kiln, as well as the renovation of furnaces that burn coal or oil, kilns, and equipment that needs heat such as metallurgy, chemical industry, allumim, fire-resistant materials, glass products and existing kiln,with very good effect.ect.
Specifications of Coal gas generator
Model | QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 | QM1.8 | QM2.0 | QM2.4 | QM2.6 | QM3.0 | QM3.2 |
Chamber diameter(mm) | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 | 3200 |
Hearth active surface(m2) | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 | 8.04 |
Suirable fuel | weak coherent gas carbon,anotherracite,burnt carbon | ||||||||||
Fuel granularity(mm) | 25-80 | ||||||||||
Fuel consumption quantitykg/h | 40-100 | 70-140 | 120-190 | 160-350 | 350-460 | 500-600 | 500-720 | 700-1040 | 850-1200 | 1700-2000 | 1800-2200 |
Gasifying agent | Air ,steam | ||||||||||
Gas yieldNm³/h) | 140-350 | 245-490 | 420-670 | 560-1200 | 1200-1600 | 1500-2100 | 1750-2500 | 2500-3600 | 3000-4300 | 6000-7000 | 6500-7500 |
Gas calorific valu(Kj/Nm³ | 5020-5670 | 5020-6000 | |||||||||
Water jacket heating area() | 4.02 | 5.02 | 6.78 | 10.37 | 11.06 | 12.44 | 17.58 | 21.87 | 23.69 | 30.16 | 32 |
Steam outputkg/h | 60 | 80 | 130 | 200 | 220 | 260 | 350 | 420 | 600 | 840 | 200 |
Gas outlet temperature() | (400-500)Plants related with the coal | (400-500)Plants related with the coal | |||||||||
Gas outlet pressure(Pa) | 1000 | 980-1470 | 1470-1960 | 980-1470 | |||||||
Gas exportation diameter(mm) | 219 | 325 | 325 | 426 | 426 | 529 | 630 | 720 | 820 | 1020 | 900 |
Air pressure(Pa) | 3000 | 4000 | 3000 | ||||||||
Saturated air temperature() | 50-60 | 50-65 | |||||||||
Ashpan rotational speed(r/h) | 0.177-1.77 | ||||||||||
Equipment gross weight(t) | 3.5 | 4.5 | 5 | 7.5 | 10 | 20 | 23.4 | 29.8 | 32 | 37.6 | 16 |
Complete machine power(kw) | 6 | 6 | 6 | 7 | 8 | 10 | 14 | 20 | 20 | 27 | 7 |
Tuyere diameter(mm) | 108 | 108 | 140 | 165 | 219 | 325 | 325 | 426 | 426 | 426 | 219 |

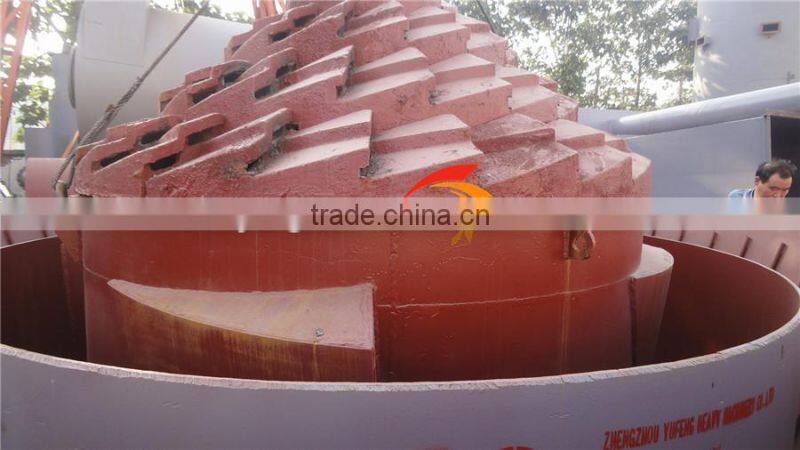

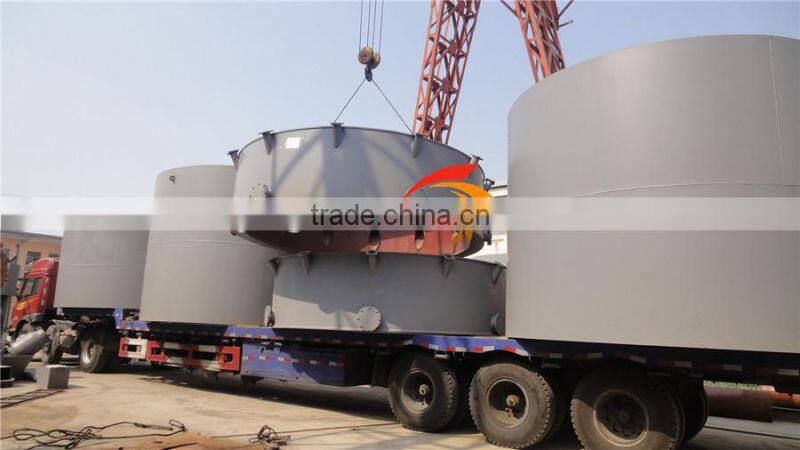

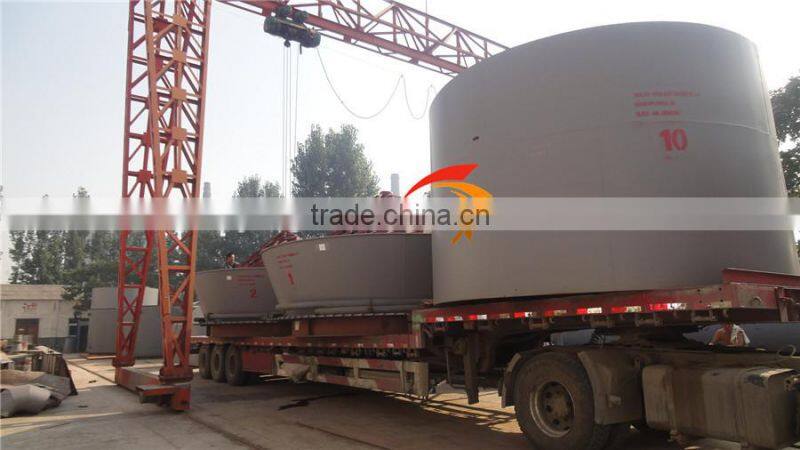

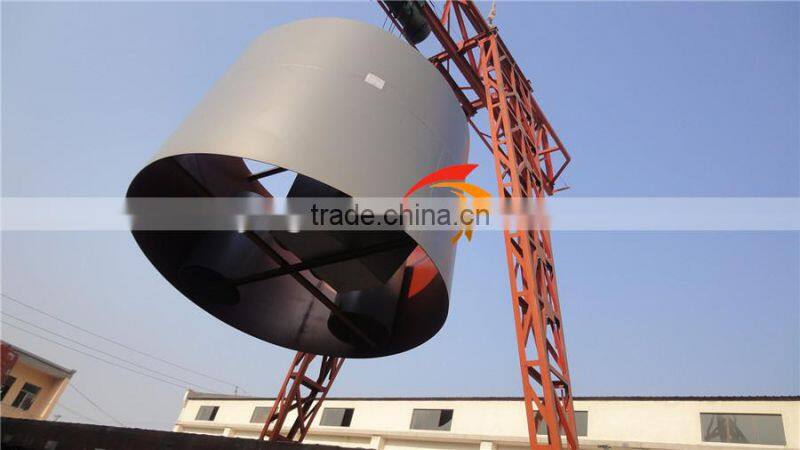

Shipping photos of double stage QM3.6:
Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
1. We are factory(NOT Dealer)
2. We own our factory & Land (NOT Rent)
3. Staff reside in factory(Stable Workforce)
If you have any other questions about our products, you may contact Marcie through skype: yufmachinery or mobile: 0086 15890080350.
...
