Yufeng Brand wood sawdust pellet mill, wood pellet machine

Raw material

Wood Pellets are mainly made from any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc..

Advantage of  wood pellet machine production line

 1. Formation rate:98%,high output and low investment

 2.Double layer die can use twice,reduce cost for customers.

 3. Machine run stale.

 4. Auto lubricate system, low consumption.

 5. Finished pellets satisfy Europe standard.

Process of wood pellet machine production line

1.Crushing process of wood pellet machine production line

2. Drying process – Rotary Dryer of  wood pellet machine production line

 The best moisture content to pelletizing is about 11-17%. Our rotary dryer is made up of burning stove and main rotary dryer which is high efficiency in drying the wood and biomass material. It can realize to reduce the moisture from 50% to 10%. The rotary dryer uses steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellet plant to using moisture detector which will determine the most suitable moisture before pelletizing.

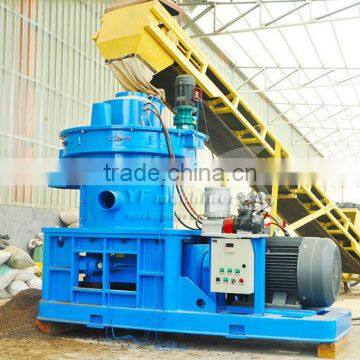

 3.Pelletizing pocess - Wood pellet mill of  wood pellet machine production line

Pellet mill is the heart of the wood pellet production line, and has reliable running performance . It is special designed for compacting of wood, straw, and other biomass sources into pellets. Capacity ranges from 1T to 10T per hour. You can choose ring die pellet mill or flat die pellet mill depend on your capacity requirement. Our YFZG series Ring die pellet mill is best choice for large scale production, while, YFZG series flat die pellet mill is suitable for small pellet production line. Please feel free to contact us for more information.

4. Cooling process

Usually after pelletizing, the temperature of wood pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and the moisture content, also help screen good and pure pellets. However, considering the feedback from some foreign clients, the local climate is very humidity, they hope to cool the wood pellets with moisture 7-8%. In order to satisfy different needs from different clients, we develop one kind of new Stabilizer Combined Cooler.

5. Packing process

After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the wood pellet affected with damp, the packing process is very necessary. The packing process is effectively handled by our Semi-Auto Packing Machine.
