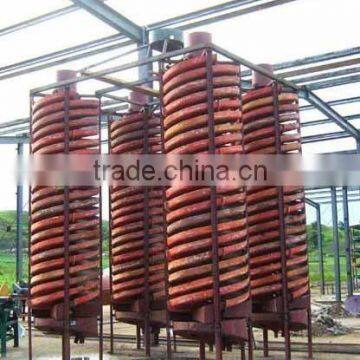

ilmenite, chromite, pyrite, zircon, rutile, monazite, P B ore, tungsten upgrading spiral chute
Negotiable
/ Set
1 Set(Min.Order)
- Qingdao
- T/T Credit Card
You May Like
-
iron ore upgrading spiral chute
-
spiral chute high concentration ratio
-
pyrrhotite iron ore upgrading magnetic separator
-
magnetite, pyrrhotite, roasted ore and ilmenite upgrading magnetic separator
-
manganese ore iron ore upgrading magnetic separator
-
Magnetic Separator,Iron Benefication Equipment for sale
Product Details
| Condition | New | Type | Sprial Separator | |
| Place of Origin | Henan, China | Brand Name | Yufeng | |
| Model Number | 5LL-1200 |
Product Description
Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln , Lime and Cement production equipment and other equipments. We welcome all friends from home and abroad to visit our company to check the high quality products. Our service center sincerely hopes that we can have a successful cooperation
Spiral chute is applicable to material separation of size 0.3 - 0.02 mm, such as of Iron ore, Ilmenite, Chromite, Pyrite, Zircon and Rutile, Monazite, Tungsten ore, Tin, Tantalum ore, Niobium mine and other non-ferrous metals, precious metals and non-metallic minerals, which with proportion differences.
Working Principle of Spiral chute:
In order to have a good separation, there should be a difference in Specific Gravity’s of at least 1.0. One main benefit of spiral concentrators is they have no moving parts. The feed range, in percent solids, to a spiral ranges from 20% solids up to 40% solids. Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
Slurry is pumped to the top of the spiral (typically 13’ to 15’ from the floor), and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral (perimeter), while particles with the greatest density migrate towards the inside of the spiral.
Technical parameters of Spiral Chute
Model | D12000 | D11500 | D11200 | L1900 | L1600 | L1400 |
External diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 |
Internal diameter(mm) | 2000 | 150 | 1200 | 900 | 600 | 400 |
Pich of screw(mm) | 1200 | 900 | 720/540 | 540/360 | 390/360 | 180 |
Rate | 0.6 | 0.6 | 0.6 | 0.4/0.6 | 0.4 | 0.45 |
Gradient | 9 | 9 | 9 | 9 | 9 | 9 |
Number of turns | 3.5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 |
Max.feed size(mm) | 0.04-4 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 |
Mine density(%) | 20-40 | 20-45 | 30-50 | 30-50 | 30-50 | 30-50 |
Capacity(L/h-1) | 15-45 | 10-25 | 4-6 | 2-3 | 0.8-12 | 0.5-0.2 |
Area | 5,7 | 5,8 | 2 | 1,2 | 0.5 | 0.25 |
Height(m) | 6.8 | 6.1 | 5.23 | 4 | 2.6 | 1.3 |
...
