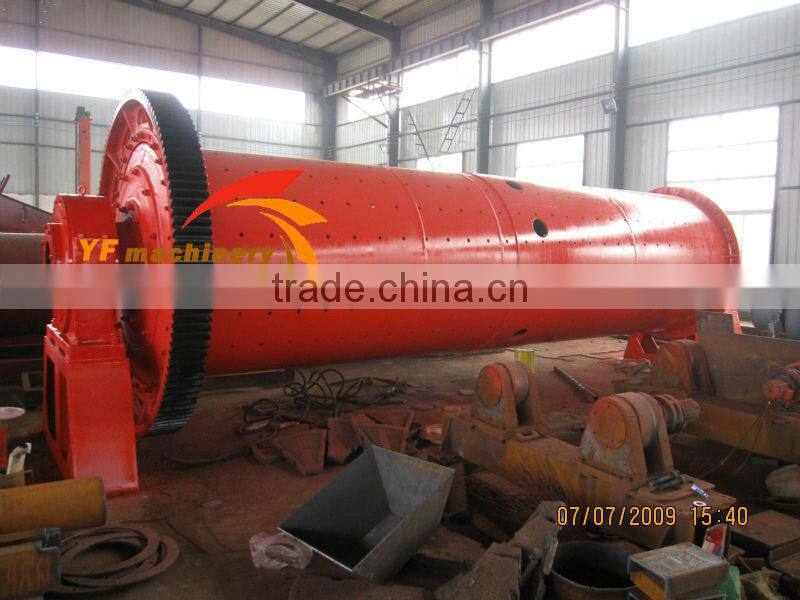

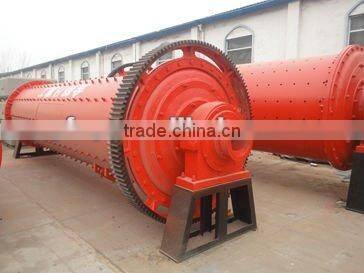

Ball Mill for Grinding Copper Ore
- China port
- T/T
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 15/18.5/30/45/75/110/135/210/245/380/400/800 | |
| Capacity(t/h) | 500t/h | Place of Origin | Henan, China | |
| Brand Name | yufeng | Model Number | ball mill | |
| Weight | 3.4/7.78/8.65/14/14.12/15.64/28/32/44/63/102/137 | Certification | ISO&CE | |
| Warranty | 2 years(except the easy damaged parts) | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ball mill Descriptions
Ball mill is the key equipment for grinding after the crushing process.It is widly used in the processing of cement, silicate, new building material, refractory material, fertilizer, ferrous and nonferrous metal, glass as well as ceramics. It is used to grind dry or wet ores and other materials of grindability.
Ball Mill Features:
1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
Ball Mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Specifications
Type | Model | drum (mm) | volume (m3) | revolution (r/min) | motor (KW) | discharging size (mm) | Output (t/h) |
Wet-Grate Ball Mills | MQ1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.3-0.074 | 6.1-3.1 |
MQ2130 | 2100×3000 | 9.2 | 22.2-25.2 | 210 | 0.3-0.074 | 14-6.4 | |
MQ2430 | 2400×3000 | 12.2 | 20.8-23.5 | 240 | 0.3-0.074 | 18.5-8.7 | |
MQ2736 | 2700×3600 | 18.4 | 19.6-22.2 | 400 | 0.3-0.074 | 28-13 | |
MQ3245 | 3200×4500 | 32.8 | 18-20.4 | 800 | 0.3-0.074 | 49-24 | |
MQ3660 | 3600×6000 | 54.4 | 17-19.2 | 1600 | 0.3-0.074 | 82-38 | |
Dry-Grate Ball Mills
| MQG1515 | 1500×1500 | 2.2 | 26.5-29.8 | 60 | 0.4-0.074 | 5.2-1.9 |
MQG1522 | 1500×2250 | 3.4 | 26.5-29.8 | 75 | 0.4-0.074 | 10.2-2.7 | |
MQG1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.4-0.074 | 14-3.6 | |
MQG2122 | 2100×2200 | 6.7 | 22.2-25.2 | 155 | 0.4-0.074 | 25-5 | |
MQG2424 | 2400×2400 | 9.8 | 20.8-23.5 | 210 | 0.4-0.074 | 29-7.5 | |
MQG2430 | 2400×3000 | 12.2 | 20.8-23.5 | 240 | 0.4-0.074 | 38-9.5 | |
Over-flow Ball Mills
| MQY1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.3-0.074 | 6-2.8 |
MQY2136 | 2100×3600 | 11 | 19-25.2 | 210 | 0.3-0.074 | 12.8-6 | |
MQY2430 | 2400×3000 | 12.2 | 17.8-23.5 | 240 | 0.3-0.074 | 16.6-7.8 | |
MQY2740 | 2700×4000 | 20.4 | 16.8-22.2 | 400 | 0.3-0.074 | 27.7-13 | |
MQY3254 | 3200×5400 | 39.4 | 15.5-20.4 | 1000 | 0.3-0.074 | 52.8-25.9 | |
MQY3660 | 3600×6000 | 54.4 | 14.5-19.2 | 1250 | 0.3-0.074 | 74.1-32.4 |
...
