- Zhengzhou Yufeng Heavy Machinery Co., Ltd.
-
Zhengzhou, Henan, China
- Main products: Mining Machinery Ball Mill, Crusher, Flotation Machine, Magnetic Separator, Spiral Classifier, Sand Washer, Spiral Chute, Drying Equipment, Building Material Equipment AAC Plant, Cement Plant, Pellet Production Line, Briquette Machine, Sand Making Plant

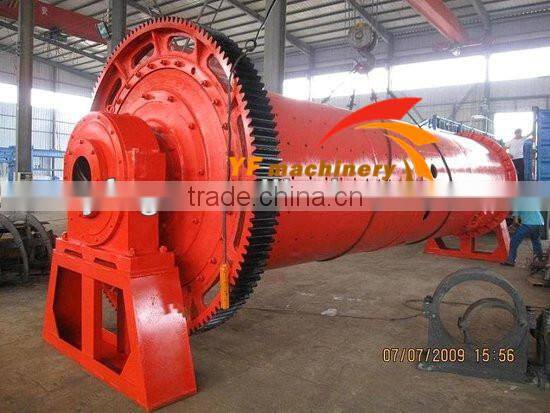

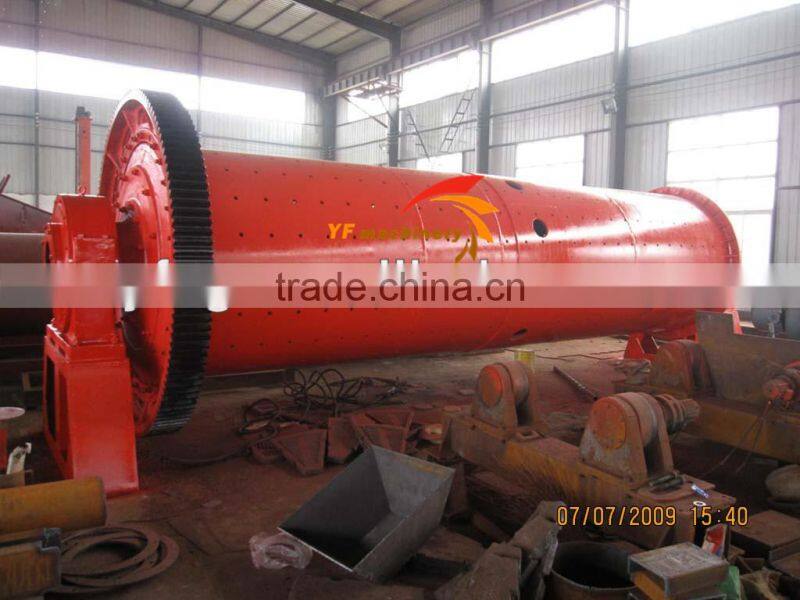

Mineral Crushing Line Ball Mill,rod Mill for Sale
- Qingdao/Shanghai/Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Other, rod mill | |
| Motor Type | AC Motor | Power(W) | 22/30/45/55/95/110/130/210 | |
| Capacity(t/h) | 6-400t/h | Place of Origin | Henan, China | |
| Brand Name | yufeng | Model Number | MB | |
| Weight | 5700/5880/13700/17700/17200/21500/24400/35830/40000 | Certification | ISO&CE | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Rod mill Features:
1)High-efficiency
2)Energy saving
3)High quality ISO9001-2008,Big capacity
4)Professinal Manufaturer
Rod Mill Introduction
Our company supply all kinds of ball mill,cement machinery,cement mill, high quality, big capacity.Rod Mill grinds material by rotating a cylinder with ceramic grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter,the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.
Rod mills Working Principle
The rod mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of ceramic ball in the chamber. The centrifugal force caused by rotation of barrel brings the ceramic ball to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
rod mill parameter:
Type
| Diameter | Length | Speed | Weight | in size (mm) | Out size (mm) | Capacity t/h | Power /kw | Overall /mm | Weight /kg |
MB0918 | 900 | 1800 | 29-31.3 | 2.3 |
<25
|
0.16-5 | 1.6-6 | 22 | 5900×2365×2015 | 6200 |
MB0924 | 900 | 3400 | 29-35.4 | 3.1 | 2.9-10 | 30 | 5250×2480×2127 | 6600 | ||
MB1224 | 1200 | 2400 | 27-34 | 6.5 | 5.-13 | 55 | 5829×2867×2540 | 13500 | ||
MB1530 | 1500 | 3000 | 26.5-29.5 | 11.5 | 6-25 | 95 | 7635×3329×2749 | 18170 | ||
MB1830 | 1800 | 3000 | 21.6-22.8 | 17.5 | 4.8-28 | 155 | 8007×3873×3023 | 35000 | ||
MB2 | 2100 | 3000 | 19-21 | 23.5 | 12.6-30 | 155 | 9000×2800×3800 | 43000 | ||
130 | ||||||||||
MB2136 | 2100 | 3600 | 19-21
| 23.2 | 15.1-45 | 210 | 9600×2800×3800 | 58000 | ||
MB2 736 | 2700 | 3600 | 17.2-18.5 |
| 25-75
| 400
| 10870×6100×4950 | 71500 | ||
MB2740 | 2700 | 4000 | 17.2-18.5 | 51 | 27.2-90 | 420 | 11500×6100×4950 | 73600 |
...
