Lime Grinding Ball Mill System-- YUFENG
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Superfine Ball Mill Production Line System (high Fineness and Low Consumption)--YUFENG
-
Lead and Zinc Ore ,gold Ore Processing Equipment Ball Mill
-
Mineral Processing Equipment Ball Mill,small Ball Mill
-
Saving Energy and High Efficiency Ball Mill
-
Low Cost Energy Saving Cement Making Production Line Ball Mill
-
Dry Type Small Ball Mill,used Ball Mill for Sale
Product Details
| Condition | New | Type | Ball Mill | |
| Capacity(t/h) | 1-200 | Place of Origin | Henan, China | |
| Brand Name | Yufeng | Model Number | MQYZ |
Product Description
Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deal with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln , Lime and Cement production equipment and other equipments. We welcome all friends from home and abroad to visit our company to check the high quality products. Our service center sincerely hopes that we can have a successful cooperation
Introduction of Ball Mill :
Ball mill is an efficient tool for grinding many materials into fine powder. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Application of Ball Mill:
The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.

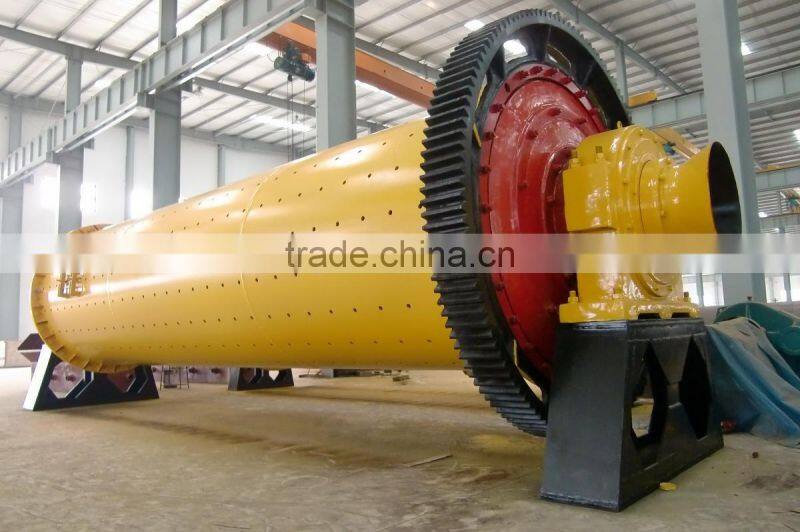

Ball Mill Working principle:
The ball mill is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Features and benefits of Ball Mill:
1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.
2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.
Overflow ball mill | ||||||||
Model | Dia. | Length | Sength | Speed | Power | Output | Capacity | Weight |
MQYZ1530 | 1500 | 3000 | 8.6 | 22.5-29.8 | ≤65 | 0.3-0.074 | 6-2.8 | 16.2 |
MQYZ2130 | 2100 | 3000 | 17.6 | 19-25.2 | ≤155 | 0.3-0.074 | 12.6-5.8 | 43.5 |
MQYZ2136 | 2100 | 3600 | 21 | 19-25.2 | ≤155 | 0.3-0.074 | 12.8-6 | 47 |
MQYZ2424 | 2400 | 2400 | 18.8 | 17.8-23.5 | ≤210 | 0.3-0.074 | 13.2-6.2 | 44 |
MQYZ2430 | 2400 | 3000 | 23 | 17.8-23.5 | ≤210 | 0.3-0.074 | 16.6-7.8 | 46.5 |
MQYZ2736 | 2700 | 3600 | 35 | 16.8-22.2 | ≤310 | 0.3-0.074 | 25-11.7 | 70 |
MQYZ2740 | 2700 | 4000 | 38 | 16.8-22.2 | ≤310 | 0.3-0.074 | 27.7-13 | 79 |
MQYZ3245 | 3200 | 4500 | 61 | 15.5-20.4 | ≤630 | 0.3-0.074 | 44-21.6 | 113 |
MQYZ3254 | 3200 | 5400 | 73 | 15.5-20.4 | ≤800 | 0.3-0.074 | 52.8-25.9 | 121 |
MQYZ3260 | 3200 | 6000 | 86 | 15.5-20.4 | ≤800 | 0.3-0.074 | 55.6-24.3 | 129 |
MQYZ3645 | 3600 | 4500 | 76 | 14.5-19.2 | ≤800 | 0.3-0.074 | 55.6-24.3 | 135 |
MQYZ3650 | 3600 | 5000 | 86 | 14.5-19.2 | ≤1000 | 0.3-0.074 | 67-28.1 | 145 |
MQYZ3660 | 3600 | 6000 | 102 | 14.5-19.2 | ≤1250 | 0.3-0.074 | 74.1-32.4 | 154 |
...
