600tpd rotary kiln/calcining kiln of oil gas coal burner
- 50 Set / Sets per Month
- Shanghai Tianjin
- T/T
You May Like
Product Details
| Condition | New | Brand Name | GMG rotary kiln | |
| Model Number | GMG Rotary Kiln | Voltage | 440V | |
| Certification | CE | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.rotary kiln2.adopt advanced instant combustion system
3.high thermal efficiency
4.burning fully,competitive price
Specification 600tpd rotary kiln/calcining kiln of oil gas coal burner:
- Rotary kiln size: 3*48M
- Rotary kiln dryer capacity: 600tpd
- Rotary kiln dryer weight: 213t
Rotary kiln Introduction:
The rotary cement kiln belongs to building equipment such as chemical rotary kiln and active lime rotary kiln.
According to different materials, there are cement kiln, metallurgy chemical kiln and lime kiln.
We can provide you these capacity rotary kiln from 300tpd to 8000tpd.
Metallurgy chemical kiln is used for metallurgy industry, for example, in iron and steel plant for magnetic roasting of depleted iron ore and oxidizing roasting of chromium and nickel iron ore; in refractory plant for roasting high alumina bauxite mine; in aluminum plant for roasting clinker aggregate, aluminum hydroxide; in chemistry plant for roasting chromium ore and similar ores.
Lime kiln (lime rotary kiln) is used to roast active lime for steel and iron plant and ferroalloy plant and lightly calcine dolomite.
Technical Data of Rotary Kiln:
| Spec(m) | Body dimension(m) | Capacity(t/h) | Rotate speed(r/min) | Power(kw) | Weight(t) | ||
| Dia | Length | Pitch(%) | |||||
| Φ1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 |
| Φ1.6*36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 |
| Φ1.8*45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 |
| Φ1.9*39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 |
| Φ2.0*40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 |
| Φ2.2*45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 |
| Φ2.5*40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5*50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5*54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7*42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8*44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0*45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 |
| Φ3.0*48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 |
| Φ3.0*60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 |
| Φ3.2*50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 |
| Φ3.3*52 | 3.3 | 52 | 3.5 | 62.5 | 0.391-3.91 | 190-220 | 280.8 |
Spare parts of cement rotar kiln :

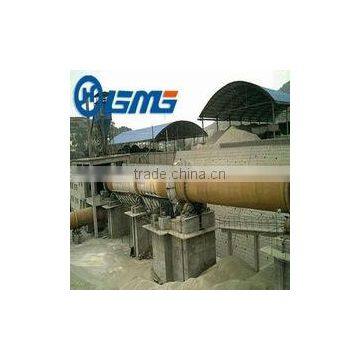

Rotary Kiln Installation Site:
Rotary Kiln Certification:
