Best Selling Widly Used in Mining Industry Rotary Scrubbers
US$ 1,000 - 100,000
/ Set
1 Set(Min. Order)
- Shanghai Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | GMG | |
| Model Number | drum scrubber | Condition | New |
Product Description
Specifications
1.large capacity and high effiency2.directly manufactuer
3.new technology
4.have exported to many countries
Drum Scrubber
Stainless steel scrubbers are robustly built steel structure with Rotary Drum fabricated out of IS 2062 plates. Drum scrubbers are used in Iron ore Beneficiation Plant to remove ore srub, the adhering impurities such as Alumina, Silica from the ore surface. These Industrial Scrubber and Drum Scrubbers are now extensively used to Iron Ore Beneficiation plant and Chrome Ore Beneficiation Plant. We are offering wide range of drum scrubber like industrial scrubber, industrial drum scrubber, scrubber machine, stainless steel scrubbers, steel drum scrubber, steel industrial scrubber.
Specifications For 100 TPH Scrubber and Industrial Scrubber
| Drum Size | 2750 mm long x 1750mm dia |
| Drive | 75 HP at 1500 RPM Slip Ring. |
| RPM of Drum | Standard 25 RPM through Single stage gearbox of ratio 6.3:1. |
| Tank Design | Drum is fitted with rubber liners. |
| The drum rotates on 4 carrier Rollers of Hardened Steel. | |
| Ore feeding is done through a feed cone with water in a ratio of 1:2, i.e.l portion of Ore and two portions of water or as desired. |
Specifications For 250 TPH Scrubber and Industrial Scrubber
| Drum Size | 4500 mm long x 2150 mm dia |
| Drive | 100 HP - 1500 RMP Slip Ring |
| RPM of Drum | Standard 25 RPM through Single stage gearbox of ratio 6.3:1. |
| Tank Design | Drum is fitted with rubber liners. |
| The drum rotates on 4 carrier Rollers of Hardened Steel. | |
| Ore feeding is done through a feed cone with water in a ratio of 1:2, i.e. 1 portion of Ore and two portions of water or as desired. |
Rotary Scrubbers are cost-effective washing units that are an integral part of a material handling system to upgrade a wide variety of primary crushed hard rock and ore.

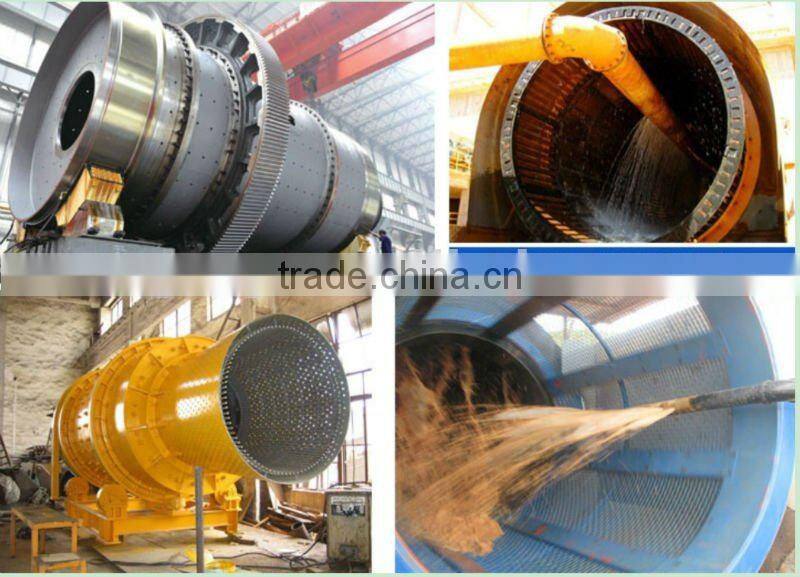

A Rotary Scrubber is a cylindrical drum with internal lifters, typically supported by trunnion rollers at either end. These high-capacity, high-retention time machines are primarily used to remove water soluble clays, deleterious materials and coatings from a wide variety of hard rock and ore.
