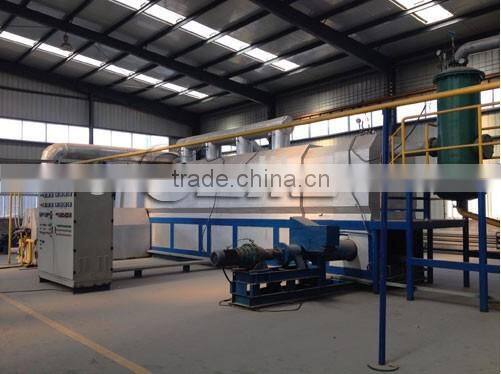

Tyre/Plastic Pyrolysis Recycling Machine

Specifications

Introduction

    According to the actual situation in every country and district, we developed series of machine for disposing scrap tyre and plastic that includes 4 tons, 6 tons, 8~10tons, (at most about 30MT per batch) of different capacity;

And series of machine for crude oil, waste engine oil, tyre oil and plastic oil after pyrolysis that includes about 4 tons and 6 tons capacity daily.

Process Description

1. a.    Waste Materials are loaded into the pyrolysis chamber by the Feeding machine or manually and then doors are locked with our tight sealed door lock design.
2. b.    System is started with the control panel operated by operator. The process is automatic and controlled by our control system. The first stage of the process is to heat up and dried up the waste.
3. c.    Pyrolysis of the waste will begin once reaching a certain temperature and the sync gas is generated from the waste.
4. d.    The sync gas will be converted into oil by the condensers and stored in the oil tank. Small quantity of sync gas which is not converted into oil is scrubbed by the scrubbing system and cleaned before released to air.
5. e.    Upon completion of the pyrolysis process, chamber will be required to cool to a certain temperature before releasing the carbon black.
6. f.     The carbon black will be released by our high speed carbon discharge system automatically and stored in a special tank which is to prevent pollution.
7. g.    Steel (for tires contain steel wires) will be removed at the final stage upon the carbon black being fully released. Steel removal requires opening the big door.
8. h.    The next batch of process can be continued.
