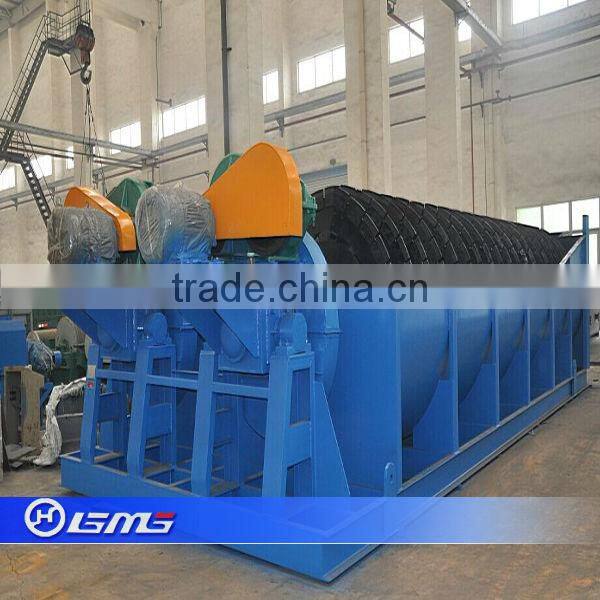

1500-3000 Tpd XL Series Ore Sand Washing Machine, Sand Washer , Screw Sand Washer for Mineral Ore

                         1500-3000 tpd  XL Series Ore Sand Washing Machine

Sand washer is suitable for washing, classifying and dewatering of sand used in construction, quarry, hydropower station, concrete dam project, pole factory, as well as "soul-rending nature sand" for casting use,quartz sand for glassworks, and pressure sand for oil well backfill. With inclination angle of 180 , a setting pond is formed and surrounede by three-side plates at the bottom of water channel.The spiral head submerges into the setting pond,the spiral rotates continuously driven by motor and reducer, and clean water is fed into setting pond through the bottom perforated plate.

Sand Washing Machine Application :

1>. Mineral  Ore  such as : gold ore , iron ore , copper ore ect.

2> Gravel

3> Crushed Rock

4> Recycled Material

5> Most kinds of bulk material that needs washed

6>   different types of Sand and Clay , such as  Silica Sand  ect ..

It is suitable for washing, grading, impurity cleaning for metallurgy industry, construction material, etc. It is the indispensable sand washing equipment for housing construction, bridge construction, highway and railway project, etc

Working Principle of Screw Sand Washing Machine

  The material pours in the from the end of input,the spiral impeller rotates by the driven of the motor and the reducer,and then push the material inside the hopper close to the end of output.Thus,under the action of being advanced,mixed and the flushing water,the mud wrapped on the material and the impurity go separately.Finally,the separated fine sands are discharged from the discharging port under the advancing movement of the spiral.Thus,the continuous work of washing sand is finished again and again.Promptly carries off the impurity and the small proportion foreign matters,and discharge from the overflow port tank washer,completes the cleaning action.The clean sand and crushed stone is carried off by the leaf blade,and ids finally poured into the discharge chute from the revolving impeller,completes the cleaning action.

Specifications of Sand Washing Machine :
