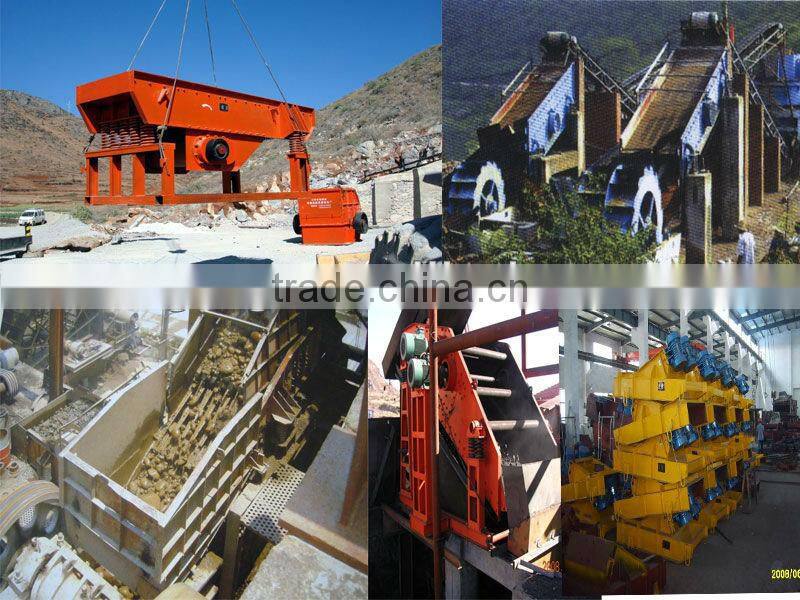

30-800 T/H Cement Vibrating Feeder for Cement Plant

FOB Price

US$ 1,800 - 138,000 / Set

1 Set(Min. Order)

Port Tianjin Shanghai Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	metallurgy, coal mine, mineral dressing, building material, chemical,
Power Type	Electric	Capacity(t/h)	30-800t/h
Place of Origin	Henan, China	Brand Name	GMG
Model Number	GZD Series	Power(W)	3.0-30 kw
Dimension(LWH)	as per specifications	Weight	0.8-7.8T
Certification	ISO CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Vibrating Feeder
1.Direct manufacturer
2.Different models in available
3.Meet export standard

The Vibrating Feeder is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

Working Principle

There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.

Characteristics of Vibratory Feeder:
Smooth vibration,
Reliable operation,
Long service life,
Low noise,
Low power consumption,
Easy to adjust,
Simple structure,
Easy to install,
Light weight,
Small volume,
Simple maintenance.

Technical Parameter of Vibrating Feeder:

Model	Max Feeding Size (mm)	Capacity (t/h)	Motor Power Pole	Power (kw)	Installation Angle	Dimensions (L×W×H) (mm)	Weight (t)	Size of Funnel (mm)
GZD-180×80	300	30-80	4	2×1.5	0-10	1907×964×890	0.8	1800×800
GZD-300×90	400	40-100	4	2×2.2	0-10	3400×1020×900	1.5	3000×900
ZSW-300×90	450	50-150	6	7.5	0	3080×1650×1180	3.5	3000×900
ZSW-380×96	500	120-210	6	11	0	3880×1724×1180	4.2	3800×960
ZSW-420×110	650	180-400	6	15	0	4200×1804×1180	4.8	4200×1100
ZSW-490×110	650	250-480	6	15	0	4976×1864×1180	5.3	4900×1100
ZSW-490×130	800	300-550	6	22	0	4976×2064×1180	6.7	4900×1300
ZSW-600×130	800	400-800	6	30	0	6100×2004×1250	7.8	6000×1300
