120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry
- Shanghai Qingdao Tianjin
- T/T
You May Like
-
30-800 T/H Cement Vibrating Feeder for Cement Plant
-
2014 New Type Industrial Vibrating Feeder for Cement Plant , Mine, Metallurgy Industry
-
GZD-300x90 Vibrating Feeder For Mining Industry /Feeding Machine /
-
Bulk or Particle Material Vibrator Feeder in Coal or Mining Industry
-
GZD-1000*3600 Quarry Electromagnetic Vibrating Feeder/vibration Feeding Machine
-
2014 Hot Sale ! 30-800 T/H Big Power Cement Clinker Vibrating Feeder/ Feeding Machine
Product Details
| Condition | New | Application | feed bulk and particle materials in sand production line,crushing etc | |
| Power Type | Electric | Capacity(t/h) | 120-560t/h | |
| Place of Origin | Henan, China | Brand Name | GMG Vibrating Screening Feeder | |
| Model Number | GZD or ZSW series | Power(W) | 3.7*2-22kw | |
| Dimension(L*W*H) | various | Weight | 3607-7800kg | |
| Certification | ce, iso90001:2008 | Warranty | 0ne year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Vibrating Grizzly Feeder1.Stable vibration
2.reliable performance
3.simple maintenance, operation
4.CE&ISO
Vibrating Feeder Specification:
Vibrating Grizzly Feeder
1.stable vibration and long service life
2.reliable running, convenient installation
3.light weight
4.best after-sale service
petitive vibrating feeder price
Applacation of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:
This vibrating feeder is mainly used to feed bulk or particle materials evenly, regularly and continuously in various fields. When used in sand production line, it can continuously feed materials for crushing machines, and also carry out coarse screening for materials.
It is widely used in crushing work in industries like metallurgy field, coal or mining industry, mineral refining field, chemical industry, grinding sector, etc.
Composition of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:

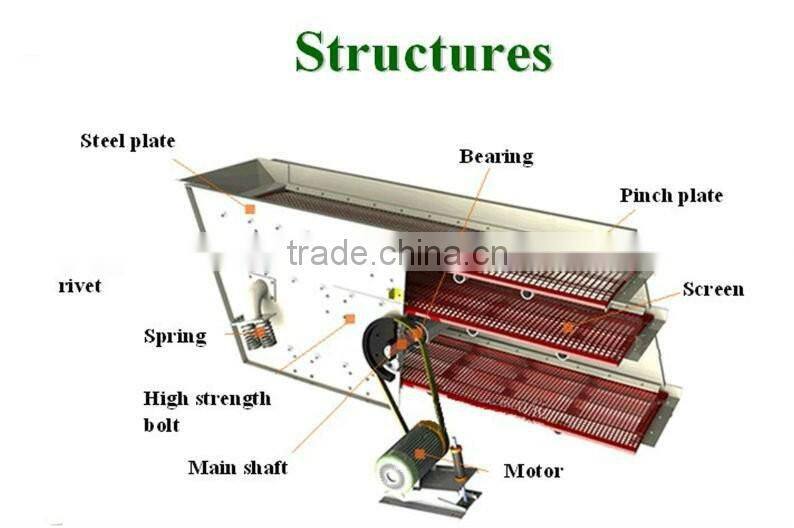

Vibrating Screening Feeder is mainly composed of a vibration machine frame, vibration motor, spring, bearing seat and a wear resistant lining board.
Smooth vibration,
Reliable operation,
Long service life,
Low noise,
Low power consumption,
Easy to adjust,
Simple structure,
Easy to install,
Light weight,
Small volume,
Simple maintenance.

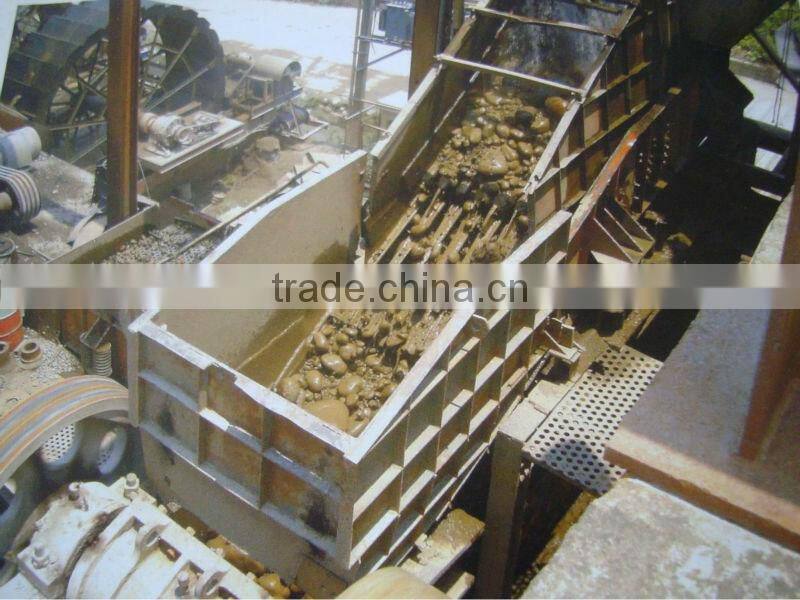

Working Principle of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:
Technical Parameter of 120-560t/h Vibrating Grizzly Feeder or Feeding Machine Used In Mining Industry:
| Model | Max. feeding (mm) | Pocessing capacity(t/h) | Motor power(kw) | Obliquity of material trough | Total weight (kg) | Trough size (mm) | Dimensions (L*W*H)(mm) |
| GZD-850*3000 | 400 | 120 | 3.7*2 | 5 | 3607 | 850*3000 | 3110*1800*1600 |
| GZD-1000*3600 | 500 | 150 | 5.5*2 | 5 | 3895 | 1000*3600 | 3850*1950*1630 |
| GZD-1100*4200 | 580 | 240 | 5.5*2 | 5 | 4170 | 1100*4200 | 4400*2050*1660 |
| GZD-1100*4900 | 580 | 280 | 7.5*2 | 5 | 4520 | 4900*1100 | 5200*2050*1700 |
| GZD-1300*4900 | 650 | 450 | 11*2 | 5 | 5200 | 4900*1300 | 5200*2350*1750 |
| ZSW-380*95 | 500 | 96-160 | 11 | 0 | 4082 | 3800*960 | 3920*1640*1320 |
| ZSW-490*110 | 630 | 120-280 | 15 | 0 | 5352 | 4900*1100 | 4980*1830*1320 |
| ZSW-600*130 | 750 | 400-560 | 22 | 0 | 7800 | 6000*1300 | 6082*2580*2083 |

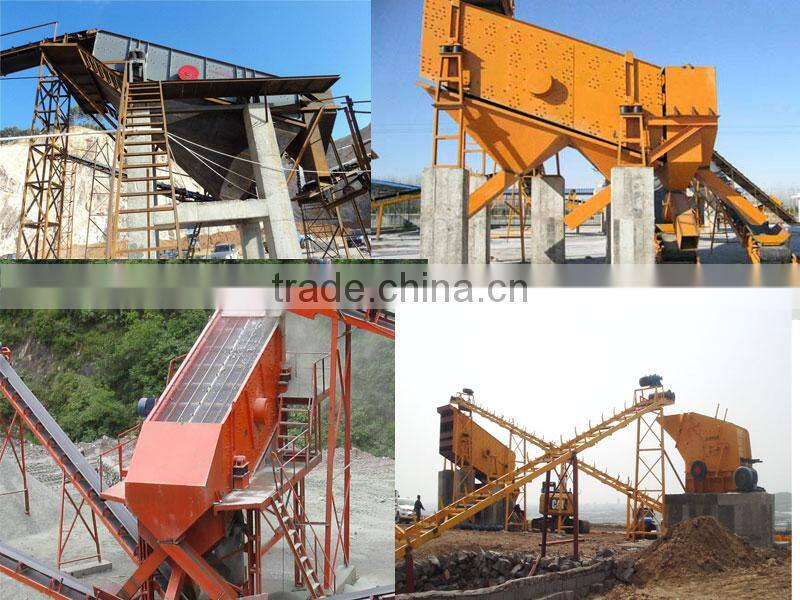

Vibrating Feeder Used In the Sand Making Line:
