Dust Cataher Manufacturer
- Shanghai Tianjin Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other, Mine dust cataher | |
| Efficiency | 6900-314000m3/h | Place of Origin | Henan, China | |
| Brand Name | GMG | Model Number | 32-3 | |
| Weight | 2.880kg | Certification | ISO CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |

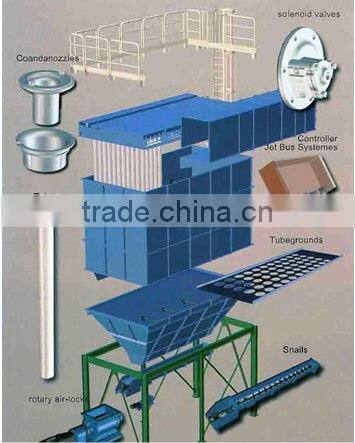

Product Description
Specifications
Dust Catcher1.Manufacturer with 65 years' experiences
2.High dust elimination efficiency
3.Full automation.
Advantageous characteristics:
1. It has modern design, it uses lower gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.
2. It uses long filter bags and it has smaller floor area in case of equal processing capacity, therefore it is more convenient for reconstruction of old factories.
3. It uses separate chamber offfline dust clearing with high efficiency and few secondary flour dust attachment, in the meantime, it can effectively reduce the equipment energy consumption, the fatigue level of filter bag and pulse valve is correspondingly reduced and the service life of filter bag and vane is prolonged by several times and equipement operation cost is remarkably reduced.
4. The overhaul and bag replacement can be carried out for separate chambers under the condition that system blower and system run normally.
5. The filter bag inlet used spring tension structure, it is convenient to disassemble & assemble and it has good tightness.
6. The case uses airtightness design and it carries out leak detecting with oil and reduces air leak to the maximum extent.
7. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.
Working principle
Making use of the pressure of gas which inside and outside of dust bags, the gas through the bag into cleaning gas, and dust left on the bag surface. With the increase of dust on the bag surface, the filtration resistance will increase, according to the timecontrolled procedures injection system will make use of certain pressure and flow of air to clear the surface dust of each bag.
Technical parameters
Model | Capacity of wind (m3/h) | Filter wind speed m/min | Filter area (m2) | No. of filter-bags (piece) | Resistance (Pa) | Inlet dust concentration(g/m3) | Thermal insulation area (m2) | Weight (kg) |
32-3 | 6900 | 1.2-2.0 | 93 | 96 | 1470-1770 | <1000 | 26.5 | 2.880 |
32-4 | 8930 | 124 | 128 | 34 | 4.080 | |||
32-5 | 11160 | 155 | 160 | 41 | 5.280 | |||
32-6 | 13390 | 186 | 192 | 48.5 | 6.480 | |||
64-4 | 17800 | 248 | 256 | 70 | 7.280 | |||
64-5 | 22300 | 310 | 320 | 94 | 9.960 | |||
64-6 | 26700 | 372 | 384 | 118 | 11.640 | |||
64-7 | 31200 | 434 | 448 | 142 | 13.320 | |||
64-8 | 35700 | 496 | 512 | 166 | 15.000 | |||
96-4 | 26800 | 372 | 384 | <1300 | 110 | 10452 | ||
96-5 | 33400 | 465 | 480 | 120 | 12120 | |||
96-6 | 40100 | 557 | 576 | 130 | 14880 | |||
96-7 | 46800 | 650 | 672 | 140 | 16920 | |||
96-8 | 53510 | 744 | 768 | 150 | 19810 | |||
96-9 | 60100 | 836 | 864 | 160 | 21240 | |||
96-2×5 | 66900 | 929 | 960 | 175 | 25200 | |||
96-2×6 | 80700 | 1121 | 1152 | 210 | 30240 | |||
96-2×7 | 94100 | 1308 | 1344 | 245 | 35280 | |||
96-2×8 | 107600 | 1494 | 1536 | 280 | 40320 | |||
96-2×9 | 121000 | 1681 | 1728 | 315 | 45360 | |||
96-2×10 | 134500 | 1868 | 1920 | 350 | 50400 | |||
128-6 | 67300 | 935 | 768 | 125 | 24120 | |||
128-9 | 100900 | 1402 | 1152 | 196 | 31680 | |||
128-10 | 112100 | 1558 | 1280 | 205 | 34680 | |||
128-2×6 | 34600 | 1869 | 1536 | 323 | 43920 | |||
128-2×7 | 15700 | 2181 | 1792 | 247 | 52680 | |||
128-2×8 | 179400 | 2492 | 2084 | 262 | 60000 | |||
128-2×9 | 201900 | 2804 | 2304 | 277 | 66480 | |||
128-2×10 | 224300 | 3115 | 2561 | 292 | 72000 | |||
128-2×11 | 247600 | 3427 | 2856 | 307 | 78480 | |||
128-2×12 | 269100 | 3728 | 3072 | 322 | 96400 | |||
128-2×13 | 291600 | 4050 | 3328 | 337 | 93600 | |||
128-2×14 | 314000 | 4361 | 3584 | 252 | 100800 |
