TH Series 35-185 m /h Bucket Elevator for Cement Plant

Specifications

Brief Description of bucket elevator:

The bucket elevator is straight-through processing type, and applies to upward transporting incompact materials like powder, grain, and small particles, which is widely used in many industries. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure. It has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. It's sutiale to convey powder, grain and small lump materials with stacking density less than1.5t/m3 and temperature no more than 250 Celsius degrees.

Working principle of bucket elevator:

The bucket elevator with transmission usually adopts rubber band which is equipped in the drive drum top or down. Not like other conveyor equipment for example, Conveyor Belt which doesn't adopt enclosure space totally outdoor work Bucket Elevators generally equipment with a classis to prevent the dust in it.

Features of bucket elevator:

1. Small driving power. Flow-infeeding, induction discharging and large-volume hopper are adopted to avoid materialreturning.
2. Large lifting scope. It cannot only lift general power and fine granular materials, with good sealingperformance and little pollution.
3. Excellent runningreliability. Advanced design and processing method ensure the runningreliability of the complete machine.
4. Long service life.The design of this machine ensures that the materials is seldom scattered whilefeeding and discharging, which reduces the mechanical wearing.

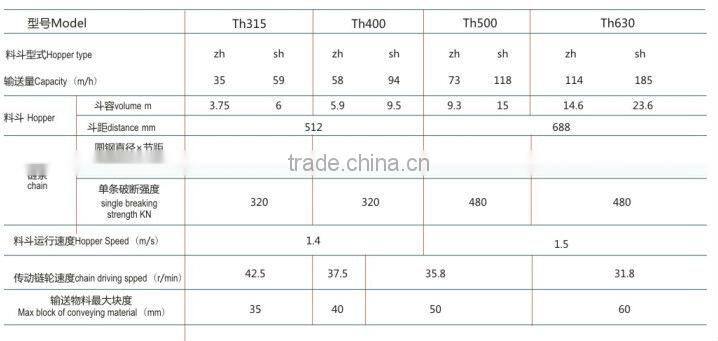

Main technical parameters of bucket elevator:
