Mine Factory for Powder Packing Machine
- Shanghai Tianjin Qingdao
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Bags | Packaging Material | Other, cement and other powder | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | As customer requirement | Place of Origin | Henan, China | |
| Brand Name | GMG | Certification | ISO CE |
Product Description
Specifications
Cement Packing Machine:1.for packing cement and other powder.
2.Packing speed: 2~4bags/min
Cement packer is the commonly used packing equipment in cement industry. Cement packer is applicable for cement quantitative semi-automatically packing into valve port bags.
Adopting computer scale measurement, Rotary Type Cement Packing Machine is characterized of high measuring precision and stable performance. Besides five types of packing machine predesigned: 2-nozzles, 4-nozzles, 6-nozzles, 8-nozzles etc, we also offer design and remodel service by client requirement of special type packing machine.
Basic Performance Parameter of BX Series Rotary Cement Packaing Machine | |||||||
No. | Name of parameters | Unit | Type | ||||
BX-6 | BX-8 | BX-10 | BX-12 | ||||
Value | |||||||
1 | Discharging spouts |
| 6 | 8 | 10 | 12 | |
2 | Packaging capacity | t/h | 60-80 | 80-110 | 110-130 | 120-150 | |
3 |
Weighing accuracy | Weight of single bag | Kg | 50 ±0.5 | |||
Qualification rate of bag weight | % | ≥95 | |||||
20 Total weight of 20bags | kg | ≥1000 | |||||
4 | Outside diameter of rotary cylinder | mm | Φ1560 | Φ1560 | Φ1750 | Φ2090 | |
5 | Max. rotary diameter | mm | Φ2200 | Φ2400 | Φ2400 | Φ2740 | |
6 | Height from discharging spout to ground | mm | 1350 | ||||
7 | Rotation speed of rotary cylinder | r/min | 0.45-4.5 | ||||
8 | Rotation direction | Top view | Clockwise | ||||
9 | Power voltage | V | -380±10% | ||||
10 | Motor of discharging mechanism power unit | Type | Y112M-4 | ||||
Power kw | 4x6=24 | 4x8=32 | 4x10=10 | 4x12=48 | |||
Rotation speed | 1440 | ||||||
11 | Driving of rotary cylinder | Motor with variable frequency speed control | Type | ||||
Power kw | |||||||
Rotation speed r/min | |||||||
Planetary cycloidal-pin gear speed reducer | Type | ||||||
Actual speed ratio | |||||||
12 | Air quantity of dust collection | m3/h | 15000 | 18000 | |||
13 | Weight of entire machine | t | 5 | 6.5 | 7.2 | 8.8 | |

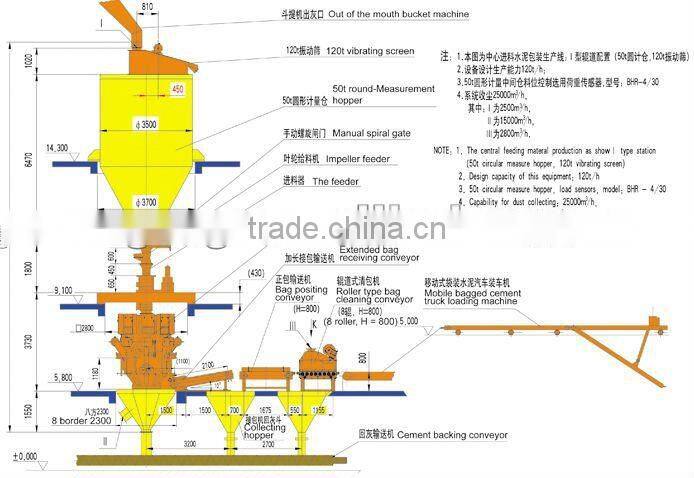

Working principle:
Materials are fed into butter hopper through pneumatic butterfly valve and exhaust air uniformly. Then materials are filled into valve bags by feeding screw with frequency control. Control feeding amount by controlling screw and rotate speed. When the bag is full, bag clamping unit opens by control system. By the pneumatic bag chair, bags are turned over to the convey belt and conveyed away. During all the progress, the system returns back to primary position and start the next packing.
