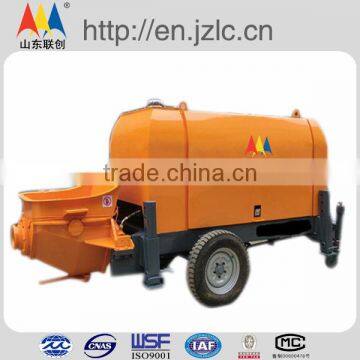

Hot 2013! HBT60.13.100RS Concrete Pump

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Diesel
Place of Origin	Shandong, China	Brand Name	Lianchuang
Model Number	HBT60.13.100RS	Power(W)	100kw
Weight	4700kg	Dimension(LWH)	450021602700mm
Certification	ISO

Product Description

Specifications

1.hydraulic integration design
2.automatically control
3.high efficiency concrete pump

Main motor adopts German Deutz and Volvo diesel engine; central hydraulic pump and valve adopts Germany Rexroth or Hawe products; pipe joint and hydraulic tubing adopt products imported from Germany and Italy; piston head adopts original products imported from Germany and implements global purchasing. Electric control of operation and control center adopts Siemens technology, improving integrating stability and reliability of pump; self-tracking of pumping speed, as the main body starts, just pressing send button, the rotate speed will be automatically tracked according to the instruction. If the work need to be increased as the normal work is over 1,000r/min, just pressing the button, the main body will change upon the instruction. The pump has three operation structures, which can be operated in the machine or remote control. If there is accident, the hand standby accelerator device is available.

Hydraulic ram lifting changes the traditional ram lifting operated by jack (it can be selected by clients). In terms of some searing parts, such as wearable plate and spectacle plate, our R&D personnel research with Tsinghua University on friction and wearing. The product service life is about 30,000m3, higher than international famous brand. Through inspection by Shandong Institute of Supervision & Inspection on Product Quality and filed identification of national high-level experts, each performance index is better than enterprise standard and HBT trailer concrete pump reaches domestic advanced level.

Item	Unit	Parameter	Item	Unit	Parameter
Theoretic conveying capacity low pressure	m3/h	/	Motor of diesel engine	Kw	118
Theoretic conveying capacity high pressure	m3/h	68	Hydraulic valve block	Rexroth/Hawe	German origin
Theoretic concrete output pressure low pressure	MPa	/	Hydraulic oil tank capacity	1	600
Theoretic concrete output pressure high pressure	MPa	11.3	Charge height	mm	1,300
Hydraulic system pressure	MPa	32	Bucket capacity	m3	0.7
Rotate speed	r/min	2,300	Machine weight	Kg	6,180
High and low pressure exchange		No	Concrete slump	mm	120-230
Master cylinder diameter/pole diameter/travel	mm	ø120/ø80/1,800	Theoretic max vertical conveying height	m	200
Conveying cylinder diameter/travel	mm	*ø2001,800**
Main oil pump A11VL0190	ml/r	190	Reversing times	time/min	21
