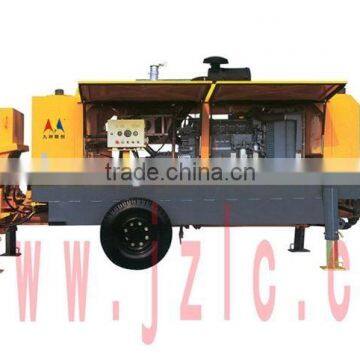

Concrete pumps Trailer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		Place of Origin	Shandong, China
Brand Name	Lianchuang		Model Number	HBT--60C

Product Description

description:

It is new generation concrete pump introduced domestic and foreign advanced technologies.

Main oil pump and valve adopts Germany Rexroth or Hawe products, with long service life, stable performance and long-time use.

Pipe joint and hydraulic tubing adopt products imported from Germany and Italy, with no leakage.

Hydraulic ram lifting changes the traditional ram lifting operated by jack (it can be selected by clients). In terms of some searing parts, such as wearable plate and spectacle plate, our R&D personnel research with Tsinghua University on friction and wearing. The product service life is about 30,000m3, higher than international famous brand.

Main electric system components adopts Switzerland ABB soft starter, effectively improving service life of high hydraulic pump and other components, stable startup.

Electrical control system components adopts original Siemens programmable controller (PLC), easy to operate, realizing remote control.

Through inspection by Shandong Institute of Supervision & Inspection on Product Quality and filed identification of national high-level experts, each performance index is better than enterprise standard and HBT trailer concrete pump reaches domestic advanced level.

Item	Unit	Parameter	Item	Unit	Parameter
Theoretic conveying capacity low pressure	m3/h	80	Main motor power	Kw	90
Theoretic conveying capacity high pressure	m3/h	58	Power supply voltage/frequency	V/Hz	380/50
Theoretic concrete output pressure low pressure	MPa	7.3	Hydraulic oil tank capacity	1	600
Theoretic concrete output pressure high pressure	MPa	12.3	Charge height	mm	1,300
Hydraulic system pressure	MPa	32	Bucket capacity	m3	0.7
Rotate speed	r/min	1,480	Machine weight	Kg	6,180
High and low pressure exchange		Yes	Concrete slump	mm	120-230
Master cylinder diameter/pole diameter/travel	mm	ø125/ø80/1,800	Theoretic max vertical height	m	250
Conveying cylinder diameter/travel	mm	ø200/1,800	Reversing times	time/min	25
Main oil pump A11VLO260	ml/r	260
