Elevator Bucket

FOB Price

US$ 0.5 - 10 / Piece

50 Pieces(Min. Order)

Port Tianjin Shanghai Ningbo Qingdao Dalian
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, pc material, Plastic	Certification	CE / EU
Feature	Stocked	Place of Origin	Henan, China
Brand Name	Reafine

Product Description

Specifications

elevator bucket
1. Suitable for high-speed centrifugal discharge;
2. Recommended minimum bucket spacing.

elevator bucket

D bucket features:

It’s a kind of medium deep pattern bucket.In most cases,buckets stopped in use are caused y the heavy abrasion on the bucket mouth and the tearing at the bucket mouth or the bolt fiiting due to collision in the running.

Our D bucket design will relieve such situation in use and extend the lift span of the bucket. The unique design has made an appropriate thickness reduction on the bottom which requires a lower intensity, and the saved raw material will be used to increase the thickness of the bucket mouth and the area around bolt holes.

In this way, the buckets has higher intensity and can become more wear-resistant without increasing the total weight. This design has been approved by test and widly used by leading conveying equipment manufacturers in North America.

Usage:

1. Suitable for high-speed centrifugal discharge;

2. Recommended minimum bucket spacing: width of the bucket projection “B”+25mm, which can be appropriately reduced according to elevator capacity requirement;

3. Recommended elevator velocity ≤ 2.5m/s ;

4. Recommend using “Z-Y+10%” as usable capacity for engineering purpose.

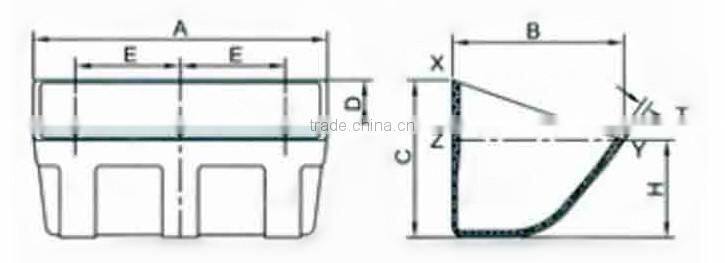

Technical Parameter:

Model	A(mm)	B (mm)	C (mm)	D (mm)	E (mm)	No. of holes	Dia. of holes	Capacity(L)(X-Y)	Capacity(L)(Z-Y)+10%	Capacity(L)(Z-Y)
D4*3	107	81	75	22	50/63.5	2	7/6.5	0.32	0.28	0.25
D5*4	133	113	106	32	60/81	2	7/6.5	0.85	0.65	0.59
D6*4	159	108	103	32	90/111.1	2	7/6.5	0.87	0.72	0.65
D7*4	184	108	103	32	120/68.3	2/3	9/6.5	1.04	0.83	0.75
D6*5	160	140	130	40/48	90/111.1	2	9/6.5	1.48	1.21	1.10
D7*5	186	140	130	40/48	120/68.3	2/3	9/6.5	1.73	1.32	1.20
D8*5	211	140	130	40/48	120/77.8	2/3	9/6.5	1.92	1.55	1.41
D9*5	237	140	130	40/48	85/92.1	3	9/6.5	2.41	1.93	1.75
D11*5	289	140	130	45/48	100/76.2	3/4	9/6.5	2.75	2.21	2.01
D9*6	237	168	154	40/50	85/92.1	3	9/6.5	3.23	2.57	2.34
D10*6	262	168	154	45/50	90/104.8	3	9/6.5	3.62	2.84	2.58
D11*6	287	168	154	45/50	100/72.6	3/4	9/6.5	4.01	3.11	2.83
D12*6	313	168	154	45/50	85/85.7	4	9/6.5	4.44	3.48	3.16
D13*6	338	168	154	45/50	85/92	4	9/6.5	4.74	3.78	3.44
D14*6	368	168	154	50	95/76.2	4/5	9/6.5	5.08	4.15	3.77
D9*6-1/2	230	180	180	45	75	3	9	3.67	2.78	2.53
D11*6 -1/2	280	180	180	45	100	3	9	4.62	3.52	3.20
D10*7	269	197	180	50	90/104.8	3	9/8	4.83	4.07	3.70
D11*7	287	197	180	45/50	100/76.2	3/4	9/8	5.39	4.35	3.95
