Home > Products > Fine Seed Cleaner > Cassia Seed Cleaning Machine / Cereal Seed Cleaner
Cassia Seed Cleaning Machine / Cereal Seed Cleaner
- xingang
 - T/T Credit Card

You May Like
-


Quinoa Seed Cleaner With High Cost Performance (2016 the Hottest)
 -


Field Peas Seed Cleaner With High Cost Performance (2016 the Hottest)
 -


Canola Seed Cleaner With High Cost Performance (2016 the Hottest)
 -


Oats Seed Cleaner With High Cost Performance (2016 the Hottest)
 -


Barley Seed Cleaner With High Cost Performance (2016 the Hottest)
 -


Complete Seed Processing Plant

Product Details
| Type | Sorghum Seed Cleaner | Use | cleaning for canola ,seed,grain,bean | |
| Certification | SGS ISO9001-2008 USV SONCAP | Place of Origin | Hebei, China | |
| Brand Name | SYNMEC | Model Number | 5X-5 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

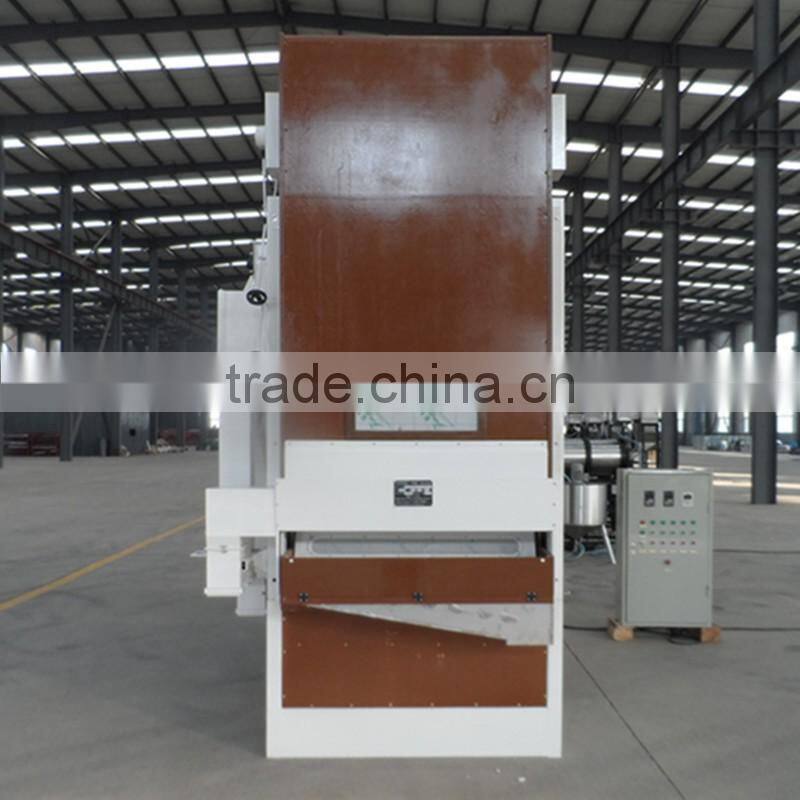

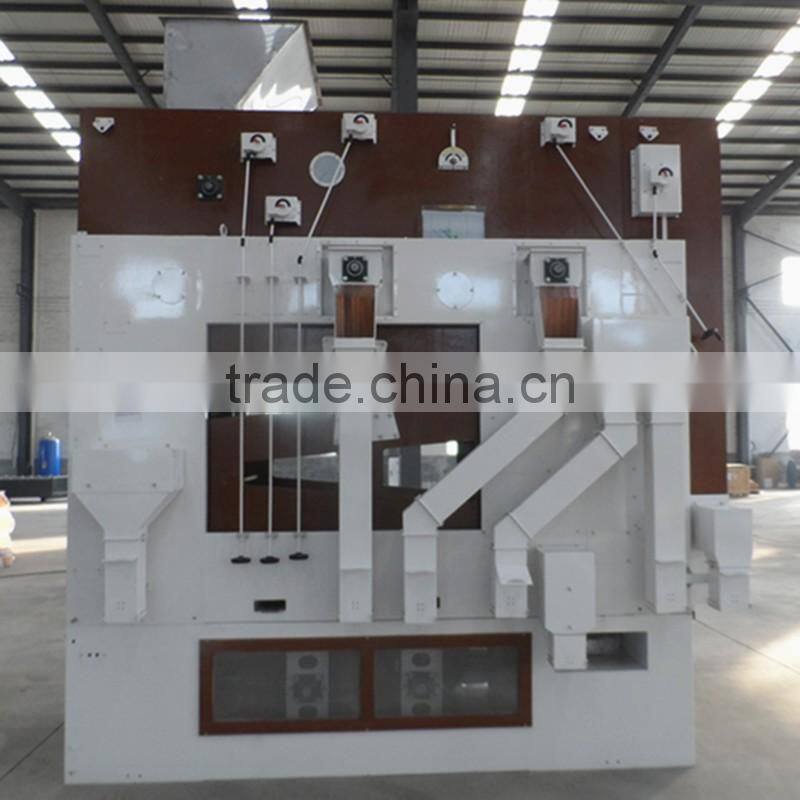

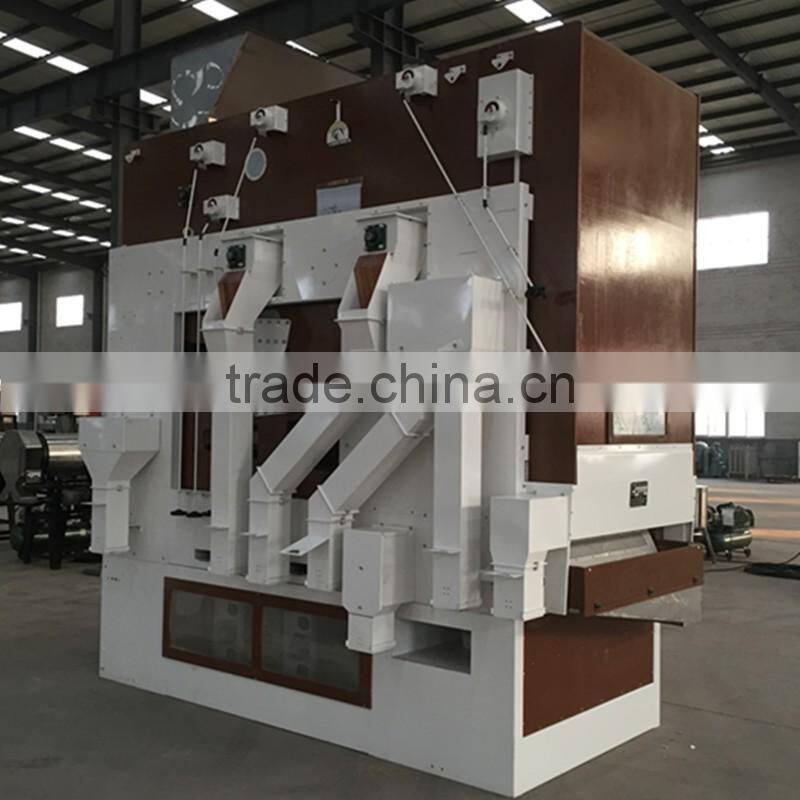

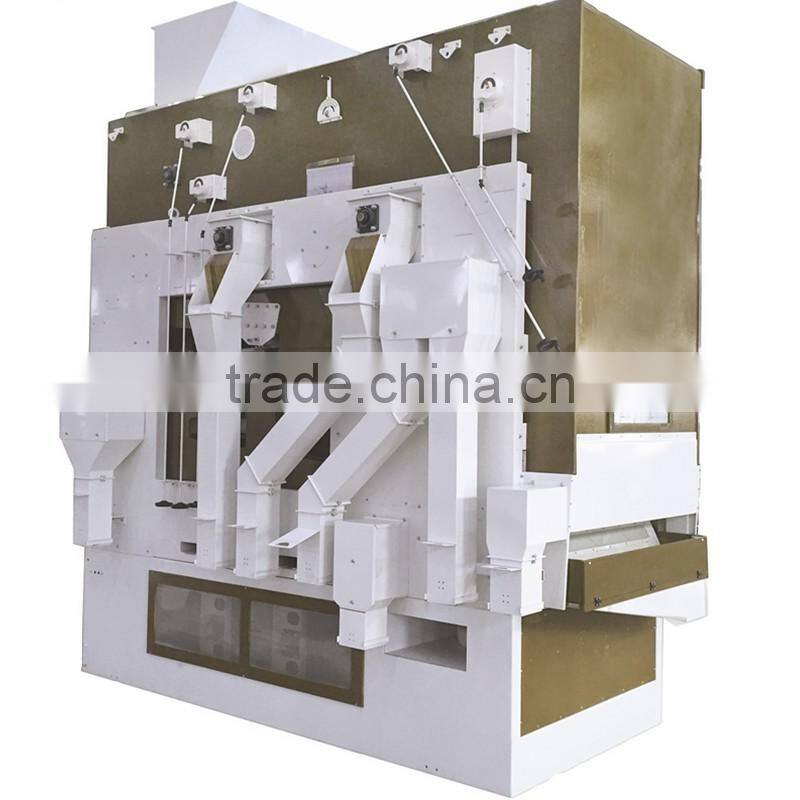

5X-5 Cassia seed cleaning machine / cereal seed cleaner
1. RANGE OF USE for Cassia seed cleaning machine / cereal seed cleaner
The 5X -5 sesame seed cleaener is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre- and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X-5 sesame seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
l Easy and quick operation and screen changing
l The screen boxes are made of wear resistant plywood, which is approved for food
l Screen cleaning with special rubber balls
l Built-in light.
l Durable surface of the machine owing to high-quality powder lacquering
2. SPECIFICATION of Cassia seed cleaning machine / cereal seed cleaner
Model  | 5X-5  | 5X-12  |
Dimension(L×W×H)  | 3200×1920×3600 mm  | 3790×1940×4060 mm  |
Overall weight  | 3250 kg  | 3600 kg  |
Rated capacity  | 5 t/h  | 12 t/h  |
Overall air volume  | 8200 m3  | 12520 m3  |
External air blower  | 4-72N0-6A, 7.5 kW  | 4-79N0-6A, 11 kW  |
Vibration sieve motor(gear motor)  | 2.2 kW  | 2.2 kW  |
Back lifting system motor  | 3.0 kW  | 3.0 kW  |
Feeding motor  | 1.5 kW  | 1.5 kW  |
Total Power  | 6.7 kW  | 6.7 kW  |
Air Blower Type  | centrifuge air blower  | |
Top air blower Rotary speed  | 4-79NO6A,1400 r/min  | |
Back lifting air blower Rotary speed  | 100~1000 r/min  | |
Screen Type  | piercing screen  | |
Screen Dimension (L×W)  | 800×1250 mm  | |
Frequency  | 300(80~400) times/min  | |
Amplitude  | 30 mm  | |
Layers and number  | 4 layers,7 pieces  | 5 layers,15 pieces  |
Screen number and type  | ||
level 1  | 1 piece round hole  | 3 pieces slot hole  |
level 2  | 2 pieces slot hole  | 3 pieces slot hole  |
level 3  | 2 pieces slot hole  | 3 pieces slot hole  |
level 4  | 2 pieces slot hole  | 3 pieces slot hole  |
level 5  | null  | 3 pieces slot hole  |

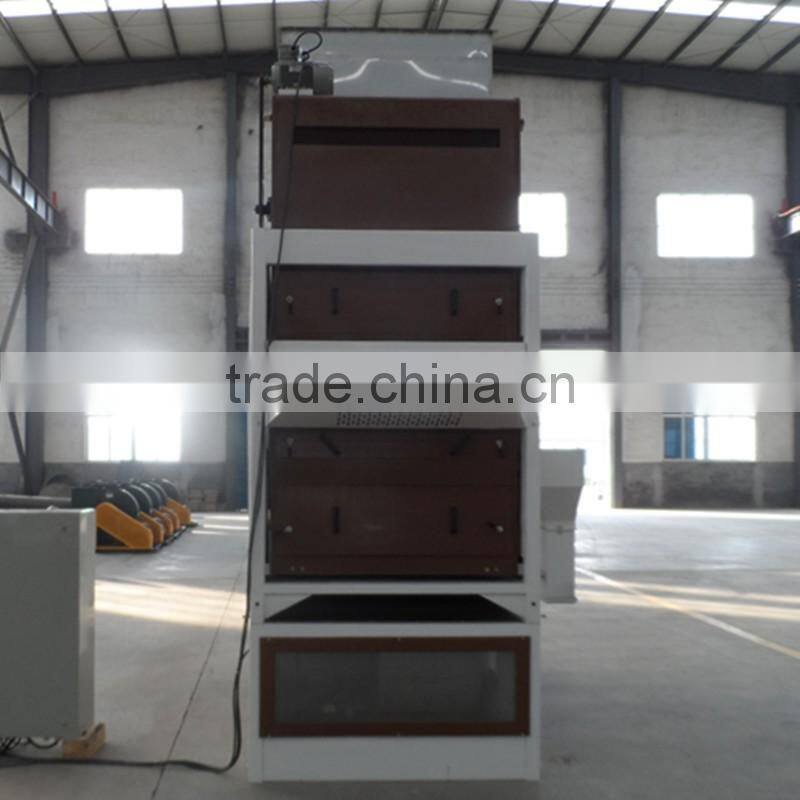

You need Destoner if your grain have stone problem:
You need Gravity separator if your materials have prtially eaten, immature, insect damaged seed problem:
You may would like seed / grian cleaning plant :
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
Please contract me if you are interesting in any machines:
