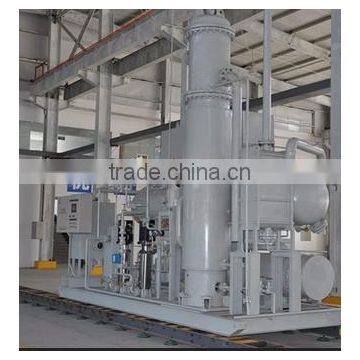

High-quality solar ice maker for air condition refrigeration

Place of Origin	Shandong, China		Brand Name	China
Model Number	TRX-3-35.0KW		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1,Energy-efficient.
2,Convenient installation.
3.Fewer moving parts, long working life, safe and reliable, energy saving.

Solar&Waste Heat Ice Maker





Solar ice maker is the National patent certificate product.



I.Working Principles



1. Components

     Ammonia absorption refrigeration device comprises generator, absorber, circulation pump, condenser, evaporator, throttle and other components.

2. Material Composition

    Working medium includes ammonia and water, wherein the ammonia as the refrigerant and water as the absorbent.

3. Refrigeration Circulation

   Ammonia refrigerant circulation: concentrated aqueous ammonia solution in the generator is heat by the heating fluid from industrial production or the solar, and separating a certain amount refrigerant steam into the condenser, the refrigerant steam is cooled in the condenser and condensed into liquid; liquid refrigerant enters the evaporator after throttling and depressurization. Liquid refrigerant evaporates in the evaporator and resulting in cooling effect, the refrigerant turns into gas from liquid, and then enter the absorber and is absorbed by dilute solution which comes from the bottom of generator to. Evaporation temperature range can be from 10 °C to -60 °C using ammonia as refrigerant,and one set of unit can be implemented on a plurality of evaporation temperature.

4. Solution Circulation

    The dilute solution from the generator enters absorber through solution heat exchanger after throttling and depressurization .Dilute solution absorbs the refrigerant steam from the evaporator. Concentrated solution is generated in the absorption process, the concentrated solution is pressurized by the circulating pump. The solution is endothermic and heated in heat exchanger, then re-enter the generator, be heated to produce high temperature ammonia steam. And this is the refrigeration circulation.

5. This project needs 1.5 tons of ice per day, solar ice maker works 8 hours per day, hourly ice volume is 187.5 kg , the unit's cooling capacity is 180W * 187.5 = 33750W. Solar power is about 70KW. And we use grooved solar panels, the photothermal conversion efficiency of grooved solar panel is 60% or more, the efficiency is 1000 W / m², and the heat collection is 600 W / m². Solar collector area required to achieve 120 m², installed on the roof or on the open ground.



II.Product Features

1. Solar panels.

We use grooved solar panels, ordinary solar panels is flat heat absorbing surface and the heat convection losse is very large, it is difficult to meet heat utilization requirements for the high temperature range above 150 °C. Grooved solar plate uses non-imaging low magnification condenser, high reflectance reflective material and efficient collector tube, the collector efficiency is high, the working temperature can be up to 150 ~ 200 °C.It is convenient to manufacture, installation and operation and the cost is low.

2. Heat exchanger unit.



Compared to other forms of refrigeration unit, the ammonia absorption refrigeration unit has the following characteristics:



(1) using solar energy as the driving heat source, no pollution;



(2) using ammonia as refrigerant, can get a temperature below 0 °C; lithium bromide units only get a temperature above 0 °C;



(3) the entire unit structure is simple, easy processing and manufacturing;



(4)small vibration, low noise and outdoor installation, thereby reducing the construction cost;



(5) maintenance is simple, easy to operate, easy to manage;



(7) the ammonia is inexpensive, no damaging effects on the ozone layer;

(8) at below -25 degrees refrigeration cases, saving more than 90% energy compared with the same amount of refrigeration compressor.



3.Ice maker



(1) can produce ice quickly, refrigeration temperature can up to -30 degrees;



(2) can make block ice, flake ice, granular ice or tube ice, plate ice, suitable for a variety of purposes;

(3) high efficiency, automatic making ice, manual operation is omitted.





 III. Enterprise Introduction





Taishan Group Co. Ltd is located in Shandong Province, China the foot of world-famous Mountain Tai. The Group covers an area of 300,00 square meters with a staff of 6100 an investment capital of 1200 million RMB. It is a major industrial boiler manufacturer and a A class boiler manufacturer approved by the National Quality Inspection Bureau (NQIB) and the vice chief council member of Industrial Boiler Trade Association (IBTA) of China. IT is recognized among “the 500 largest machinery industrial enterprises”, “the 500 most profitable industrial enterprises” and “the 500 creditable enterprises” in China.



Affiliated to Taishan Group are 10 manufacture companies, two research centers and one import and export Trade Company. Taishan Group is always engaged in designing and developing the products, which are highly-efficient, energy-saving and environment-protecting. The major products are steel boilers, cast-iron boilers, pressure containers, light machinery, engineering plastic and solar-energy facilities, etc.





Taishan Group Taian Huaneng Refrigeration Co., Ltd. is under the command of Taishan Group Co., Ltd., established in 2002. The company hammers at the research and development of the waste heat utilization technology and the design and manufacturing of waste heat cooling (heat pump) equipment. Taishan Group Taian Huaneng Refrigeration Co., Ltd.set up a waste heat refrigeration R & D center with Dalian University of Technology, Shanghai Maritime University and other institutions and research institutes, and has a top team of experts and a strong technical force, we are the recognized experts for the adsorption / absorption heat and refrigeration. Now we have 4 national invention patents and 26 utility model patents, and the fishing boat exhaust refrigerator have been included in the"2008-2009 national key new product projects " and "2009 National resource-saving alternative projects ", the refrigeration technology with independent intellectual property rights has won a major provincial and municipal energy achievement award.



Taishan Group Taian Huaneng Refrigeration Co., Ltd. will always dedicate to the energy-saving and environmental protection.The waste heat refrigeration technology is widely used in the field of trains, cars, ships and other internal combustion engine, the field of solar air-condition, as well as iron and steel, metallurgy, coking, industrial furnace exhaust gas heat recovery, waste heat of power generation, industrial waste heat, heating and power co-generation and other fields, It can supply the cold source for all types of refrigeration, industrial refrigeration and air conditioning (heat pump), and comprehensively improve the energy utilization efficiency, energy conservation,protect the environment,and benefit the Earth and mankind.



Taishan Group is equipped with perfectly advanced CAD system and is acknowledged as “National Model Enterprise for CAD Application” by National Science and Technology Department (NSTD). And has got “ISO9001” Certification.







Taishan Group has been approved by ASME.
