Putzmeister G4
- Ningbo or shanghai
- T/T Credit Card
You May Like
-
GIOTTO Plaster Sprayer
-
Benefitial Mixing Pump RITMO Plastering Machine
-
G5C Mixing Pump
-
JP70-L Cement Plastering Machine Export to New Zealand, Philippines, Malaysia Etc.
-
Newest Model! JP70-P Small Plastering Machine With Compressor Germany
-
Lightest ONLY 35 KGS Smallest JP10 Ready Plaster Pump (220V,50HZ)
Product Details
| Condition | New | Application | Spraying, grouting and pumping | |
| Place of Origin | Zhejiang, China | Brand Name | WallGOE | |
| Model Number | G4 | Dimension(L*W*H) | 1150 x 650 x 1470mm | |
| Weight | 250kgs | Certification | CE, ISO9001:2008 | |
| Warranty | 6months | After-sales Service Provided | Overseas third-party support available |
Product Description

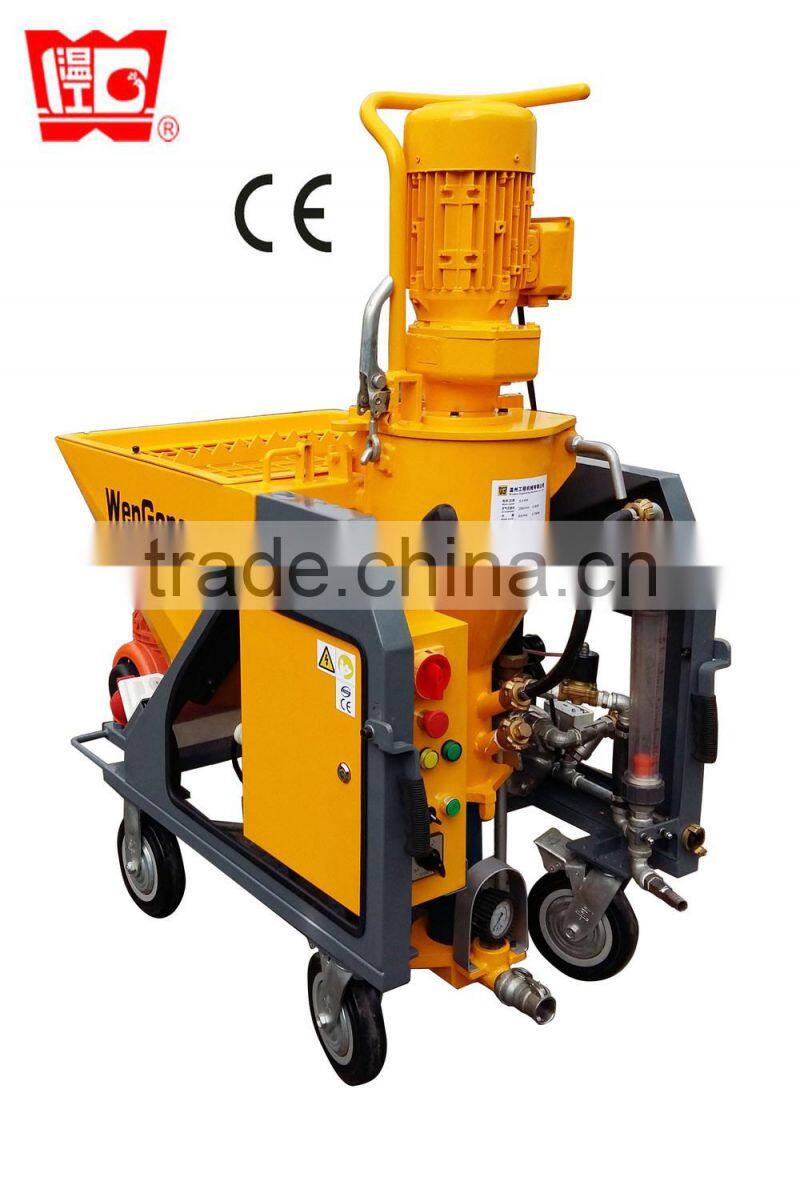

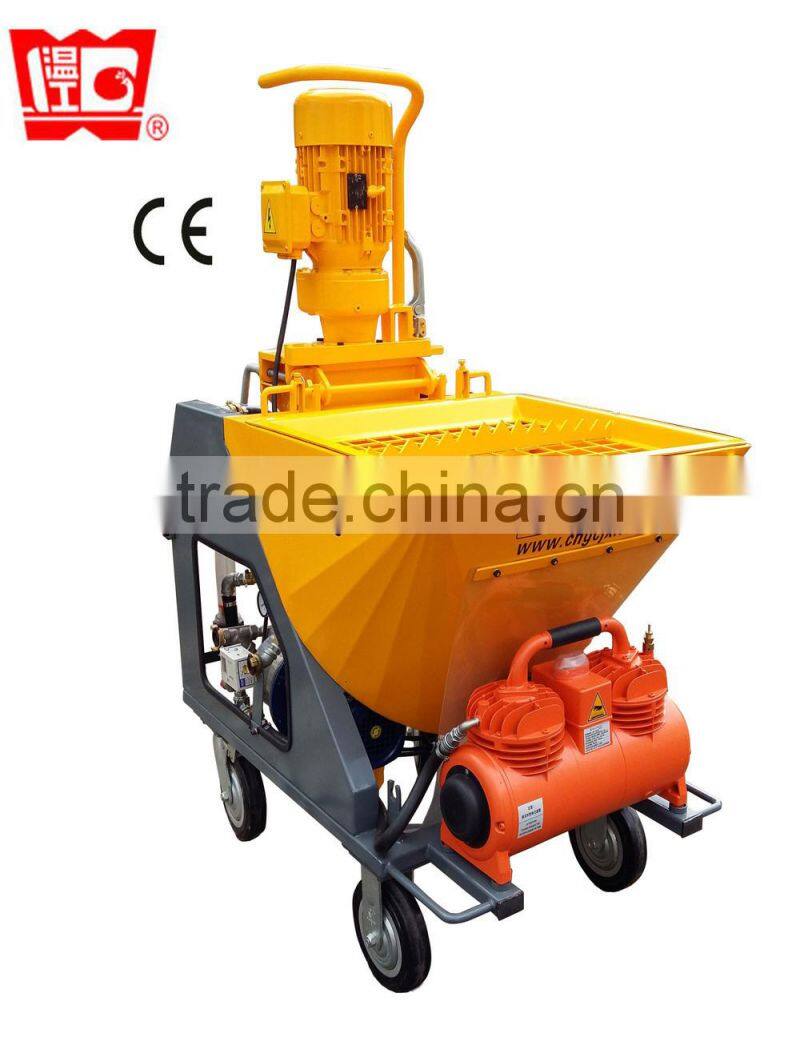

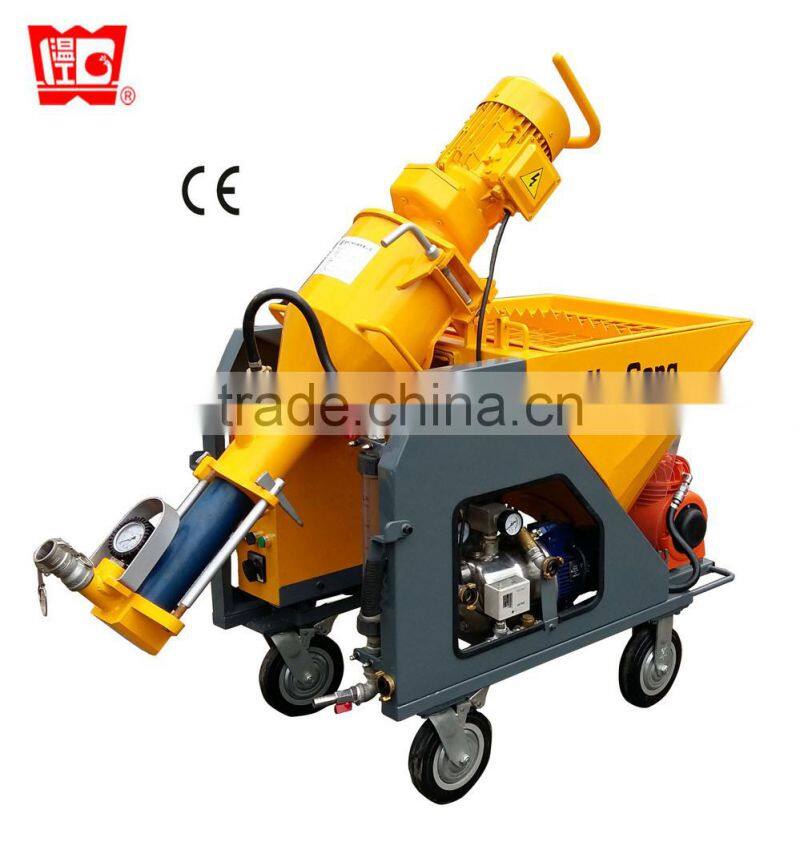

Mortar Plastering Machine
PLASTERING MACHINE FOR READY-MIXED PLASTERS
G5C is same design as PFT G5C and Turbosol GIOTTO.
Automatically add water mixing, pumping, spraying gypsum-based or cement-based ready-mixed mortar, insulation mortar and self-leveling mortar, G5C is fully automatic plastering machine type, it's so compact and suitable for small spaces.
Why you choose it?
1. Simple operation, strong applicability.
2. Configuring efficient motor reducer.
3. Special bending steel, strong pressure.
4. Universal and interchangeable wear parts.
5. Cost-effective, long service life.
Technical parameters
Power Supply | Three phase |
Output capacity | 30l/min |
Plaster motor | 5.5 kW |
Dosing hopper motor | 0.75 kW |
Air compressor | 250l/min 0.9kW |
Water pump | 90l/min 0.75kW |
Loading height | 990mm |
Hopper volume | 110L |
Working pressure | 30bar |
Horizontal delivery distance | 50m |
Vertical delivery distance | 20m |
Dimensions | 1150×650×1470mm |
Net Weight | 250kg |

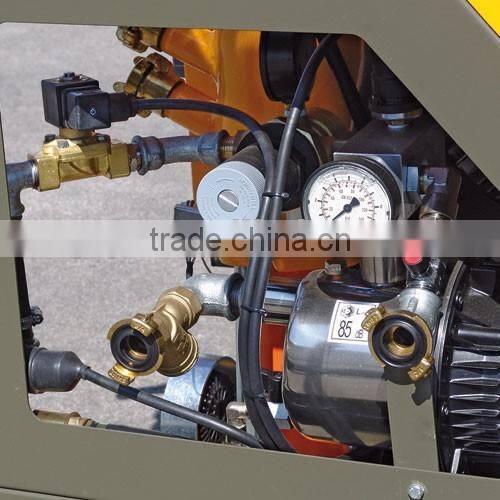

1. G5C cement spray plaster machine is adopted same design as PFT G5C and Turbosol GIOTTO

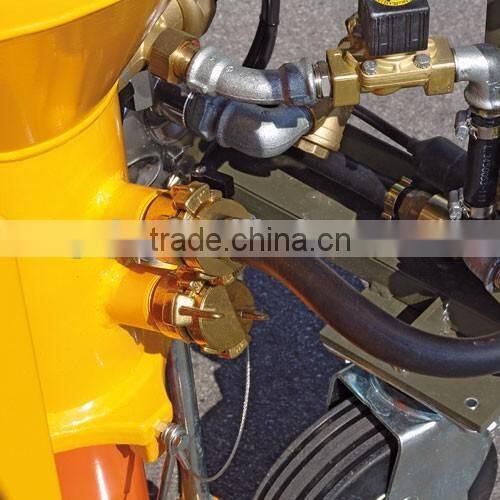

a. Electric water circuit pump

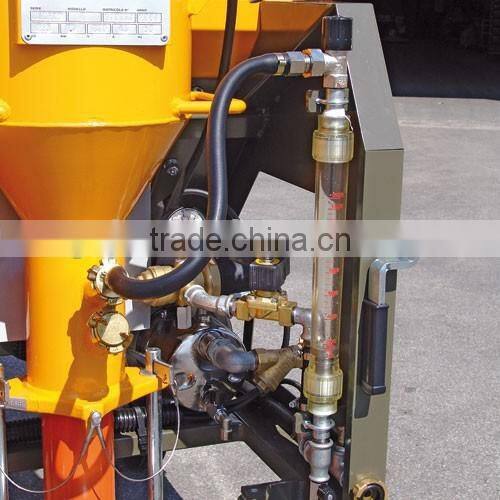

b. Micrometric valve and flowmeter
c. Mixing chamber

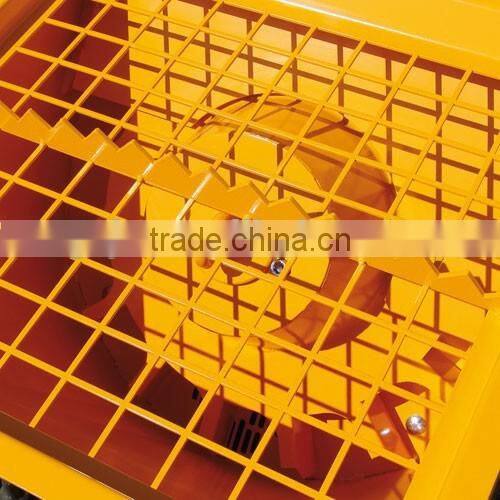

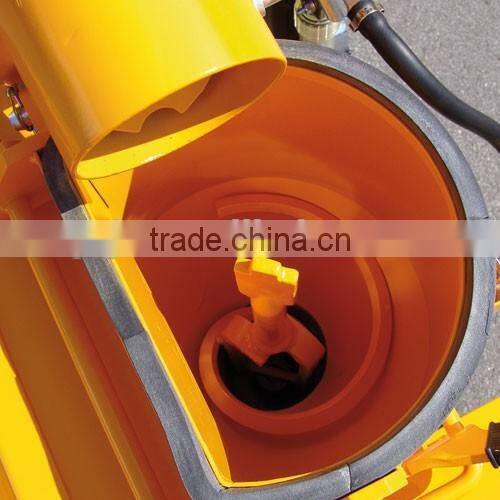

d. Inside inclined hopper can feed pre-mixed mortar, gypsum-based mortar uniformly.
2. The main components of G5C are both imported from Germany, the air compressor and mixing motor are same suppliers as Pft German suppliers.

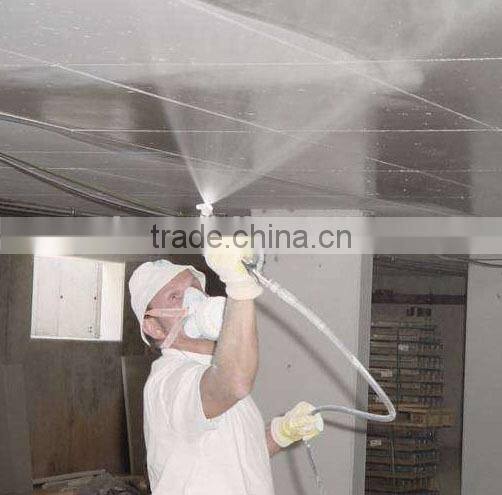

3. G5C is used for spraying, pumping and grouting mortar and gypsum. Can also do self-leveling for floor.
Please contact us
