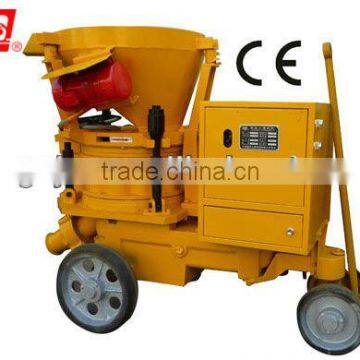

CE, ISO9001:2008 PZ-5 Dry Concrete Spraying Machine
- shanghai/ ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Zhejiang, China | Brand Name | wengong | |
| Model Number | PZ-5 | Power(W) | 5.5KW | |
| Weight | 670KGS | Dimension(L*W*H) | 1300X700X1100mm | |
| Certification | CE,ISO9001:2008 | Warranty | 6MONTHS | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
concrete spraying machine1 CE,ISO9001:2008
2 widely use in slope construction & spraying.
3 height:30m; distance:200m
PZ-5 concrete spraying machine
Model PZ-5 concrete shotcrete machine is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. PS-6 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.
Technical parameter
| Model | PZ-5 |
| Working capacity | 5-5.5m3/h |
| Working air pressure | 0.2-0.4Mpa |
| Air consumption | 7-8m3/h |
| Max transport distance | 200m |
| Applicable water cement ratio | 0.4-0.45 |
| Max diameter of material | 20mm |
| Motor rotational speed | 960r/min |
| Engine power | 5.5kw |
| Feeding height | 1.1m |
| Net Weight | 670kg |
| Dimension | 1300×900×1100mm |
1. be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects.
