380V/220V Cement Grout Pump for Sale
- NINGBO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Zhejiang, China | Brand Name | Wengong | |
| Model Number | 2UB5 | Power(W) | 5.5kw | |
| Weight | 550kg | Dimension(L*W*H) | 1350x1080x1080mm | |
| Certification | CE | Warranty | ISO9001:2008; CE | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
cement grout pump for sale>German technology, make 15years
>two pistons&ball valves,pressure:4.5Mpa
>Max pump height:10-80m

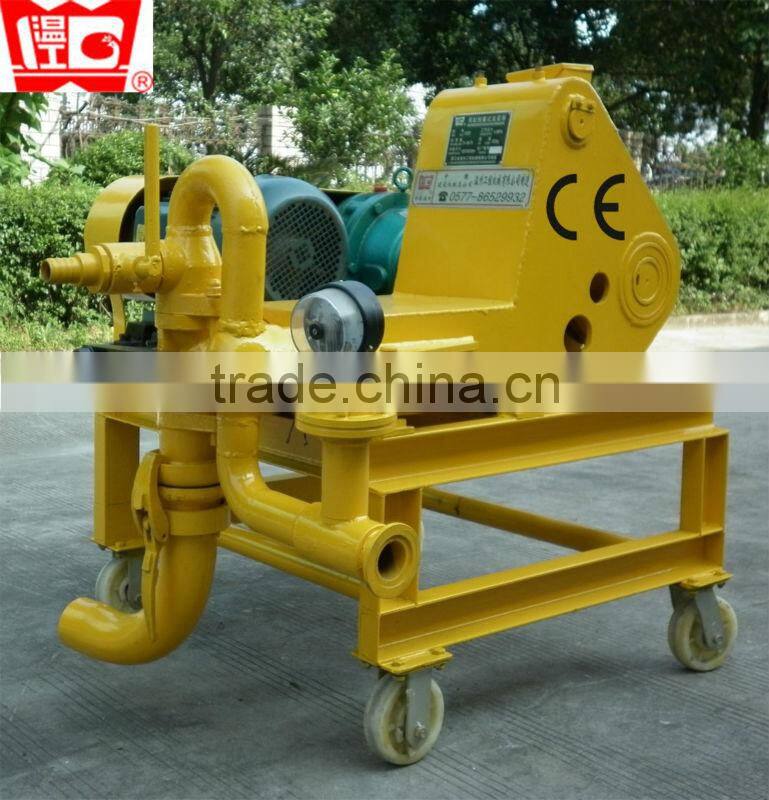

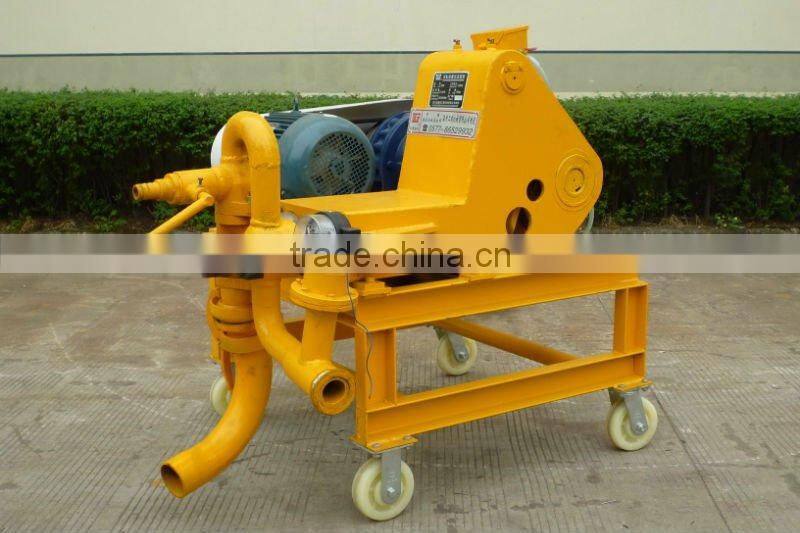

Cement grout pump for sale
2UB5 Dobule piston grouting pump, as a new mortar pump using two cylinders working alternatively and introducing into the world leading technology, is characterized in its small impulse, high pressure, high lift, large pump delivery, rational structure, flexible operation and good spraying and grouting effects, etc.
The pump, as one of the most practical high efficient grouting and spraying machine, is used for the anchor bolt grouting, grouting and spray supporting in highway, bridge, tunnel, culvert, subway, water conservancy and underground projects, with high pressure, long horizontal and vertical conveying distance and balanced work.
Technical parameters
Model | — | UB3 | 2UB5 |
Supply power | — | 440V 50Hz | 400V 50Hz |
Motor power | kw | 4 | 5.5 |
Piston quantity | piece | 1 | 2 |
Maximum output | L/min | 50 | 83 |
Delivery pressure | Mpa | 3 | 4.5 |
Horizontal delivery distance | m | 80 | 300 |
Vertical delivery distance | m | 40 | 80 |
Feeding hose diameter | mm | 64 | 89 |
Discharging hose diameter | mm | 38 | 51 |
Net weight | kg | 250 | 550 |
Dimension (L×W×H) | mm | 1033×474×940 | 1350×1080×1080 |

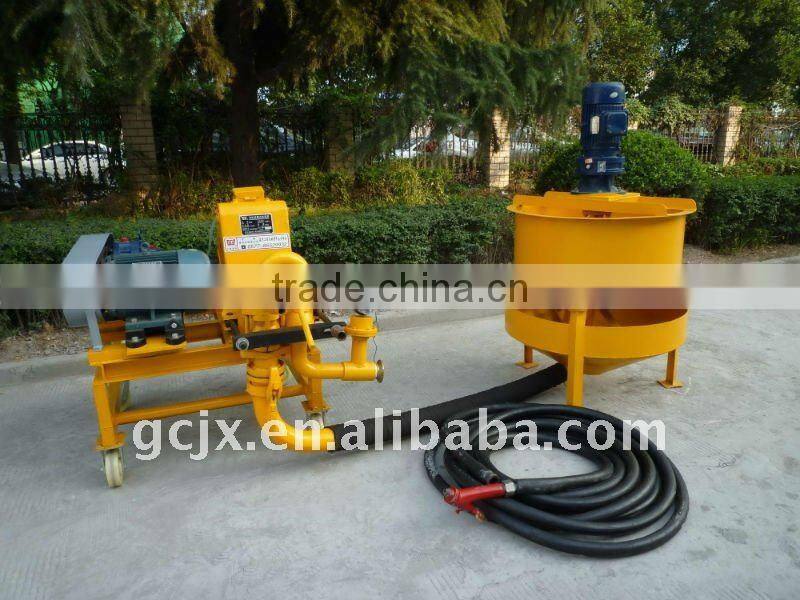

You should order mortar mixer and feeding hopper for matching 2UB5 mortar pump working. Or you can use it togther with SJC series repeated mixing mortar mixer directly.
